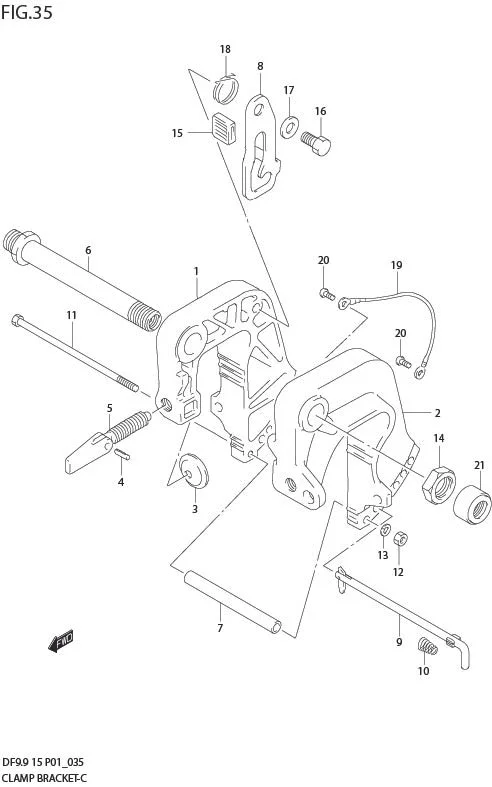

FIG 35 CLAMP BRACKET

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	41111-93E01-0EP	BRACKET, CLAMP STBD (BLACK)	1	-
2	41121-89E53-0EP SUB: 41121-89E52-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp1.411.000
3	41213-94J01-000 SUB: 41213-98100-000	PLATE, CLAMP	2	Rp38.000
4	09205M06016-000 SUB: 09205-06007-000	PIN (6X27)	2	Rp4.500
5	41210-89E11-000 SUB: 41210-89E00-000	SCREW, CLAMP	2	Rp307.500	OPT
6-1	41130-94J00-000	SHAFT, CLAMP BRKT	1	Rp467.000
6-2	41130-93E00-000	SHAFT, CLAMP BRKT	1	Rp359.000	DF15R
7	09180-06163-000	SPACER	1	Rp50.000
8	41222-93E10-000	ARM, TILT LOCK	1	-
9	45420-93E02-000 SUB: 45420-93E01-000	PIN, TILT LOCK	1	Rp535.000
10	09441-17001-000	SPRING	1	Rp14.500
11	09100-06177-000 SUB: 09100-06125-000	BOLT (6X140)	1	Rp38.500
12	29141-93J00-000 SUB: 23118-94J00-000	NUT	1	Rp18.500
13	DISCONTINUE SUB: 09162-06006-000	WASHER, LOCK (6.1X12.2X1.5)	1	-
14	09159-22006-000	NUT	1	Rp186.500
15	41225-94400-000	RUBBER, TILT LOCK ARM	1	Rp30.000
16	09111-10067-000 SUB: 09111-10032-000	BOLT (10X20.4)	2	Rp52.500
17	09160-10082-000	WASHER (10.5X19X2.0)	3	Rp12.000
18	41224-94J00-000	SPRING	1	Rp8.000
19	36894-95201-000	LEAD (CLAMP TO SWIVEL)	1	Rp110.500
20	09125-05050-000	SCREW (5X8)	2	Rp14.000
21	DISCONTINUE SUB: 41161-94400-000	SEAL, STEERING CABLE	1	-	DF15R
