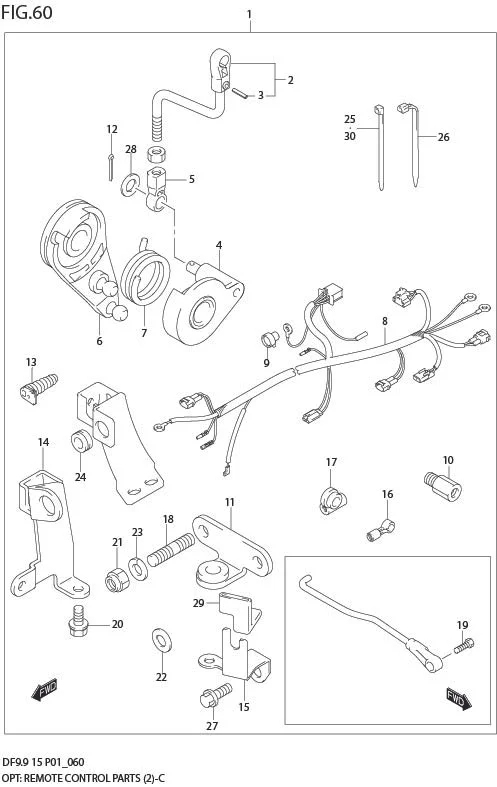

FIG 60 OPT:REMOTE CONTROL PARTS (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67130-94J11-000	PARTS SET, REMOTE CONTROL	1	Rp1.836.500
2	13510-93E01-000	?ROD, THROTTLE	1	Rp138.000
3	09205-02006-000	??PIN	1	Rp11.000
4	19121-94J10-000	?LEVER, THROTTLE CONTROL	1	Rp62.500
5	19131-94J00-000	?CONNECTOR, THROTTLE ROD	1	Rp53.000
6	DISCONTINUE SUB: 19148-93E10-000	?DRUM, THROTTLE	1	-
7	DISCONTINUE SUB: 19185-93E00-000	?SPRING, THROTTLE LEVER	1	-
8	36610-94J20-000	?HARNESS ASSY, WIRING	1	Rp1.853.500
9	36618-43410-000	??CAP, OIL PRESSURE SWITCH	1	Rp20.500
10	41141-89E00-000	?ATTACHMENT, STRG CABLE	1	Rp983.500
11	43755-94J01-000	?ATTACHMENT, STRG BRACKET	1	Rp217.500
12	09204-01002-000 SUB: 45247-94J00-000	?PIN, THROTTLE ROD	1	Rp13.000
13	67331-94J10-000	?GROMMET, SIDE COVER	1	Rp170.000
14	67340-94J01-000	?HOLDER, REMOCON CABLE (CL)	1	Rp423.000
15	67351-94J00-000	?HOLDER, REMOCON CABLE (TH)	1	Rp107.000
16	67466-95200-000	?CONNECTOR, REMOCON CABLE (TH)	1	Rp50.500
17	67467-93E01-000	?CONNECTOR, REMOCON CABLE (CL)	1	Rp54.500
18	09108-08130-000	?BOLT, STRG BRACKET ATTACHMENT	2	Rp58.500
19	DISCONTINUE SUB: 09111-06064-000	?BOLT, CLUTCH LEVER (6X17)	1	-
20	09116-06094-000	?BOLT, R/CON CABLE HOLDER (CL)	1	Rp19.000
21	DISCONTINUE SUB: 09159-08059-000	?NUT, STRG BRACKET ATTACHMENT	2	-
22	09160-08059-000	?SPACER, REMOCON CABLE HOLDER	1	Rp10.500
23	29162-93J10-000	?WASHER, STRG BRKT ATTACHMENT	2	Rp16.000
24	09308-08013-000	?GROMMET, REMOCON CABLE (CL)	1	Rp10.000
25	09407-14407-000	?CLAMP, HARNESS (L:140)	2	Rp18.500
26	36990-25G00-000 SUB: 09407-11401-000	?CLAMP, SW LEAD (L:95)	2	Rp13.000
27-1	01550-06167-000	?BOLT, REMOCON CABLE HOLDER	1	Rp16.500
27-2	DISCONTINUE SUB: 01550-08167-000	?BOLT, REMOCON CABLE HOLDER	1	-
28	DISCONTINUE SUB: 08322-01067-000	?WASHER, THROTTLE ROD	1	-
29	67356-94J00-000	?CUSHION, CABLE HOLDER	1	Rp28.000
30	09407-14407-000	?CLAMP, THROTTLE CABLE	1	Rp18.500	DF9.9:881322%
