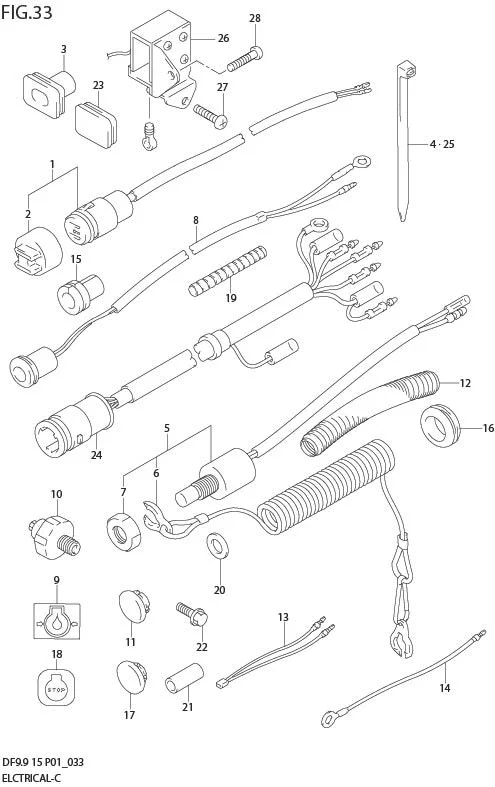

FIG 33 ELECTRICAL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	39601-95D01-000 SUB: 39601-95D00-000	RECEPTACLE ASSY, LIGHTING	1	Rp380.500	MANUAL STARTER
2	36634-93910-000	?CAP	1	Rp27.500	MANUAL STARTER
3	39603-94400-000	GROMMET, RECEPTACLE CABLE	1	Rp54.500	MANUAL STARTER
4-1	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	1	Rp13.000	MANUAL STARTER
4-2	09407-19401-000 SUB: 09407-25402-000	CLAMP (L:248)	1	Rp31.500	MANUAL STARTER
5	37830-93E04-000 SUB: 37830-93E01-000	SWITCH ASSY, EMERGENCY/STOP	1	Rp679.500
6	37823-92E02-000 SUB: 37823-92E01-000	?PLATE	1	Rp221.500
7	37826-92E00-000	?NUT	1	Rp65.500
8-1	DISCONTINUE SUB: 36360-89E10-000	INDICATOR, OIL LEVEL	1	-	DF9.9,DF15
8-2	36360-93E00-000	INDICATOR, OIL LEVEL	1	Rp296.000	DF15R
9	36367-94J00-000	LABEL, OIL LEVEL	1	-
10	37820-93E11-000 SUB: 37820-93E10-000	SWITCH, PRESSURE	1	Rp200.500
11	DISCONTINUE SUB: 09250-13005-000	CAP, EMERGENCY/STOP	1	-	OPT
12	16919-94J10-180	TUBE, SWITCH LEAD	1	Rp4.500
13	36810-93E20-000	LEAD, NEUTRAL LIMIT	1	Rp46.000	ELECTRIC STARTER
14	36810-93E30-000	LEAD, NEUTRAL LIMIT	1	Rp23.500	MANUAL STARTER
15	36612-92D00-000	GROMMET	1	Rp62.500	DF15R
16	09308-16006-000	GROMMET	1	Rp18.500
17	09250-12006-000	PLUG	1	Rp9.500	LED HOLE
18	37835-95D00-000	LABEL, STOP	1	Rp13.000
19	33833-91J00-000	TUBE (L:250)	1	Rp47.500	L:250!150
20	09160-12067-000	WASHER, EMERGENCY SWITCH	1	Rp19.000
21	DISCONTINUE SUB: 09180-08210-000	SPACER	1	-	MANUAL STARTER
22	01550-08257-000	BOLT	1	Rp18.500	MANUAL STARTER
23	39669-94J00-000	PLUG	1	-	MANUAL STARTER
24	36630-89E02-000	HARNESS, WIRING	1	Rp596.500	DF15R
25	09407-14407-000	CLAMP, EMERGENCY & STOP	1	Rp18.500
26	38610-93E00-000	SOLENOID ASSY, CHOKE	1	Rp677.500	DF15R
27	DISCONTINUE SUB: 02112-36167-000	SCREW	1	-	DF15R
28	02112-36257-000	SCREW	1	Rp16.000	DF15R
