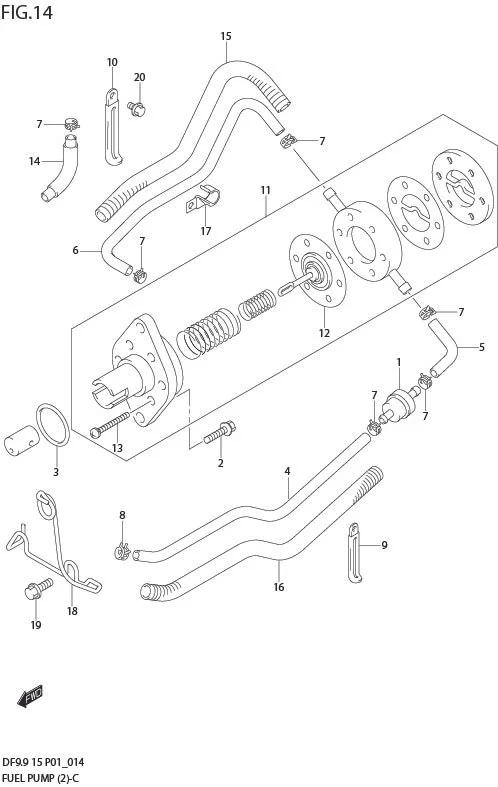

FIG 14 FUEL PUMP (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15410-98500-000	FILTER ASSY, FUEL	1	Rp100.500
2	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
3-1	09280-26005-000 SUB: 09280B26005N000	O RING (D:2.4 ID:26.2)	1	Rp3.000
3-2	09280-26005-000 SUB: 09280-26L01-000	O RING (D:2.4 ID:26.2)	1	Rp3.000	DF15:110001%
4-1	15191-94J00-000	HOSE, FUEL (CONN TO FILTER)	1	-
4-2	15191-94J01-000	HOSE, FUEL (CONN TO FILTER)	1	Rp217.500	DF15:110001%
5-1	09355-50109-600	HOSE, FUEL (FILTER TO PUMP)	1	Rp319.500	L:600!60
5-2	09343-50001-600	HOSE, FUEL (FILTER TO PUMP)	1	Rp341.500	DF15:110001%
6-1	09355-50109-600	HOSE, FUEL (PUMP TO CARB)	1	Rp319.500	L:600!460
6-2	09343-50001-600	HOSE, FUEL (PUMP TO CARB)	1	Rp341.500	DF15:110001%
7	09401-09404-000	CLIP	5	Rp16.000
8	09401-11422-000	CLIP	1	Rp16.000
9	DISCONTINUE SUB: 29404-93J10-000	CLAMP (L:65)	2	-	?09404-06432
10	DISCONTINUE SUB: 09404-08207-000	CLAMP	1	-
11-1	15100-94J03-000 SUB: 15100-94J0V-000	PUMP ASSY, FUEL	1	Rp1.062.000
11-2	15100-94JL0-000	PUMP ASSY, FUEL	1	-	DF15:110001%
12	DISCONTINUE SUB: 15170-94J0V-000	?DIAPHRAGM SET	1	-
13	15251-93E00-000	?SCREW	6	Rp12.500
14	18498-94J10-000	PROTECTOR (L:50)	1	-
15	18498-94J20-000	PROTECTOR (L:320)	1	Rp36.000
16-1	18498-94J30-000	PROTECTOR (L:340)	1	-
16-2	18498-94J31-000	PROTECTOR (L:390)	1	Rp39.500
17	09403-12318-000	CLAMP	1	Rp13.500
18-1	65793-94J00-000	HOLDER, FUEL HOSE	1	Rp79.000
18-2	65793-94J01-000	HOLDER, FUEL HOSE	1	Rp136.000	MODEL:07%
19	09116-08137-000	BOLT, HOLDER	2	Rp49.000
20	01550-06127-000	BOLT, CLAMP	1	Rp17.000	DF9.9R/15R
