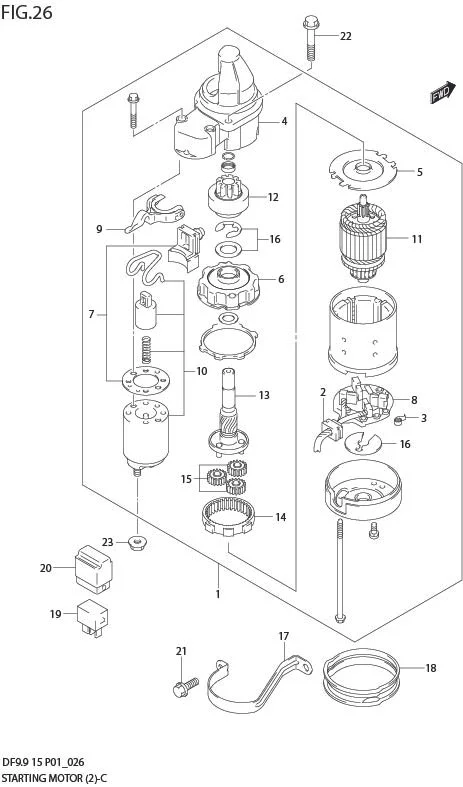

FIG 26 STARTING MOTOR (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-94J22-000 SUB: 31100-94J21-000	STARTING MOTOR	1	Rp9.670.500	?31100-94J10
2	31131-94J00-000	?BRUSH SET, PLUS	1	Rp299.000
3	31135-90J00-000	?SPRING	4	Rp63.500
4	DISCONTINUE SUB: 31151-94J00-000	?CASE, GEAR	1	-
5	DISCONTINUE SUB: 31152-90J00-000	?PLATE, CENTER	1	-
6	DISCONTINUE SUB: 31153-90J00-000	?BRACKET, PLANET GEAR	1	-
7-1	31190-94J00-000 SUB: 31171-94J00-000	?COVER KIT, DUST	1	Rp155.000	!31190-94J00
7-2	31171-96J00-000	?COVER KIT, DUST	1	Rp171.000	DF9.9:882042%
8	31173-94J01-000 SUB: 31173-94J00-000	?HOLDER ASSY, BRUSH	1	Rp1.312.500
9-1	DISCONTINUE SUB: 31191-90J00-000	?LEVER, SHIFT	1	-	!31190-94J00
9-2	31191-96J00-000	?LEVER, SHIFT	1	Rp197.000	DF9.9:882042%
10	31220-94J00-000	?SWITCH, MAGNET	1	Rp2.409.000
11	31310-90J00-000	?ARMATURE	1	Rp4.559.000
12	31320-94J00-000	?PINION	1	Rp1.973.000
13	31341-94J00-000	?SHAFT, PINION	1	Rp964.500
14	DISCONTINUE SUB: 31343-90J00-000	?INTERNAL GEAR	1	-
15	DISCONTINUE SUB: 31344-90J00-000	?GEAR, PLANETARY	3	-
16	31360-93J01-000	?WASHER SET	1	Rp115.000
17	31912-94J00-000	BAND, STARTING MOTOR	1	Rp73.000
18	31918-94J00-000	DAMPER, LOWER	1	Rp30.500
19	38860-76F01-000 SUB: 38860B76F01N000	RELAY, STARTING MOTOR	1	Rp47.000
20	38915-90J00-000	HOLDER, RELAY	1	Rp33.000
21	01550-08207-000	BOLT, LOWER	2	Rp19.000
22	01550-08257-000	BOLT, UPPER	2	Rp18.500
23	08316-10087-000	NUT	1	Rp17.000
