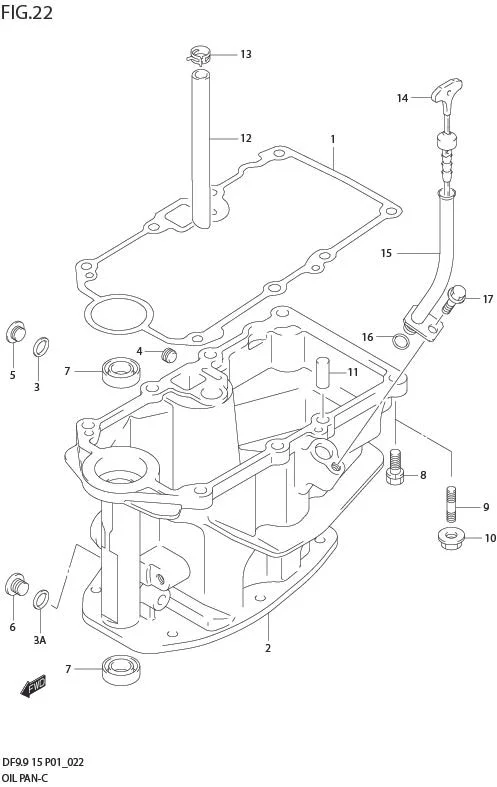

FIG 22 OIL PAN

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11489-93E11-000	GASKET, OIL PAN	1	Rp280.500
2-1	11500-93E30-0EP SUB: 11500-93E20-0EP	PAN ASSY, OIL	1	Rp3.132.000
2-2	11500-93E21-0EP	PAN ASSY, OIL	1	-	DF9.9:422113%
2-3	11500-93E22-0EP	PAN ASSY, OIL	1	Rp6.640.000	DF9.9:510371%
2-4	11500-94J00-0EP	PAN ASSY, OIL	1	Rp3.132.000	MODEL:09%
3	09168-12017-000	GASKET	1	Rp13.000	DF9.9:%510370
3A	09168-12017-000	GASKET	1	Rp13.000
4	09246-06002-000	PLUG	1	Rp19.500
5	DISCONTINUE SUB: 09248-12007-000	PLUG	1	-	DF9.9:%510370
6	09248-12009-000	PLUG	1	Rp49.000
7-2	09282-12L04-000 SUB: 09282-12010-000	OIL SEAL	1	Rp54.000	DF9.9:422113%
7-1	09282-12L04-000 SUB: 09282-12010-000	OIL SEAL	2	Rp54.000
8	01560-08307-000	BOLT	6	Rp21.500
9	01421-08257-000	BOLT, STUD	2	Rp38.000
10	08316-10087-000	NUT	2	Rp17.000
11	04221-06129-000	PIN, KNOCK	2	Rp12.500
12	16515-94J00-000	HOSE, OIL	1	Rp7.000
13	09401-12413-000	CLIP	1	Rp16.000
14	DISCONTINUE SUB: 16910-94J00-000	GAUGE, OIL LEVEL	1	-
15	16930-94J00-000	GUIDE, OIL LEVEL GAUGE	1	Rp113.000
16	09280-09008-000	O RING (ID:8.8,DD:2.1)	1	Rp20.000
17	01550-06127-000	BOLT	1	Rp17.000
