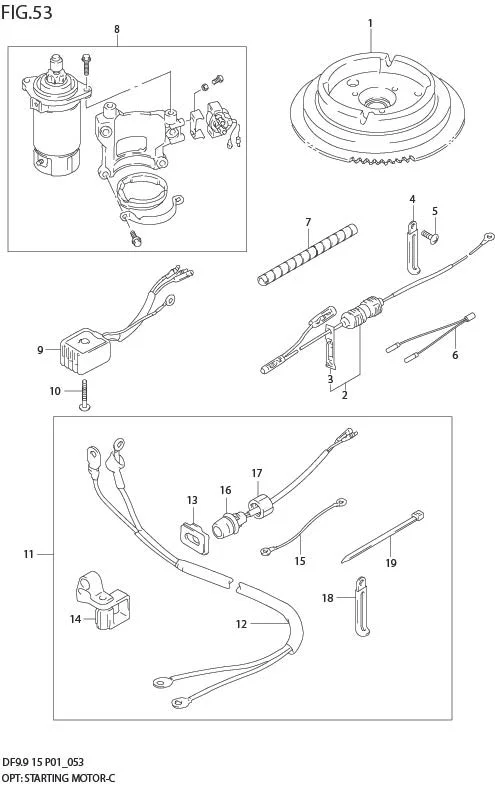

FIG 53 OPT:STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 32102-93E40-000	FLYWHEEL ASSY, MAGNETO	1	-
2	DISCONTINUE SUB: 36740-94771-000	CASE ASSY, FUSE	1	-
3	DISCONTINUE SUB: 09481-25001-000	?FUSE (25A)	1	-
4	DISCONTINUE SUB: 09404-06432L000	CLAMP, FUSE CASE (L:65)	1	-
5	02142-05127-000	SCREW	1	Rp14.000
6	36810-93E20-000	LEAD, NEUTRAL LIMIT	1	Rp46.000
7	33833-91J00-000	TUBE (L:250)	2	Rp47.500	L:250!150
8	DISCONTINUE SUB: 31101-95D20-0EP	MOTOR SET, STARTING (BLACK)	1	-
9	32800-95D02-000 SUB: 32800-95D01-000	RECTIFIER ASSY	1	Rp1.005.500
10	02142-05307-000	SCREW	1	Rp14.000
11	DISCONTINUE SUB: 33800-93E10-000	CABLE & SWITCH SET	1	-
12	33810-93E02-000	?CABLE ASSY, STARTING	1	Rp1.096.000
13	33811-96300-000	?GROMMET, STARTING CABLE	1	Rp18.500
14	33816-96300-000	?CLAMP, STARTING	1	Rp40.500
15	DISCONTINUE SUB: 33820-93E01-000	?CABLE ASSY, STARTING SUB	1	-
16	37161-89E13-000	?SWITCH ASSY, STARTER	1	Rp259.500
17	DISCONTINUE SUB: 09159-14014-000	?NUT, STARTER SWITCH	1	-
18-1	09404-08205-000	?CLAMP, BATTERY CABLE	1	Rp13.500
18-2	DISCONTINUE SUB: 09404-06432L000	?CLAMP (L:65)	1	-
19-1	09407-14407-000	?CLAMP (L:145)	1	Rp18.500
19-2	36990-25G00-000 SUB: 09407-14403L000	?CLAMP (L:125)	1	Rp13.000
