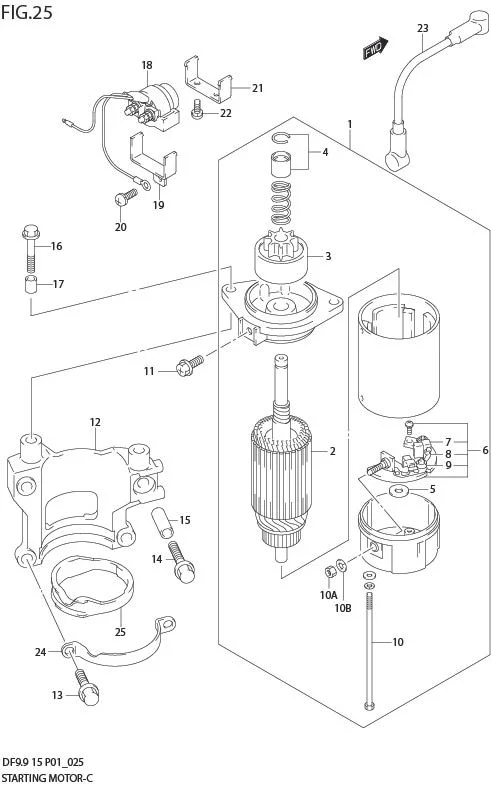

FIG 25 STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100-95D00-000	MOTOR, STARTING	1	Rp9.020.500
2	31310-96300-000	?ARMATURE, STARTER	1	Rp3.371.000
3	31320-94400-000	?PINION ASSY	1	Rp1.863.500
4	31312-96300-000	?STOPPER SET, PINION	1	Rp109.500
5	31360-96300-000	?WASHER KIT	1	Rp104.500
6	31173-89J00-000	?HOLDER ASSY, BRUSH	1	Rp579.000
7	DISCONTINUE SUB: 31131-96300-000	??BRUSH (+)	1	-
8	DISCONTINUE SUB: 31132-96300-000	??BRUSH (-)	1	-
9	31135-89J00-000	??SPRING	2	Rp45.500
10	31281-93340-000	?BOLT, STARTER HOUSING	2	Rp34.000
10A	08310-00067-000	NUT	1	Rp13.000
10B	08321-01067-000	LOCK WASHER	1	Rp13.500
11	02162-06167-000	BOLT	1	Rp7.500
12	31911-95D00-0EP	BRACKET, STARTER	1	Rp351.000
13	01550-08257-000	BOLT	3	Rp18.500
14	01550-08357-000	BOLT	1	Rp24.000
15	DISCONTINUE SUB: 09180-08210-000	SPACER	1	-
16	01550-06357-000	BOLT	2	Rp18.500
17	04211-09189-000	PIN	2	Rp10.500
18	31800-94401-000	RELAY, STARTING MOTOR	1	Rp1.008.500
19	38412-94700-000	BRACKET, RELAY	1	Rp30.000
20	DISCONTINUE SUB: 02112-36167-000	SCREW	1	-
21	31805-95501-000	BRACKET, STARTER RELAY	1	Rp33.000	OPT
22	02112-35127-000 SUB: 02112B35127N000	SCREW	2	Rp9.500	OPT
23	DISCONTINUE SUB: 33820-93E01-000	CABLE, STARTER SUB	1	-
24	31912-95D00-000	BAND	1	Rp44.500	OPT
25	31918-94402-000 SUB: 31918-94401-000	DAMPER	1	Rp76.500	OPT
