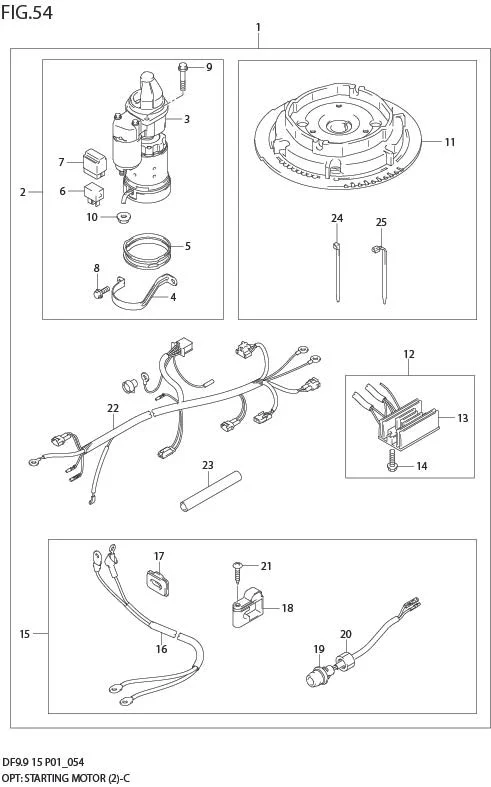

FIG 54 OPT:STARTING MOTOR (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31000-94J02-000	STARTER SET, ELECTRIC	1	Rp6.292.500
2	31101-94J01-000	?MOTOR SET, STARTING	1	Rp6.207.500
3	31100-94J22-000 SUB: 31100-94J21-000	??MOTOR ASSY, STARTING	1	Rp9.670.500	?31100-94J10
4	31912-94J00-000	??BAND	1	Rp73.000
5	DISCONTINUE SUB: 31918-90J00-000	??DAMPER	1	-
6	38860-76F01-000 SUB: 38860B76F01N000	??RELAY ASSY	1	Rp47.000
7	38915-90J00-000	??HOLDER	1	Rp33.000
8	01550-08207-000	??BOLT, LOWER	2	Rp19.000
9	01550-08257-000	??BOLT, UPPER	2	Rp18.500
10	08316-10087-000	??NUT	1	Rp17.000
11	32102-94J10-000	?FLYWHEEL, MAGNETO	1	Rp4.416.500
12-1	32801-94J01-000 SUB: 32801-94J00-000	?RECTIFIER/REGULATOR SET	1	Rp1.450.000
12-2	32801-94J01-000	?RECTIFIER/REGULATOR SET	1	Rp1.450.000	MODEL:10%
13	32800-94J11-000	??RECTIFIER/REGULATOR ASSY	1	Rp1.470.000
14	01550-06257-000 SUB: 01550B06257N000	??BOLT	2	Rp3.500
15	33800-94J00-000	?CABLE SET, STARTING	1	Rp566.500
16	33810-94J00-000	??CABLE, STARTER	1	Rp408.500
17	33811-94J10-000	??GROMMET	1	Rp17.000
18	33816-94J01-000	??CLAMP	1	Rp40.500
19	37161-94J00-000	?SWITCH ASSY, STARTER	1	Rp401.000
20	DISCONTINUE SUB: 09159-14014-000	??NUT	1	-
21	DISCONTINUE SUB: 03241-0625A-000	??SCREW, CLAMP	1	-
22	36610-94J10-000	?HARNESS ASSY, WIRING	1	Rp1.463.500
23	33833-94JL0-000	?TUBE, SW LEAD	1	Rp2.000
24	09407-14407-000	?CLAMP	4	Rp18.500
25	36990-25G00-000 SUB: 09407-11401-000	?CLAMP	1	Rp13.000
