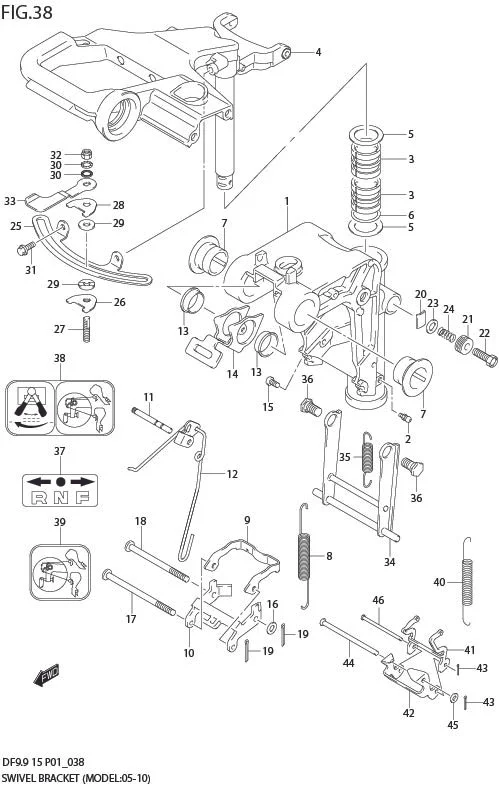

FIG 38 SWIVEL BRACKET (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	43111-94J30-0EP	BRACKET, SWIVEL	1	-	MODEL:10%
1-1	43111-94J21-0EP SUB: 43111-94J00-0EP	BRACKET, SWIVEL	1	Rp907.500
2	22511-99011-000	NIPPLE	3	Rp39.500
3-1	43711-99J00-000 SUB: 43711-93901-000	BUSH, STEERING	2	Rp95.000
3-2	43711-99J00-000	BUSH, STEERING	2	Rp95.000	DF15:110001%
4-1	43750-94J20-0EP SUB: 43750-94J01-0EP	BRACKET, STEERING	1	Rp945.500
4-2	43750-94J20-0EP	BRACKET, STEERING	1	Rp945.500	MODEL:10%
5	09160-27013-000 SUB: 09160-27009-000	WASHER (27.5X47X2.0)	2	Rp28.500
6-1	09280-27004-000	O RING (D:3.1 ID:26.2)	1	Rp12.500
6-2	09280-27L01-000	O RING (D:3.1 ID:26.2)	1	-	DF15:110001%
7-1	43211-87JL0-000 SUB: 43211-94401-000	BUSH, SWIVEL SHAFT	2	Rp213.000
7-2	43211-87JL0-000	BUSH, SWIVEL SHAFT	2	Rp213.000	DF15:110001%
8	45212-94J01-000 SUB: 45212-94J00-000	SPRING, REVERSE LOCK ARM	2	Rp87.500	MODEL:05%09
9	45231-94J00-000	ARM, REVERSE LOCK	1	Rp213.000	MODEL:05%09
10	45241-94J00-000	LINK, REVERSE LOCK ARM	1	Rp186.500	MODEL:05%09
11	41225-94502-000	PIN, RELEASE ARM	1	Rp44.000
12	45250-94J00-000	LINK, RELEASE	1	Rp43.500
13	59315-94J00-000 SUB: 09306-22006-000	BUSH	2	Rp21.500
14	45261-94J00-000	LEVER, RELEASE	1	Rp80.500
15	09125-05050-000 SUB: 29125-93J10-000	SCREW, LEAD	1	Rp14.000	?09125-05050
16	09160-06082-000	WASHER	1	Rp10.500	MODEL:05%09
17	DISCONTINUE SUB: 09200-05014-000	PIN	1	-	MODEL:05%09
18	DISCONTINUE SUB: 09200-06061-000	PIN	1	-	MODEL:05%09
19	09204-01002-000	PIN, COTTER	2	Rp13.000	MODEL:05%09
20-1	43411-939L0-000 SUB: 43411-93900-000	PLATE, STEERING ADJUSTER	1	Rp22.000
20-2	43411-939L0-000	PLATE, STEERING ADJUSTER	1	Rp22.000	DF15:110001%
21	43412-93901-000 SUB: 43412-93900-000	COVER, STEERING ADJUST	1	Rp30.000	?43412-94J00
22	09100-08232-000	BOLT (8X30)	1	Rp29.000
23	09160-08082-000	WASHER (8.5X16X1.2)	1	Rp12.000
24	29440-93J00-000 SUB: 43419-94J00-000	SPRING	1	Rp22.500
25	43415-94J00-000	PLATE, STEERING ADJUSTER	1	Rp93.500	EXCEPT DF9.9R/15R
26-1	43420-94J10-000	NUT	1	Rp109.500	EXCEPT DF9.9R/15R
26-2	43420-94J20-000	PLATE	1	Rp19.500	EXCEPT DF9.9R/15R MODEL:10
27	43512-94J00-000	SHAFT, STEERING ADJUSTER	1	Rp79.500	EXCEPT DF9.9R/15R
28	43514-94J00-000	PLATE, FRICTION	1	Rp7.500	EXCEPT DF9.9R/15R
29	43514-95J00-000	WASHER, FRICTION PLATE	2	Rp39.000	EXCEPT DF9.9R/15R
30	43516-89J00-000	WASHER, STEERING ADJUSTER	2	Rp110.500	EXCEPT DF9.9R/15R
31	29116-93J00-000	BOLT, ADJUSTER PLATE	2	Rp23.000	EXCEPT DF9.9R/15R
32	DISCONTINUE SUB: 09159-08059-000	NUT, ADJUSTER UPPER	1	-	EXCEPT DF9.9R/15R
33	43411-94J00-000	ADJUSTER, STEERING	1	Rp38.500	EXCEPT DF9.9R/15R
34-1	45710-99JL1-000 SUB: 45710-94J01-000	ARM, SHALLOW DRIVE	1	Rp223.500
34-2	45710-99JL1-000 SUB: 45710-99JL0-000	ARM, SHALLOW DRIVE	1	Rp223.500	DF15:110001%
35-1	45722-94J11-000 SUB: 45722-94J00-000	SPRING, ARM	1	Rp144.500
35-2	45722-94J11-000	SPRING, ARM	1	Rp144.500	MODEL:10%
36	09111-10067-000 SUB: 09111-10032-000	BOLT	2	Rp52.500
37	21131-94J00-000	MARK, CLUTCH SHIFT	1	Rp3.000	EXCEPT DF9.9R/15R
38	45269-94J00-000	MARK, REVERSE LOCK	1	Rp9.500	EXCEPT DF9.9R/15R
39	45269-94J20-000	MARK, REVERSE LOCK	1	Rp7.000	DF9.9R/15R
40	45212-99J10-000	SPRING, REVERSE LOCK ARM	2	Rp60.500	MODEL:10%
41	45231-99J10-000	ARM, REVERSE LOCK	1	Rp115.500	MODEL:10%
42-1	45241-99J10-000	LINK, REVERSE LOCK ARM	1	-	MODEL:10
42-2	45241-99JL0-000	LINK, REVERSE LOCK ARM	1	-	DF15:110001%
43-1	09204-01002-000	PIN, CL LEVER LINK	2	Rp13.000	MODEL:10
43-2	09204-01002-000	PIN, CL LEVER LINK	1	Rp13.000	DF15:012105%
43-3	45247-99J00-000	PIN, CL LEVER LINK	1	Rp2.000	DF15:012105%
44	DISCONTINUE SUB: 09200-06061-000	PIN, REV LOCK ARM LINK	1	-	MODEL:10%
45	09160-06082-000	WASHER (6.5X13X1)	1	Rp10.500	MODEL:10%
46	DISCONTINUE SUB: 09200-05014-000	PIN, REV LOCK ARM (L:73)	1	-	MODEL:10%
