DF9.9 15 P01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER HEAD (MODEL:05%)FIG 3 CYLINDER BLOCK FIG 4 CYLINDER BLOCK (MODEL:05%)FIG 5 CRANKSHAFT FIG 6 TIMING BELT FIG 7 TIMING BELT (MODEL:05%)FIG 8 CAMSHAFT FIG 9 INLET MANIFOLD FIG 10 INLET MANIFOLD (MODEL:05%)FIG 11 CARBURETOR FIG 12 CARBURETOR (MODEL:05%)FIG 13 FUEL PUMP FIG 14 FUEL PUMP (MODEL:05%)FIG 15 WATER PUMP FIG 15A WATER PUMP (MODEL:07%)FIG 16 THERMOSTAT FIG 17 RECOIL STARTER FIG 18 THROTTLE CONTROL FIG 19 THROTTLE CONTROL (DF9.9,DF15 MODEL:05%)FIG 20 THROTTLE CONTROL (DF9.9R/15R MODEL:05%)FIG 21 OIL PUMP FIG 22 OIL PAN FIG 23 CLUTCH FIG 24 TRANSMISSION FIG 25 STARTING MOTOR FIG 26 STARTING MOTOR (MODEL:05%)FIG 27 MAGNETO FIG 28 MAGNETO (MODEL:05%)FIG 29 IGNITION COIL FIG 30 IGNITION COIL (MODEL:05%)FIG 31 RECTIFIER FIG 32 RECTIFIER (MODEL:05%)FIG 33 ELECTRICAL FIG 34 ELECTRICAL (MODEL:05%)FIG 35 CLAMP BRACKET FIG 36 CLAMP BRACKET (MODEL:05%)FIG 37 SWIVEL BRACKET FIG 38 SWIVEL BRACKET (MODEL:05%)FIG 39 DRIVE SHAFT HOUSING FIG 40 GEAR CASE FIG 41 SIDE COVER FIG 42 ENGINE COVER (MODEL:04%09)FIG 42A ENGINE COVER (MODEL:10%)FIG 43 FUEL TANK (RESIN)FIG 44 TILLER HANDLE FIG 45 TILLER HANDLE (MODEL:05%)FIG 46 REMOTE CONTROL (TYPE:R)FIG 47 REMOTE CONTROL (TYPE:R)(MODEL:05%)FIG 48 REMOCON CABLE HOLDER (TYPE:R)FIG 49 DRAG LINK (TYPE:R)FIG 50 OPT:METER (TYPE:R)FIG 51 OPT:ELECTRICAL FIG 52 OPT:ELECTRICAL (MODEL:05%)FIG 53 OPT:STARTING MOTOR FIG 54 OPT:STARTING MOTOR (MODEL:05%)FIG 55 OPT:RECEPTACLE SET (MODEL:04)FIG 56 OPT:TILLER HANDLE FIG 57 OPT:TILLER HANDLE (MODEL:05%)FIG 58 OPT:FUEL TANK (RESIN 25L)FIG 59 OPT:REMOTE CONTROL PARTS FIG 60 OPT:REMOTE CONTROL PARTS (MODEL:05%)FIG 61 OPT:TOP MOUNT SINGLE (1)(MODEL:05%)FIG 62 OPT:TOP MOUNT SINGLE (2)(MODEL:05%)FIG 63 OPT:DRAG LINK

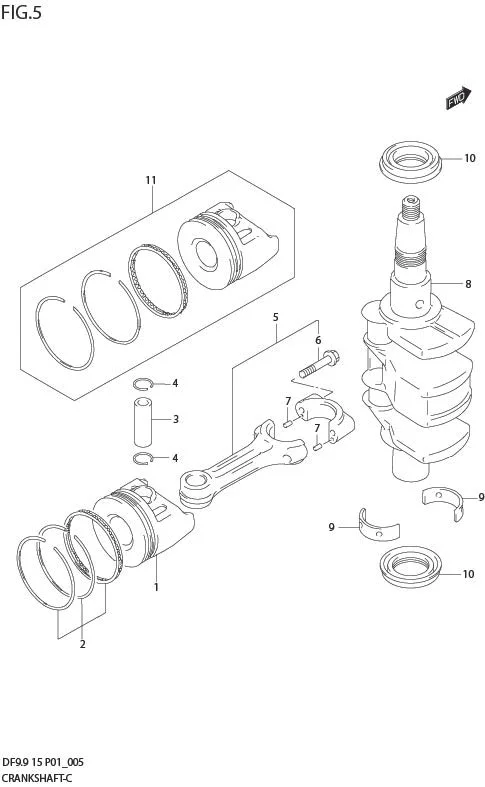

FIG 5 CRANKSHAFT

FIG 5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12111-94J00-0B0	PISTON	2	Rp146.000
2-1	12140-02C10-000	RING SET, PISTON	2	Rp462.000
2-2	12140-94JL0-000	RING SET, PISTON	2	-	DF15:110001%
3	12151-93E00-000	PIN, PISTON	2	Rp96.500
4	09381-14001-000 SUB: 09381B14001N000	CIRCLIP	4	Rp2.500
5-1	DISCONTINUE SUB: 12160-93E11-0A0	CONNROD ASSY	1	-	MARK 1
5-2	DISCONTINUE SUB: 12160-93E10-0B0	CONNROD ASSY	1	-	MARK 2 MODEL:04
6	12163-32C00-000	?BOLT, CONNROD	4	Rp42.500
7	04221-03059-000	?PIN	4	Rp10.500
8-1	12220-93E12-0C0	CRANKSHAFT	1	Rp3.958.000
8-2	12220-94J00-000	CRANKSHAFT	1	Rp7.580.000	MODEL:05%
9-1	12229-33C00-0A0	BEARING, CRANKSHAFT	4	Rp77.000	GREEN
9-2	12229-33C00-0B0	BEARING, CRANKSHAFT	4	Rp96.000	BLACK MODEL:04%07
9-3	12229-33C00-0C0	BEARING, CRANKSHAFT	4	Rp95.000	BROWN MODEL:04
9-4	12229-33C00-0D0	BEARING, CRANKSHAFT	4	Rp77.000	OPT YELLOW
10	09283-32039-000	SEAL, CRANKSHAFT OIL	2	Rp111.000
11-1	DISCONTINUE SUB: 12100-94J00-050	PISTON SET (OS:0.50)	2	-	OPT
11-2	12100-94J10-050	PISTON SET (OS:0.50)	2	-	DF15:110001%

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
