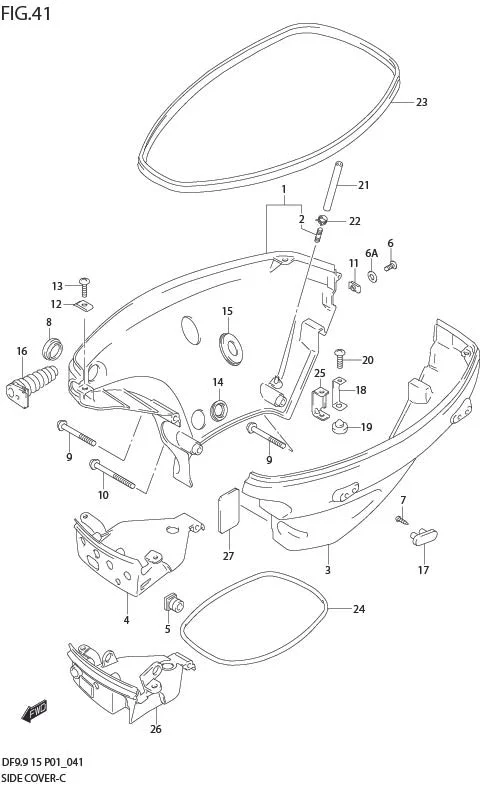

FIG 41 SIDE COVER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61810-94J00-0EP	COVER ASSY, SIDE STBD	1	Rp852.500
2	61155-94500-000	?TUBE, WATER INSP	1	Rp26.500
3	61821-94J00-0EP	COVER ASSY, SIDE PORT	1	Rp773.500
4	61831-94J20-0EP	PANEL, INSTRUMENT	1	Rp117.500	MODEL:04
5	36656-93E00-000	GROMMET, SWITCH LEAD	1	Rp28.500	MODEL:04
6	DISCONTINUE SUB: 09125-06067-000	SCREW (6X16)	1	-
6A	09160-06082-000	WASHER, SIDE COVER SCREW	1	Rp10.500	MODEL:06%
7	59139-94J00-000	SCREW	4	Rp18.000
8	09250-26006-000 SUB: 09250-26003-000	PLUG, CLUTCH HOLE	1	Rp19.500
9	DISCONTINUE SUB: 09136-06137-000	BOLT (6X55)	2	-
10	DISCONTINUE SUB: 09136-06138-000	BOLT (6X75)	1	-
11	DISCONTINUE SUB: 09148-06015-000	NUT	1	-
12	09148-06017-000 SUB: 09148B06017N000	NUT	2	Rp15.500
13	02142-0616A-000 SUB: 02142B06167N000	SCREW	2	Rp3.000
14	61115-93E00-000	SEAL, SIDE COVER DRAIN	1	Rp84.000	?61115-94J00
15	DISCONTINUE SUB: 61124-93E00-000	PLUG, SIDE COVER	1	-	?61124-94J00
16-1	67331-93E20-000	GROMMET	1	Rp72.000
16-3	67331-94J10-000	GROMMET	1	Rp170.000	DF9.9R/15R
16-2	67331-94J00-000	GROMMET	1	Rp145.000	MODEL:05%
17	61851-93E10-000	PROTECTOR, SIDE COVER	2	Rp43.000
18	61827-93E00-000	HOLDER, SIDE COVER	1	Rp51.000	MODEL:04
19-1	09321-08020-000	CUSHION, SIDE COVER	1	Rp24.500
19-2	61151-91J11-000	CUSHION, SIDE COVER	1	Rp9.000	MODEL:05%
20	02142-0616A-000 SUB: 02142B06167N000	SCREW	1	Rp3.000
21	15211-91J00-180	HOSE	1	Rp5.500
22	09401-08413-000	CLIP	2	Rp19.500
23	61112-93930-000	RUBBER, SIDE COVER	1	Rp382.500
24	61134-93E00-000	SEAL, SIDE COVER	1	Rp97.500
25	61827-94J00-000	HOLDER, SIDE COVER	1	Rp63.500	MODEL:05%
26	61831-94J30-0EP	PANEL, INSTRUMENT	1	Rp409.500	MODEL:05%
27-1	61814-94JA1-000	PROTECTOR, SIDE COVER	1	-	DF9.9:881322%
27-2	61814-94JL0-000	PROTECTOR, SIDE COVER	1	Rp12.500	DF15:110001%
