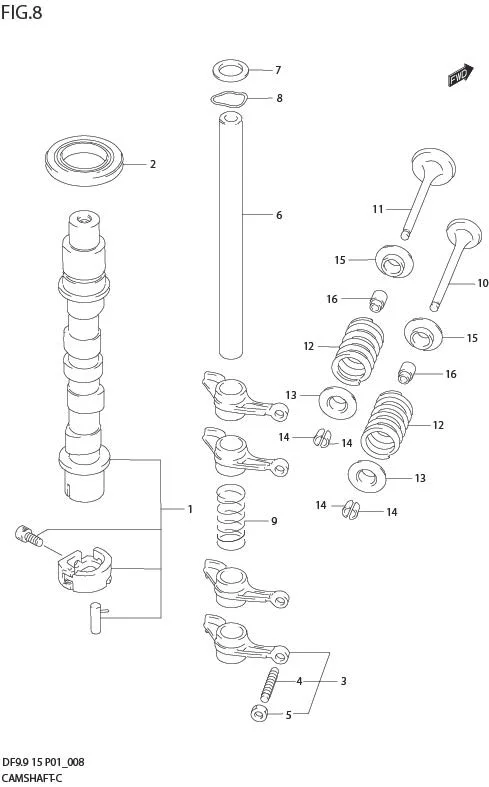

FIG 8 CAMSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	12700-93E50-000	CAMSHAFT ASSY	1	Rp1.401.000	DF15 MANUAL STARTER
1-3	12700-94J00-000	CAMSHAFT ASSY	1	Rp1.281.500	MANUAL STARTER
1-4	12711-93E01-000	CAMSHAFT	1	Rp1.076.500	DF9.9 ELECTRIC STARTER
1-5	12711-93E11-000	CAMSHAFT	1	Rp1.403.000	DF15 ELECTRIC STARTER
1-6	12711-94J10-000	CAMSHAFT	1	Rp985.000	ELECTRIC STARTER
1-1	12700-93E40-000	CAMSHAFT ASSY	1	Rp1.401.000	DF9.9 MANUAL STARTER
2-1	09283-25107-000 SUB: 09283-25009-000	SEAL, CAMSHAFT OIL	1	Rp41.000
2-2	09283-25096-000	SEAL, CAMSHAFT OIL	1	Rp84.000	MODEL:05%
3	12840-93E01-000	ARM ASSY, ROCKER	4	Rp210.000
4	12842-49201-000	?SCREW, TAPPET ADJUSTING	4	Rp30.500
6	DISCONTINUE SUB: 12861-93E00-000	SHAFT, ROCKER ARM	1	-
6	12843-27A00-000	.NUT, TAPPET ADJUSTING	2	Rp19.000
7	09160-13010-000	WASHER (13X20X1)	1	Rp12.500
8	09164-14012-000	WASHER, WAVE (14.5X20X0.3)	1	Rp9.000
9	12891-94J00-000	SPRING	1	Rp3.000
10	DISCONTINUE SUB: 12911-93E00-000	VALVE, INTAKE	2	-	?12911-94J00
11	DISCONTINUE SUB: 12915-93E00-000	VALVE, EXHAUST	2	-	?12915-94J00
12	12921-93E00-000	SPRING, VALVE	4	Rp82.500
13	12931-78G00-000	RETAINER, VALVE SPRING	4	Rp35.500
14	12932-24400-000	COTTER, VALVE	8	Rp13.000
15	12933-71C00-000	SEAT, VALVE SPRING	4	Rp19.000
16	09289-05013-000 SUB: 09289-05012-000	SEAL, VALVE STEM	4	Rp16.500
