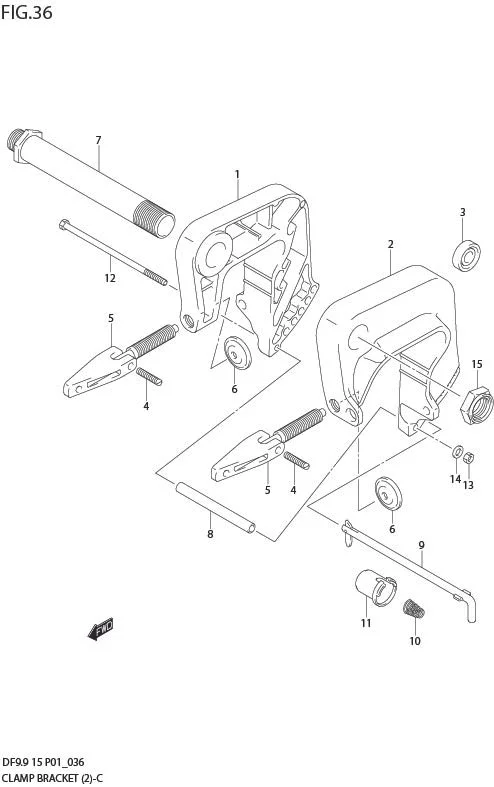

FIG 36 CLAMP BRACKET (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	41111-94J20-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp537.000	MODEL:10&
1-1	41111-94J00-0EP	BRACKET, CLAMP STBD (BLACK)	1	Rp997.500
2-1	41121-94J20-0EP SUB: 41121-94J00-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp533.500
2-2	41121-94J20-0EP	BRACKET, CLAMP PORT (BLACK)	1	Rp533.500	MODEL:10%
3	DISCONTINUE SUB: 41161-94400-000	SEAL, STEERING CABLE	1	-	DF9.9R/15R
4	09205M06016-000 SUB: 09205-06007-000	PIN (6X27)	2	Rp4.500
5-1	41210-89E11-000 SUB: 41210-89E00-000	SCREW, CLAMP	2	Rp307.500	OPT
5-2	41210-89E11-000 SUB: 41210-89E10-000	SCREW, CLAMP	2	Rp307.500	DF15:110001%
6	41213-94J01-000 SUB: 41213-98100-000	PLATE, CLAMP	2	Rp38.000
7-2	41130-93E02-000	SHAFT, CLAMP BRKT	1	Rp367.500	DF9.9R/15R
7-1	41130-90L00-000 SUB: 41130-89E20-000	SHAFT, CLAMP BRKT	1	Rp1.155.500
8	09180-06163-000	SPACER	1	Rp50.000
9-1	45420-94J01-000	PIN, TILT LOCK	1	Rp272.000
9-2	45420-99JM1-000 SUB: 45420-99J00-000	PIN, TILT LOCK	1	Rp475.000	MODEL:10%
9-3	45420-99JL0-000	PIN, TILT LOCK	1	Rp272.000	DF15:110001%
10	09441-17001-000	SPRING	1	Rp14.500
11	45425-94J00-000	STOPPER	1	Rp29.500
12	09100-06177-000 SUB: 09100-06125-000	BOLT (6X140)	1	Rp38.500
13	29141-93J00-000 SUB: 23118-94J00-000	NUT	1	Rp18.500
14	09160-06082-000	WASHER, LOCK	1	Rp10.500
15	09159-22006-000	NUT	1	Rp186.500
