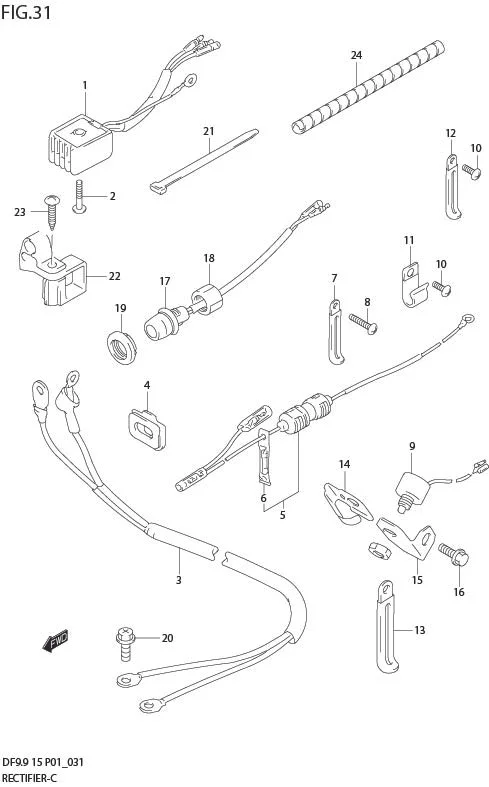

FIG 31 RECTIFIER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32800-95D02-000 SUB: 32800-95D01-000	RECTIFIER ASSY	1	Rp1.005.500	ELECTRIC STARTER
2	02142-05307-000	SCREW	1	Rp14.000	ELECTRIC STARTER
3	33810-93E02-000	CABLE ASSY, STARTER	1	Rp1.096.000	ELECTRIC STARTER
4	33811-96300-000	GROMMET, STARTER CABLE	1	Rp18.500	ELECTRIC STARTER
5	DISCONTINUE SUB: 36740-94771-000	CASE ASSY, FUSE	1	-	ELECTRIC STARTER
6	DISCONTINUE SUB: 09481-25001-000	?FUSE (25A)	1	-
7	DISCONTINUE SUB: 09404-06432L000	CLAMP, FUSE CASE	1	-
8	02142-05127-000	SCREW	1	Rp14.000
9	37721-93E01-000	SWITCH ASSY, NEUTRAL	1	-
10	09125-06069-000	SCREW (6X12)	2	Rp18.000
11	09403-16411-000	CLAMP	1	Rp25.000
12	DISCONTINUE SUB: 09404-06432L000	CLAMP, SWITCH LEAD	1	-
13	09404-08205-000	CLAMP, BATTERY CABLE	1	Rp13.500	ELECTRIC STARTER
14	DISCONTINUE SUB: 37725-94302-000	ACTUATOR, NEUTRAL SW	1	-
15	37726-95D02-000	BRACKET, NEUTRAL SW	1	Rp36.500
16	01550-06167-000	BOLT	1	Rp16.500
17	37161-89E13-000	SWITCH, STARTING MOTOR	1	Rp259.500	ELECTRIC STARTER
18	DISCONTINUE SUB: 09159-14014-000	NUT	1	-	ELECTRIC STARTER
19	DISCONTINUE SUB: 09250-15010L000	PLUG, START SW HOLE	1	-
20	02162-06167-000	BOLT	1	Rp7.500
21	36990-25G00-000 SUB: 09407-14403L000	CLAMP	1	Rp13.000	ELECTRIC STARTER
22	33816-96300-000	CLAMP, CABLE	1	Rp40.500	DF15R
23	DISCONTINUE SUB: 03242-06253-000	SCREW, CABLES CLAMP	1	-	DF15R
24	33833-91J00-000	TUBE (L:250)	1	Rp47.500	L:250!150
