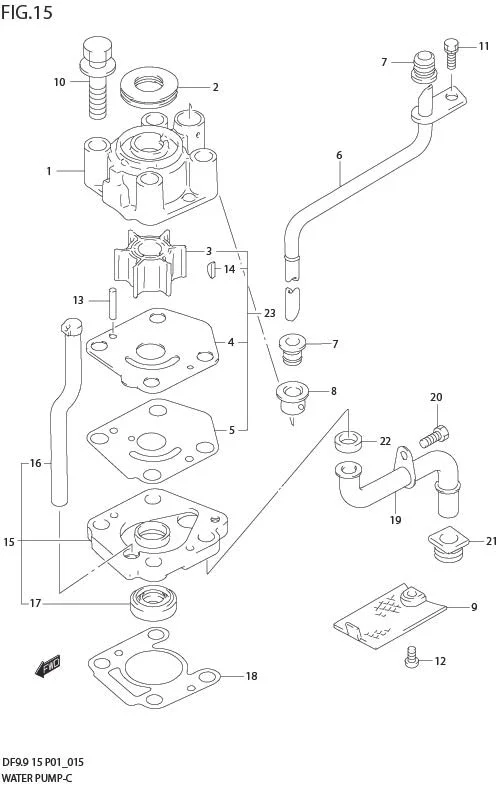

FIG 15 WATER PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17411-93901-000	CASE, WATER PUMP	1	Rp707.000
2	17417-93911-000 SUB: 17417-93910-000	GROMMET, PUMP CASE	1	Rp28.000
3	17461-939M0-000 SUB: 17461-93903-000	IMPELLER, WATER PUMP	1	Rp217.500
4	17471-93902-000	PANEL, PUMP CASE UNDER	1	Rp45.000
5	17472-93911-000	GASKET, PUMP CASE PANEL	1	Rp34.000
6-1	17560-94J11-000	TUBE, WATER (S)	1	Rp133.500
6-2	17560-94J01-000	TUBE, WATER (L)	1	Rp164.000
7	17563-94J00-000	GROMMET, WATER TUBE	2	Rp12.500
8	17564-93901-000 SUB: 17564-93900-000	BUSH, WATER PUMP CASE	1	Rp28.500	?17564-94J00
9	17631-92D01-000	FILTER, WATER	1	Rp42.000
10	09116-08159-000 SUB: 09116-08117-000	BOLT (8X55)	4	Rp27.000
11	09116-06094-000	BOLT (6X15)	1	Rp19.000
12	09125-06063-000	SCREW (6X10)	1	Rp15.000
13	09202-04014-000	PIN (4X19)	2	Rp12.500
14	09420-03009-000 SUB: 17462-93990-000	KEY	1	Rp47.500
15	17450-94J00-000	HOUSING, WATER INLET	1	Rp348.000
16	17453-93901-000	?DRAIN, WATER INLET	1	Rp35.000	?17453-94J00
17	09289-12003-000	?SEAL, OIL	1	Rp61.000
18	17452-93910-000	GASKET, WATER INLET HSG	1	Rp34.000
19	17520-94J01-000 SUB: 17520-93902-000	TUBE, WATER INLET	1	Rp142.000
20	09100-06106-000	BOLT (6X9)	1	Rp13.000
21	59317-94J00-000	GROMMET	1	Rp56.000
22	59317-94J10-000	GROMMET	1	Rp39.000
23	17400-93951-000	KIT, WATER PUMP REPAIR	1	Rp227.000	OPT
