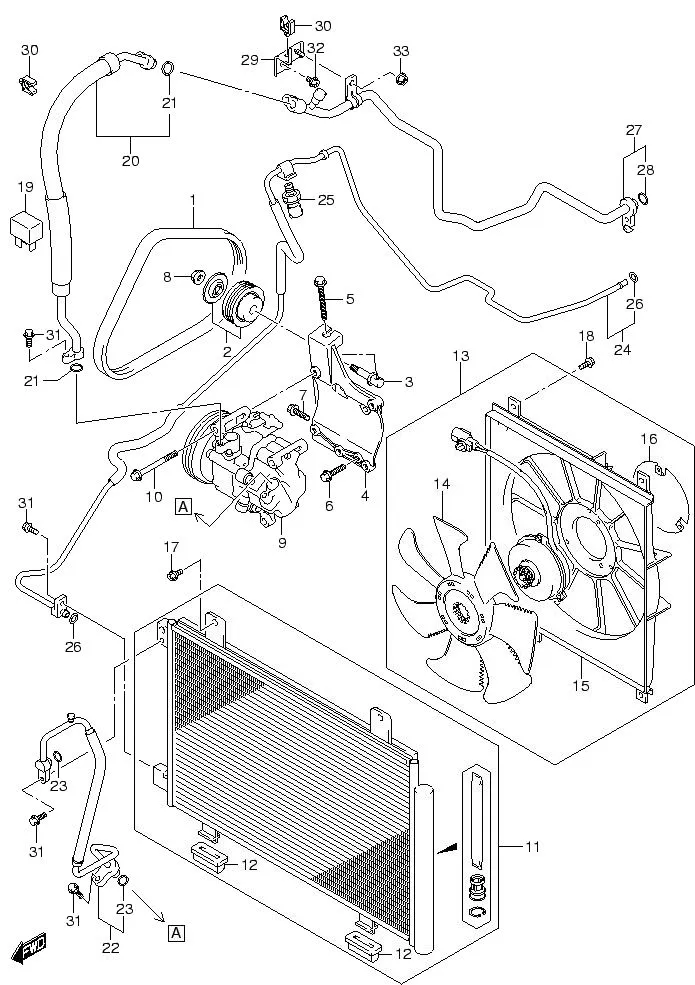

FIG.118 AIR CONDITIONER

FIG.118 AIR CONDITIONER
No No. Part Description Qty Price Per Pcs Remarks
1 17521-86550-000
SUB: 17521-86500L000
BELT, WATER PUMP (4PK815) 1 Rp64.500
2 49160-70AA0-000 PULLEY ASSY, BELT TENSION 1 Rp949.000
3 49161-60B10-000 BOLT, BELT TENSION PULLEY 1 Rp128.500
4 95111-63J00-000 BRACKET, CPRSR 1 Rp916.500
5 95126-58J00-000
SUB: 09103-08352-000
BOLT (8X75) 1 Rp48.500
6 01550-0830A-000
SUB: 01550B0830AN000
BOLT 3 Rp4.000
7 01550-0855A-000 BOLT 1 Rp3.500
8 08316-1010A-000
SUB: 08316B1010AN000
NUT 1 Rp3.500
9 95200-63JA1-000 COMPRESSOR ASSY 1 Rp18.920.000
10 01550-0875A-000 BOLT 4 Rp6.000
11 95310-80J01-000
SUB: 95310-80J00-000
CONDENSER ASSY 1 Rp6.010.000
12 DISCONTINUE
SUB: 95851-75F00L000
•BUSH, COND 2 -
13 95360-79J20-000
SUB: 95360B79J01N000
FAN ASSY, CONDENSER 1 Rp5.040.500
14 95362-79J20-000
SUB: 95362-79J01-000
•FAN, COND 1 Rp2.352.000
15 95363-79J01-000 •SHROUD, COND 1 Rp1.877.500
16 DISCONTINUE
SUB: 95364-79J01-000
•GUARD, FAN MOTOR 1 -
17 01550-0620B-000
SUB: 01550B0620AN000
BOLT 2 Rp3.500
18 02162-0616A-000
SUB: 02162-0616C-000
SCREW 4 Rp3.000
19 38860-76F01-000
SUB: 38860B76F01N000
RELAY ASSY 1 Rp47.000
20 95710-80J00-000 HOSE, SUCTION 1 Rp988.500
21 95896-50G00-000
SUB: 95896B50G00N000
•O RING 2 Rp19.000
22 95720-80J00-000 HOSE, DISCHARGE 1 Rp1.416.500
23 95895-50G00-000
SUB: 95895B50G00N000
•O RING 2 Rp12.500
24 95731-80J00-000 PIPE, LIQUID 1 Rp2.266.500
25 95546-58J00-000
SUB: 95546B58J00N000
•SENSOR, PRESSURE 1 Rp326.000
26 95891-50G00-000
SUB: 95891B50G00N000
•O RING 2 Rp12.500
27 95741-80J00-000 PIPE, SUCTION 1 Rp1.702.500
28 95896-50G00-000
SUB: 95896B50G00N000
•O RING 1 Rp19.000
29 DISCONTINUE
SUB: 95781-80J00-000
STAY, SUCT HOSE 1 -
30 09403M08331-000 CLAMP 3 Rp6.500
31 01550-0620B-000
SUB: 01550B0620AN000
BOLT 6 Rp3.500
32 02162-0612A-000 SCREW 1 Rp11.000
33 08361M2506A-000 NUT 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
