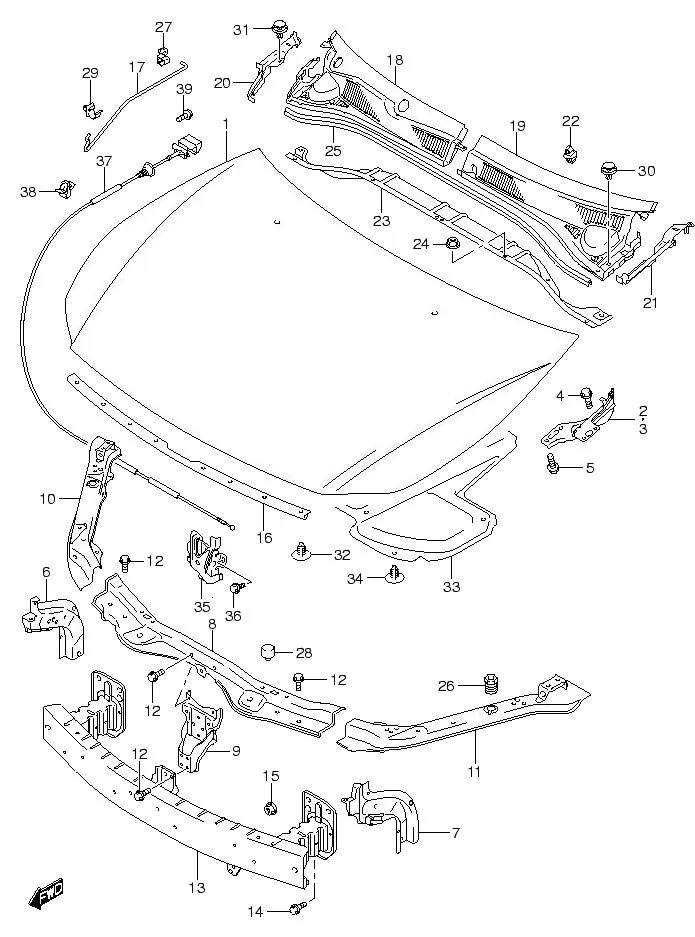

FIG.80 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	57300-80810-000	PANEL SET, FRONT HOOD	1	Rp7.182.000
2	57410-80J00-000	HINGE, FRONT HOOD RH	1	Rp704.000
3	57420-80J00-000	HINGE, FRONT HOOD LH	1	Rp704.000
4	DISCONTINUE SUB: 01550B0612AN000	BOLT	6	-
5	01551-0820A-000	BOLT	4	Rp17.500
6	58110-54L00-000 SUB: 58110-80J00-000	BRACE, LAMP SUPPORT RH	1	Rp474.000
7	58120-80J00-000	BRACE, LAMP SUPPORT LH	1	Rp478.500
8	58230-79J00-000	MEMBER, HOOD LOCK	1	Rp1.244.500
9	58240-80J00-000	BRACE, HOOD LOCK	1	Rp579.000
10	58250-80J10-000	MEMBER, LAMP SUPPORT RH	1	Rp598.500
11	58260-80J01-000	MEMBER, LAMP SUPPORT LH	1	Rp640.500
12	DISCONTINUE SUB: 01550B0612AN000	BOLT	7	-
13	58270-80J20-000 SUB: 58270-80J00-000	MEMBER, FR BUMPER UPPER	1	Rp3.665.000
14	01551-0820A-000	BOLT	2	Rp17.500
15	08316-1008A-000 SUB: 08316B1008AN000	NUT	4	Rp3.500
16	72361-79J00-000	SEAL, HOOD FRONT	1	Rp289.500
17	72310-80J01-000 SUB: 72310-80J00-000	STAY, FRONT HOOD	1	Rp298.000
18	72330-80J01-5PK SUB: 72330-80J00-5PK	GARNISH ASSY, COWL TOP RH (BLACK)	1	Rp1.711.500
19	72340-80J01-5PK SUB: 72340-80J00-5PK	GARNISH ASSY, COWL TOP LH (BLACK)	1	Rp1.711.500
20	72332-80J00-5PK	•GARNISH, COWL TOP RH (BLACK)	1	Rp593.000
21	72342-80J00-5PK	•GARNISH, COWL TOP LH (BLACK)	1	Rp593.000
22	77553-65D00-000	•CLIP	5	Rp34.000
23	72380-79J00-000	PANEL, COWL FRONT	1	Rp2.069.000
24	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
25	72362-54L00-000 SUB: 72362-79J00-000	SEAL, HOOD REAR	1	Rp305.500
26	72372-63J00-000 SUB: 72372B82000N000	CUSHION	2	Rp8.000
27	09209M09L02-000 SUB: 09209M09007-000	LINKAGE	1	Rp4.500
28	09321-10023-000 SUB: 09321B10023N000	CUSHION	2	Rp6.000
29	09403M07311-000	CLAMP	1	Rp4.500
30	09409-08327-000	CLIP	5	Rp15.000
31	09409-08327-000	CLIP	2	Rp15.000
32	09409-05308-5PK	CLIP (BLACK)	8	Rp19.000
33	72440-80J00-000	SILENCER, FRONT HOOD	1	Rp775.000
34	09409-06325-000	CLIP	10	Rp19.500
35	82110-79J00-000	LATCH, HOOD	1	Rp737.500
36	02162-0616A-000 SUB: 02162-0616C-000	SCREW	3	Rp3.000
37	82160-79J01-000 SUB: 82160-79J00-000	CABLE, HOOD LATCH RELEASE	1	Rp415.000
38	09403M04401-000	CLAMP	3	Rp4.500
39	02162-0616A-000 SUB: 02162-0616C-000	BOLT, HOOD LATCH	1	Rp3.000
