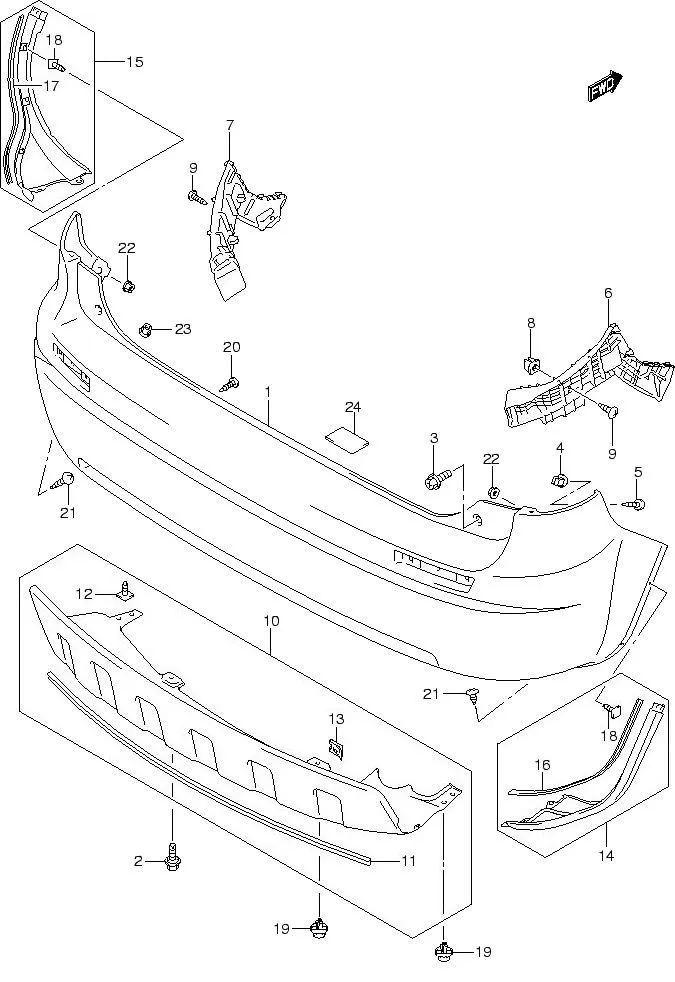

FIG.87 REAR BUMPER

FIG.87 REAR BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71811-80J20-799
SUB: 71811B80J20N799		 BUMPER, REAR (PRIMARY) 1 Rp3.930.500
2 02162-0616A-000
SUB: 02162-0616C-000		 SCREW 2 Rp3.000
3 02162-0616A-000
SUB: 02162-0616C-000		 SCREW 2 Rp3.000
4 71851M70F00-000
SUB: 09148M06007-000		 NUT 2 Rp4.000
5 03241-0616C-000 SCREW 2 Rp17.000
6 71821-80J00-000 HOLDER, RR BUMPER SIDE RH 1 Rp258.500
7 71822-80J00-000 HOLDER, RR BUMPER SIDE LH 1 Rp258.500
8 09148-05044-000 NUT 2 Rp18.000
9 03511-0512A-000 SCREW 6 Rp14.000
10 71860-80J00-5PK EXTENSION, RR BUMPER 1 Rp5.122.000
11 71862-80J00-5PK •PROTECTOR, RR BUMPER EXT (SILVER) 1 Rp272.000
12 77225-78F10-000
SUB: 77225-78F00-000		 •BOLT, BUMPER EXTENSION 2 Rp27.500
13 09148-05047-000
SUB: 09148B05047N000		 •NUT 8 Rp3.500
14 71870-80J00-5PK EXTENSION, RR BPR RH (BLACK) 1 Rp3.026.500
15 71880-80J00-5PK EXTENSION, RR BPR LH (BLACK) 1 Rp2.938.500
16 71872-80J00-5PK •PROTECTOR, BPR EXTENSION (BLACK) 1 Rp245.000
17 71882-80J00-5PK •PROTECTOR, BPR EXTENSION (BLACK) 1 Rp276.000
18 77225-78F10-000
SUB: 77225-78F00-000		 •BOLT, BUMPER EXTENSION 4 Rp27.500
19 09409M07L01-000
SUB: 09409M07332-000		 CLIP 4 Rp5.000
20 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 8 Rp3.500
21 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
22 08316-1005A-000
SUB: 08316B1005AN000		 NUT 4 Rp2.500
23 08316-1005A-000
SUB: 08316B1005AN000		 NUT 2 Rp2.500
24 44281-29C00-000
SUB: 63191-25C00-000		 CUSHION 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
