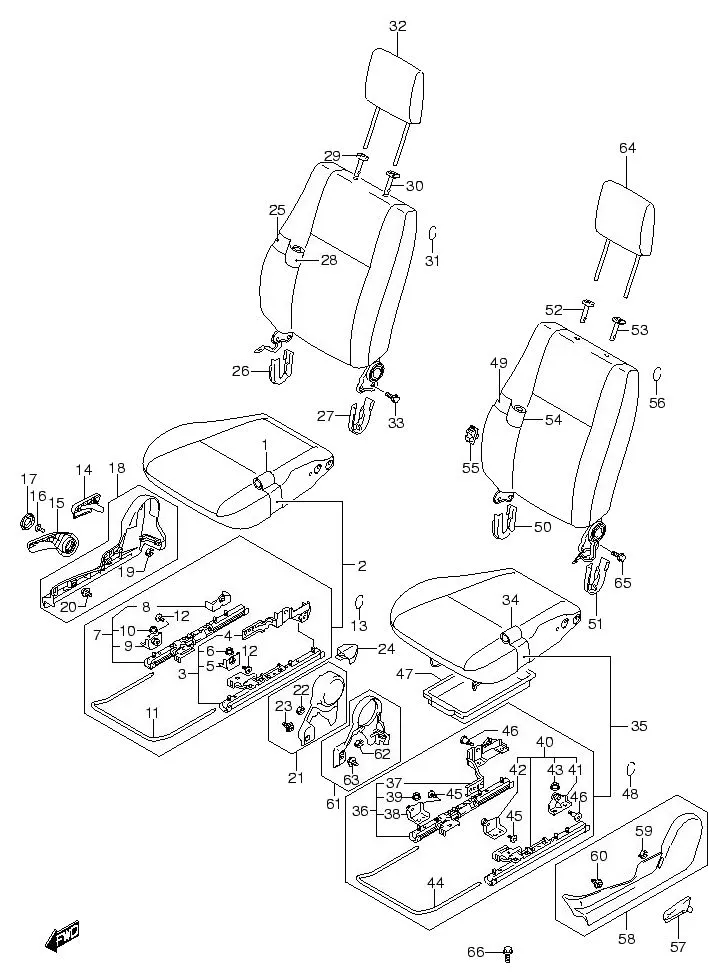

FIG.112 FRONT SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 85180-63J70-CHN	TRIM, FR CUSH RH	1	-
2	DISCONTINUE SUB: 85105-80J20-000	CUSHION S/ASSY, FR RH	1	-
3	DISCONTINUE SUB: 86601-80J20-000	•ADJUSTER SUB ASSY, FR RH	1	-
4	DISCONTINUE SUB: 86712-63J70-000	••RISER, LIFTER RR INSIDE RH	1	-
5	DISCONTINUE SUB: 86721-63J70-000	••RISER, LIFTER FR INSIDE RH	1	-
6	08316-1010A-000 SUB: 08316B1010AN000	••NUT	3	Rp3.500
7	DISCONTINUE SUB: 86603-80J20-000	•ADJUSTER SUB ASSY, FR RH	1	-
8	DISCONTINUE SUB: 86641-63J70-000	••RISER, RR OUTSIDE	1	-
9	DISCONTINUE SUB: 86710-63J70-000	••RISER, LIFTER FR OUTSIDE RH	1	-
10	08316-1010A-000 SUB: 08316B1010AN000	••NUT	3	Rp3.500
11	DISCONTINUE SUB: 86691-63J00-000	•HANDLE, FR SEAT ADJUSTER	1	-
12	DISCONTINUE SUB: 86717-63J70-000	•BOLT	4	-
13	09387-19001-000 SUB: 09387B19001N000	RING	11	Rp9.000
14	85211-65JA0-P4Z SUB: 85211-65J00-P4Z	KNOB, RCLNG RH (GRAY)	1	Rp90.000
15	DISCONTINUE SUB: 85213-63J20-P4Z	LEVER, SEAT LIFTER (GRAY)	1	-
16	09132-05043-000 SUB: 09132B05043N000	SCREW (5X10)	2	Rp17.500
17	DISCONTINUE SUB: 85214-63J20-P4Z	CAP, LIFTER LEVER (GRAY)	1	-
18	85220-63J20-P4Z	COVER, RCLNG OUTSIDE RH (GRAY)	1	Rp488.000
19	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
20	09409-10313-000	•CLIP	2	Rp14.000
21	85240-65J00-P4Z	COVER, FR RCLNG INSIDE RH (GRAY)	1	Rp141.000
22	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
23	09409-10313-000	•CLIP	1	Rp14.000
24	DISCONTINUE SUB: 85243-63J70-000	COVER, RR RISER INSIDE RH	1	-
25	DISCONTINUE SUB: 85305B63JG0N000	BACK S/ASSY, FR RH	1	-
26	DISCONTINUE SUB: 85222M63J00-P4Z	COVER, FF BACK FRAME RH (GRAY)	1	-
27	DISCONTINUE SUB: 85242-63J00-P4Z	COVER, FF BACK FRAME LH (GRAY)	1	-
28	DISCONTINUE SUB: 85380-63J00-CHN	TRIM, FR BACK RH	1	-
29	DISCONTINUE SUB: 85341-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
30	DISCONTINUE SUB: 85840-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
31	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
32	86401-65J02-DJT SUB: 86401-65J00-DJT	HEADRESTRAINT ASSY	1	Rp2.202.000
33	01550-1016A-000 SUB: 01550B1016AN000	BOLT	4	Rp5.500
34	DISCONTINUE SUB: 85680-63J50-CHN	TRIM, FR CUSH LH	1	-
35	DISCONTINUE SUB: 85106-80J40-000	CUSHION S/ASSY, FR LH	1	-
36	DISCONTINUE SUB: 86602-80J00-000	•ADJUSTER SUB ASSY, FR LH	1	-
37	DISCONTINUE SUB: 86762-63J50-000	••RISER, RR INSIDE LH	1	-
38	DISCONTINUE SUB: 86721-63J50-000	••RISER, FR INSIDE	1	-
39	08316-1010A-000 SUB: 08316B1010AN000	••NUT	3	Rp3.500
40	86604-80J01-000 SUB: 86604-80J00-000	•ADJUSTER SUB ASSY, FR LH	1	Rp1.574.000
41	DISCONTINUE SUB: 86641-63J50-000	••RISER, RR OUTSIDE	1	-
42	DISCONTINUE SUB: 86711-63J50-000	••RISER, FR OUTSIDE	1	-
43	08316-1010A-000 SUB: 08316B1010AN000	••NUT	3	Rp3.500
44	DISCONTINUE SUB: 86691-63J00-000	•HANDLE, FR SEAT ADJUSTER	1	-
45	01550-1016A-000 SUB: 01550B1016AN000	•BOLT	2	Rp5.500
46	01550-1035A-000 SUB: 01550B1035AN000	•BOLT	2	Rp5.500
47	85150M63J00-000	TRAY, FR SEAT UNDER	1	Rp111.000
48	09387-19001-000 SUB: 09387B19001N000	RING	11	Rp9.000
49	DISCONTINUE SUB: 85306-63JL0-000	BACK S/ASSY, FR LH	1	-
50	DISCONTINUE SUB: 85222M63J00-P4Z	COVER, FF BACK FRAME RH (GRAY)	1	-
51	DISCONTINUE SUB: 85242-63J00-P4Z	COVER, FF BACK FRAME LH (GRAY)	1	-
52	DISCONTINUE SUB: 85341-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
53	DISCONTINUE SUB: 85840-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
54	DISCONTINUE SUB: 85880-63J50-CHN	TRIM, FR BACK LH	1	-
55	86590-58J01-P4Z	HOOK, SEAT BACK (GRAY)	1	Rp85.500
56	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
57	85711-65JA0-P4Z SUB: 85711-65J00-P4Z	KNOB, RCLNG LH (GRAY)	1	Rp81.500
58	DISCONTINUE SUB: 85720-63J20-P4Z	COVER, RCLNG OUTSIDE LH (GRAY)	1	-
59	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
60	09409-10313-000	•CLIP	2	Rp14.000
61	85740-65J00-P4Z	COVER, FR RCLNG INSIDE LH (GRAY)	1	Rp170.500
62	09409-10308-000 SUB: 09409B10308N000	•CLIP	1	Rp6.500
63	09409-10313-000	•CLIP	1	Rp14.000
64	86401-65J02-DJT SUB: 86401-65J00-DJT	HEADRESTRAINT ASSY	1	Rp2.202.000
65	01550-1016A-000 SUB: 01550B1016AN000	BOLT	4	Rp5.500
66	09119-08097-000 SUB: 09119-08094-000	BOLT (8X25)	8	Rp27.500
