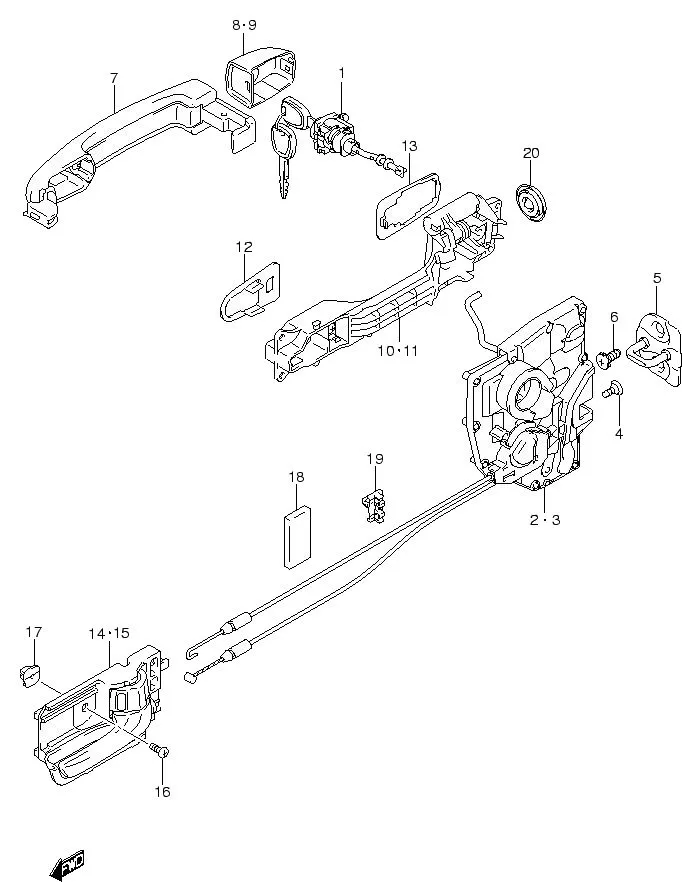

FIG.104 FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 82270-80810-000	CYLINDER, FR DOOR LATCH RH	1	-
2	82201-80J34-000 SUB: 82201-80J30-000	LATCH ASSY, FRONT DOOR RH	1	Rp1.943.000
3	82202-80J44-000 SUB: 82202-80J40-000	LATCH ASSY, FRONT DOOR LH	1	Rp1.893.000
4	09137-06028-000	SCREW, 6X18	6	Rp18.500
5	82610-63J00-000	STRIKER, DOOR LATCH	2	Rp174.500
6	DISCONTINUE SUB: 09137M08004-000	SCREW, 8X18	4	-
7-1	82812-63J00-ZCW	HANDLE, SIDE DOOR OUT (BLUE)	2	Rp539.000
7-2	82812-63J00-ZFM	HANDLE, SIDE DOOR OUT (COPPER)	2	Rp636.000
7-3	82812-63J00-ZFN	HANDLE, SIDE DOOR OUT (BLUE)	2	Rp715.500
7-4	82812-63J00-ZJ3	HANDLE, DOOR OUT (BLACK)	2	Rp475.000
7-5	82812-63J00-ZY4	HANDLE, DOOR OUT (GRAY)	2	Rp723.000
7-6	82812-63J00-Z2S	HANDLE, DOOR OUT (SILVER)	2	Rp476.000
7-7	82812-63J00-Z9T	HANDLE, SIDE DOOR OUT (RED)	2	Rp519.500
8-7	DISCONTINUE SUB: 82813-63J00-Z9T	CAP, FRONT DOOR OUT RH (RED)	1	-
8-6	82813-63J00-Z2S	CAP, FRONT DOOR OUT RH (SILVER)	1	Rp199.500
8-5	82813-63J00-ZY4	CAP, FRONT DOOR OUT RH (GRAY)	1	Rp278.000
8-3	82813-63J00-ZFN	CAP, FRONT DOOR OUT RH (BLUE)	1	Rp278.000
8-2	82813-63J00-ZFM	CAP, FRONT DOOR OUT RH (COPPER)	1	Rp245.500
8-1	DISCONTINUE SUB: 82813-63J00-ZCW	CAP, FRONT DOOR OUT RH (BLUE)	1	-
8-4	82813-63J00-ZJ3	CAP, FRONT DOOR OUT RH (BLACK)	1	Rp199.500
9-1	82813-63J10-ZCW	CAP, FRONT DOOR OUT LH (BLUE)	1	Rp230.500
9-2	DISCONTINUE SUB: 82813-63J10-ZFM	CAP, FRONT DOOR OUT LH (COPPER)	1	-
9-3	82813-63J10-ZFN	CAP, FRONT DOOR OUT LH (BLUE)	1	Rp318.500
9-4	DISCONTINUE SUB: 82813-63J10-ZJ3	CAP, FRONT DOOR OUT LH (BLACK)	1	-
9-5	DISCONTINUE SUB: 82813-63J10-ZY4	CAP, FRONT DOOR OUT LH (GRAY)	1	-
9-6	82813-63J10-Z2S	CAP, FRONT DOOR OUT LH (SILVER)	1	Rp203.000
9-7	82813-63J10-Z9T	CAP, FRONT DOOR OUT LH (RED)	1	Rp311.000
10	82821-63J00-000	FRAME, FRONT DOOR OUT LH	1	Rp452.500
11	82811-63J00-000	FRAME, FRONT DOOR OUT RH	1	Rp452.500
12	82814-63J00-000	PAD, FRONT DOOR OUT	2	Rp46.500
13	82815-63J00-000	CUSHION, SIDE DOOR OUT	2	Rp48.500
14	83110-63J30-BWR	HANDLE, SIDE DOOR INSIDE RH	1	Rp523.000
15	DISCONTINUE SUB: 83130-63J30-BWR	HANDLE, SIDE DOOR INSIDE LH	1	-
16	09132-05058-000	SCREW (5X12)	2	Rp14.000
17	09148-05031-000	NUT	2	Rp18.000
18	77591M75000-000	PAD	2	Rp7.000
19	83271M50E00-000	CLIP, FR DR INSIDE HANDLE ROD	2	Rp6.500
20	09250-25007-000	CAP (OD:25)	2	Rp10.500
