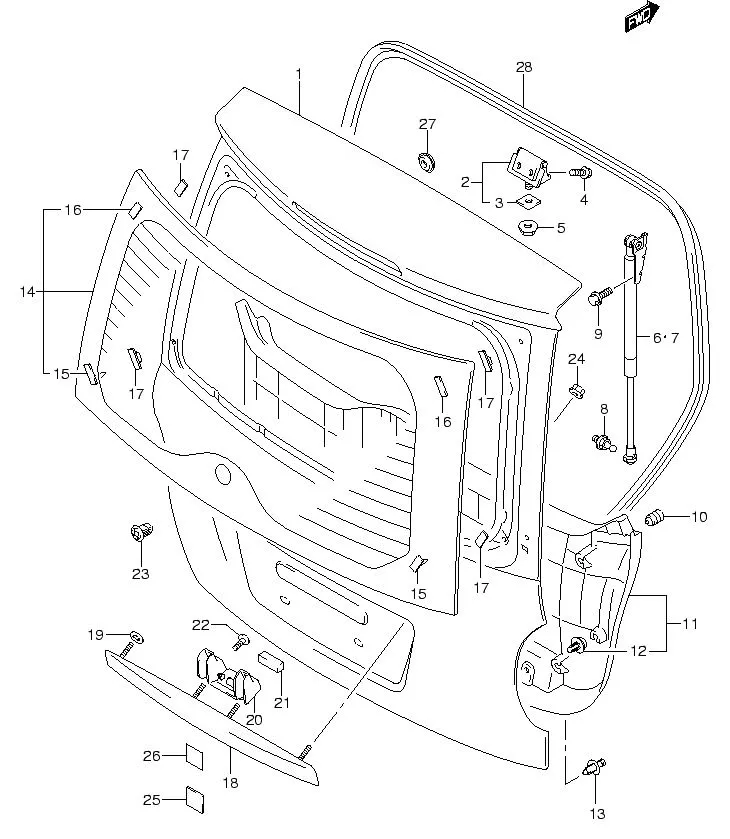

FIG.108 BACK DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	69100-81810-000	PANEL, BACK DOOR	1	Rp9.935.000
2	69510M54G00-000	HINGE, DOOR	2	Rp28.500
3	69571M76G00-000	•PACKING, BACK DR HINGE	2	Rp6.500
4	09111-06086-000	BOLT (6X12)	4	Rp16.000
5	08361-2508A-000	NUT	2	Rp16.500
6	81850-80J02-000 SUB: 81850-80J00-000	BALANCER, BACK DOOR RH	1	Rp1.294.500
7	81860-80J02-000 SUB: 81860-80J00-000	BALANCER, BACK DOOR LH	1	Rp1.294.500
8	81871-80J00-000	BALLSTUD, BACK DOOR BALANCER	2	Rp176.500
9	01551-0812C-000	BOLT	4	Rp19.000
10	82683-60B10-000	CUSHION	2	Rp33.500
11	83770-80J00-P4Z	TRIM, BACK DOOR (GRAY)	1	Rp1.577.500
12	09409-10327-000 SUB: 09409B10312N000	•CLIP	10	Rp5.000
13	09409M07308-P4Z	CLIP, QTR TRIM (GRAY)	1	Rp7.500
14	DISCONTINUE SUB: 84570-80J00-000	GLASS, BACK DOOR WINDOW	1	-
15	84572-74G00-000	•MALE, GLASS FASTENER, NO.1	2	Rp42.500
16	84513-76F00-000	•MALE, GLASS FASTENER, NO.2	2	Rp38.500
17	84515-65D00-000	FEMALE, GLASS FASTENER NO.2	4	Rp45.500
18-1	DISCONTINUE SUB: 83941-80J00-ZCW	GARNISH, BK DOOR LICENSE (BLUE)	1	-
18-7	83941-80J00-Z9T	GARNISH, BK DOOR LICENSE (RED)	1	Rp1.347.000
18-6	83941-80J00-Z2S	GARNISH, BK DOOR LICENSE (SILVER)	1	Rp4.298.000
18-5	DISCONTINUE SUB: 83941-80J00-ZY4	GARNISH, BK DOOR LICENSE (GRAY)	1	-
18-4	83941-80J00-ZJ3	GARNISH, BK DOOR LICENSE (BLACK)	1	Rp4.298.000
18-3	DISCONTINUE SUB: 83941-80J00-ZFN	GARNISH, BK DOOR LICENSE (BLUE)	1	-
18-2	DISCONTINUE SUB: 83941-80J00-ZFM	GARNISH, BK DOOR LICENSE (COPPER)	1	-
19	77122-60B00-000	PACKING, TRUNK LID GARNISH	4	Rp24.000
20	83942-79J00-000	BRACKET, OPENING SWITCH	1	Rp356.000
21	83944-80J00-000	PAD	1	Rp32.000
22	03541-0416A-000 SUB: 03541B0416AN000	SCREW	2	Rp3.500
23	09148-05035-000	NUT	2	Rp18.500
24	08316-1006A-000 SUB: 08316B1006AN000	NUT	4	Rp2.000
25	44281-29C00-000 SUB: 63191-25C00-000	PAD	2	Rp6.000
26	77151-82000-000 SUB: 77151B82000N000	SEAL, SIDE BODY OUTER, REAR	2	Rp7.000
27	09250M20031-000 SUB: 09250M20023-000	CAP (OD:25.8)	1	Rp4.500
28	84681-80J01-000 SUB: 84681-80J00-000	WEATHERSTRIP, BACK DOOR OPNG	1	Rp1.015.000
