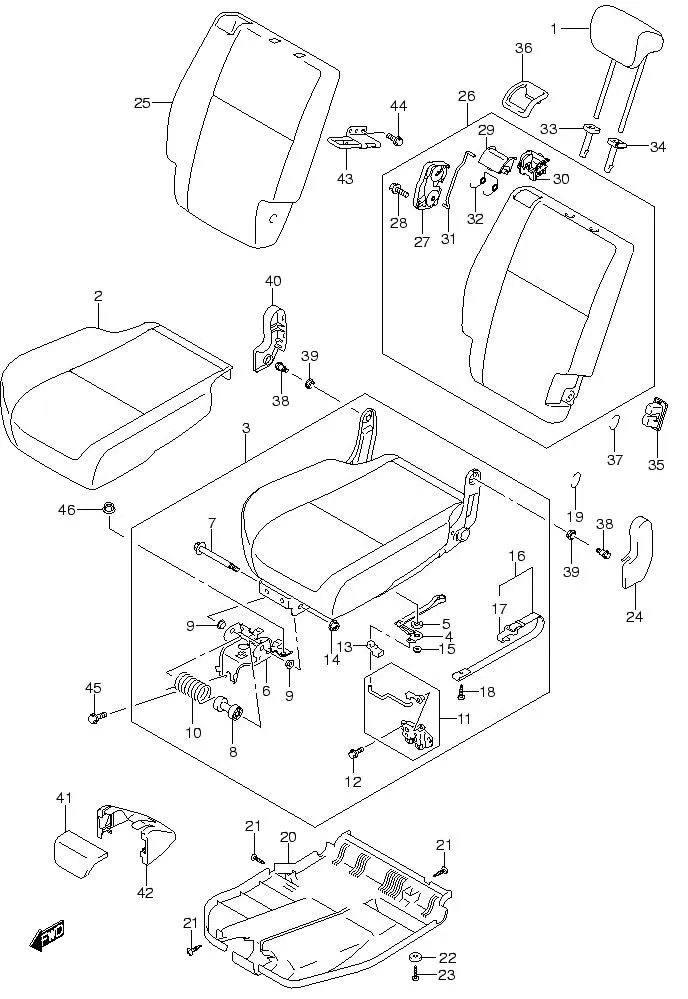

FIG.113 RH REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 86401-66J20-DJT	HEADRESTRAINT ASSY, RR (BLACK)	1	-
2	DISCONTINUE SUB: 87180-80J00-CHP	TRIM, RR CUSH RH	1	-
3	DISCONTINUE SUB: 87105-80J02-000	CUSHION S/ASSY, RR RH	1	-
4	DISCONTINUE SUB: 87132-63J01-000	•LEVER, RELEASE	1	-
5	DISCONTINUE SUB: 87134-63J00-000	•BUSH, CUSH LOCK LEVER	1	-
6	DISCONTINUE SUB: 87150-80J10-000	•BRACKET, RR CUSH LEG RH	1	-
7	DISCONTINUE SUB: 87153-63J01-000	•BOLT, RR CUSH LEG	1	-
8	DISCONTINUE SUB: 87149-66J00-000	•COLLAR, SPRING	1	-
9	DISCONTINUE SUB: 87157-63J00-000	•BUSH, RR CUSH LEG	2	-
10	DISCONTINUE SUB: 87158-64J30-000	•SPRING, RR CUSH LEG	1	-
11	DISCONTINUE SUB: 87460-63J02-000	•LOCK ASSY, RR CUSH RH	1	-
12	09103M11002-000	•BOLT (11X22)	2	Rp7.500
13	09403-04306-000	•CLAMP	1	Rp24.000
14	08316-1008A-000 SUB: 08316B1008AN000	•NUT	1	Rp3.500
15	08316-1008A-000 SUB: 08316B1008AN000	•NUT	1	Rp3.500
16	DISCONTINUE SUB: 87270-66J00-000	•BAND, RR SEAT	1	-
17	DISCONTINUE SUB: 87273-63J00-000	••HOOK, RR SEAT BAND	1	-
18	03141-0616A-000	•SCREW	1	Rp19.500
19	09387-19001-000 SUB: 09387B19001N000	RING	4	Rp9.000
20	DISCONTINUE SUB: 87119-80J00-P4Z	COVER, RR SEAT CUSH RH (GRAY)	1	-
21	03241-0512A-000 SUB: 03241B0512AN000	SCREW	3	Rp3.500
22	DISCONTINUE SUB: 87159-65DA0-000	CUSHION, RR CUSH	1	-
23	03241M0516A-000	SCREW	1	Rp4.500
24	87171-63J02-P4Z	COVER, HINGE INSIDE RH (GRAY)	1	Rp83.000
25	DISCONTINUE SUB: 87380-80J40-CHP	TRIM, RR BACK RH	1	-
26	DISCONTINUE SUB: 87305-80J40-P4Z	BACK S/ASSY, RR RH (GRAY)	1	-
27	87480M62J02-000 SUB: 87480-62J00-000	•LOCK ASSY, RR BACK RH	1	Rp396.000
28	01550-0835A-000 SUB: 01550B0835AN000	•BOLT	2	Rp3.500
29	87483-80J11-P4Z SUB: 87483-80J00-P4Z	•KNOB, RR BACK LOCK (GRAY)	1	Rp80.500
30	87484-80J11-000 SUB: 87484-80J01-000	•CASE, RR BACK LOCK	1	Rp177.000
31	87485-79J00-000	•WIRE, RR BACK LOCK RH	1	Rp49.500
32	87486-79J00-000	•SPRING, BACK KNOB	1	Rp125.000
33	DISCONTINUE SUB: 85341-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
34	DISCONTINUE SUB: 85840-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	1	-
35	87225-53JB0-P4Z SUB: 87225-53JA0-P4Z	COVER, TETHER ANCHOR (GRAY)	1	Rp87.500
36	87482-80J00-P4Z	BEZEL, RR BACK LOCK BUTTON (GRAY)	1	Rp43.500
37	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
38	DISCONTINUE SUB: 87333-63J01-000	BOLT, RR SEAT HINGE OUTER	2	-
39	DISCONTINUE SUB: 87334-63J01-000	BUSH, HINGE OUTER	2	-
40	87172-80J00-P4Z	COVER, SEAT HINGE OUTSIDE, RH (GRAY)	1	Rp124.000
41	87491-80J10-P4Z SUB: 87491-80J00-P4Z	COVER, RR CUSH HINGE FR (GRAY)	1	Rp79.500
42	87492-80J00-P4Z	COVER, RR CUSH HINGE RR (GRAY)	1	Rp162.000
43	DISCONTINUE SUB: 87870-79J00-000	STRIKER, RR BACK	1	-
44	01551-0820A-000	BOLT	3	Rp17.500
45	01551-1025A-000	BOLT	1	Rp29.000
46	08316-1010A-000 SUB: 08316B1010AN000	NUT	2	Rp3.500
