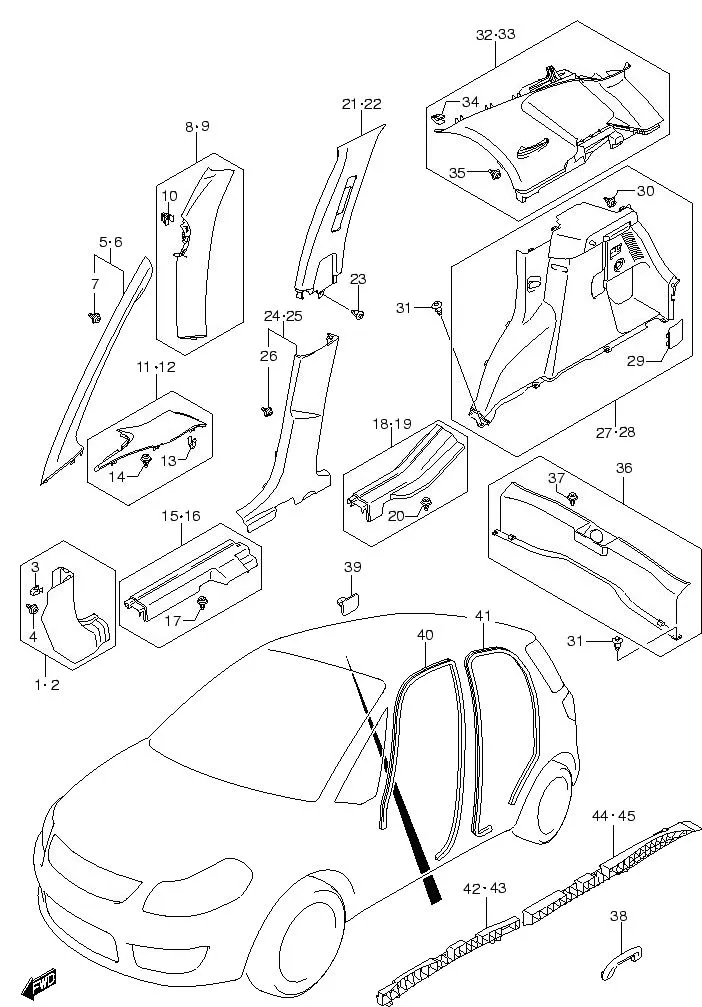

FIG.94 INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76130-80J10-P4Z	TRIM, DASH SIDE RH (GRAY)	1	Rp369.000
2	76140-80J00-P4Z	TRIM, DASH SIDE LH (GRAY)	1	Rp308.500
3	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
4	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
5	76110-80J10-6GS	TRIM, FRONT PILLAR FR RH (GRAY)	1	Rp717.000
6	76120-80J10-6GS	TRIM, FRONT PILLAR FR LH (GRAY)	1	Rp717.000
7	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
8	76330-80J00-6GS	TRIM, FRONT PILLAR RR RH (GRAY)	1	Rp704.000
9	76340-80J00-6GS	TRIM, FRONT PILLAR RR LH (GRAY)	1	Rp704.000
10	09409-07335-000	•CLIP	4	Rp17.500
11	DISCONTINUE SUB: 76310-79J10-P4Z	GARNISH, FR PILLAR LOWER RH (GRAY)	1	-
12	DISCONTINUE SUB: 76320-79J10-P4Z	GARNISH, FR PILLAR LOWER LH (GRAY)	1	-
13	09409-08326-000 SUB: 09409B08326N000	•CLIP	6	Rp8.000
14	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
15	76150-80J00-P4Z	SCUFF, SIDE SILL FRONT RH (GRAY)	1	Rp380.000
16	76160-80J00-P4Z	SCUFF, SIDE SILL FRONT LH (GRAY)	1	Rp380.000
17	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
18	76170-80J00-P4Z	SCUFF, SIDE SILL REAR RH (GRAY)	1	Rp338.000
19	76180-80J00-P4Z	SUFF, SIDE SILL REAR LH (GRAY)	1	Rp338.000
20	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
21	76210-80J00-6GS	TRIM, CTR PILLAR UPR RH (GRAY)	1	Rp674.000
22	76220-80J00-6GS	TRIM, CTR PILLAR UPR LH (GRAY)	1	Rp674.000
23	09409M07308-P4Z	CLIP, QTR TRIM (GRAY)	2	Rp7.500
24	76230-79J00-P4Z	TRIM, CTR PILLAR LOWER RH (GRAY)	1	Rp714.000
25	76240-79J00-P4Z	TRIM, CTR PILLAR LOWER LH (GRAY)	1	Rp714.000
26	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
27	76270-80J00-P4Z	TRIM, QTR INNER LOWER RH (GRAY)	1	Rp3.716.000
28	76280-80J00-P4Z	TRIM, QTR INNER LOWER LH (GRAY)	1	Rp3.716.000
29	76273-79J00-P4Z	•CAP, QTR INNER LOWER (GRAY)	2	Rp275.500
30	09409-10327-000 SUB: 09409B10312N000	•CLIP	6	Rp5.000
31	09409M07308-P4Z	CLIP, QTR TRIM (GRAY)	8	Rp7.500
32	76250-80J00-6GS	TRIM, QTR INNER UPPER RH (GRAY)	1	Rp1.835.000
33	76260-80J00-6GS	TRIM, QTR INNER UPPER LH (GRAY)	1	Rp1.835.000
34	09409-07335-000	•CLIP	10	Rp17.500
35	09409-10327-000 SUB: 09409B10312N000	•CLIP	6	Rp5.000
36	76190-80J00-P4Z	TRIM, TAIL END (GRAY)	1	Rp1.016.000
37	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
38	76410-55G02-6GS	GRIP, ASSISTANT (GRAY)	3	Rp255.500
39	76412-55G00-6GS	CAP, ROOF LINING (GRAY)	2	Rp31.000
40	76291-80J01-000 SUB: 76291-80J00-000	TRIM, FRONT DOOR OPENING	2	Rp963.500
41	76295-80J00-000	TRIM, REAR DOOR OPENING	2	Rp830.000
42	DISCONTINUE SUB: 76451-79J00-000	PAD, ROOF SIDE RAIL FR RH	1	-
43	DISCONTINUE SUB: 76461-79J00-000	PAD, ROOF SIDE RAIL FR LH	1	-
44	DISCONTINUE SUB: 76452-79J00-000	PAD, ROOF SIDE RAIL RR RH	1	-
45	DISCONTINUE SUB: 76462-79J00-000	PAD, ROOF SIDE RAIL RR LH	1	-
