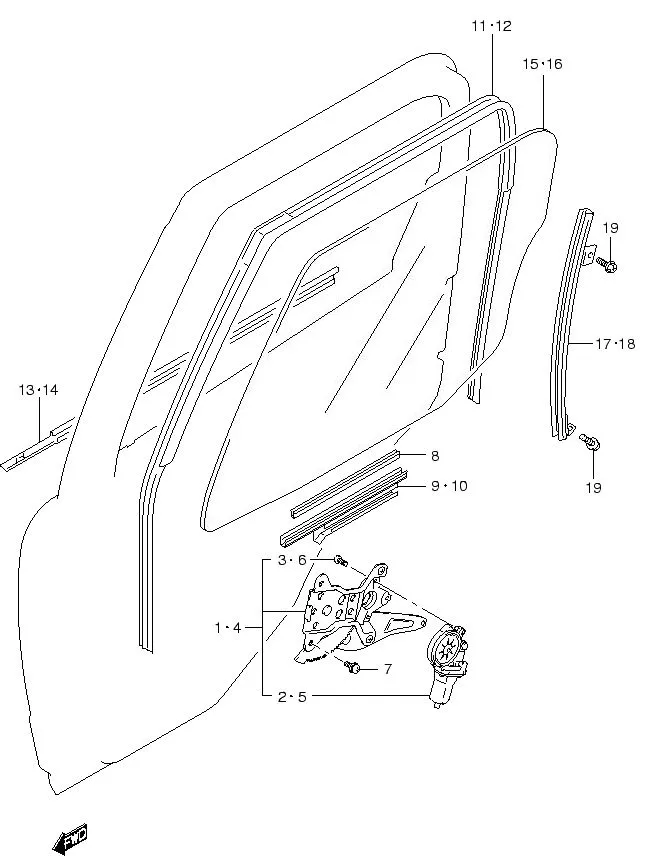

FIG.106 REAR DOOR REGULATOR

FIG.106 REAR DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 83501-79J12-000
SUB: 83501-79J10-000		 REGULATOR ASSY, REAR WINDOW RH 1 Rp2.896.000
2 83510-79J11-000
SUB: 83510-79J10-000		 •REGULATOR S/ASSY, RR WDO RH 1 Rp1.106.500
3 09139-05063-000 •SCREW (5X11) 3 Rp16.000
4 83502-79J12-000
SUB: 83502-79J10-000		 REGULATOR ASSY, REAR WINDOW LH 1 Rp2.896.000
5 83540-79J11-000
SUB: 83540-79J10-000		 •REGULATOR S/ASSY, RR WDO LH 1 Rp1.106.500
6 09139-05063-000 •SCREW (5X11) 3 Rp16.000
7 02112M7612A-000 SCREW 4 Rp5.500
8 83691-60A00-000 RUBBER, GLASS BOTTOM CHANNEL 2 Rp37.000
9 83630M72J00-000 CHANNEL, RR GLASS BOTTOM RH 1 Rp23.500
10 83640M72J00-000 CHANNEL, RR GLASS BOTTOM LH 1 Rp23.500
11 83671-80J00-000 RUN, REAR DOOR GLASS RH 1 Rp1.373.500
12 83675-80J00-000 RUN, REAR DOOR GLASS LH 1 Rp1.373.500
13 83831-80J00-000 WEATHERSTRIP, REAR DOOR OUT RH 1 Rp535.500
14 83841-80J00-000 WEATHERSTRIP, REAR DOOR OUT LH 1 Rp535.500
15 DISCONTINUE
SUB: 84541-80J00-000		 GLASS, REAR DOOR WINDOW RH 1 -
16 DISCONTINUE
SUB: 84546-80J00-000		 GLASS, REAR DOOR WINDOW LH 1 -
17 DISCONTINUE
SUB: 81770-79J00-000		 SASH, REAR DOOR REAR RH 1 -
18 DISCONTINUE
SUB: 81780-79J00-000		 SASH, REAR DOOR REAR LH 1 -
19 02162-0612A-000 SCREW 4 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
