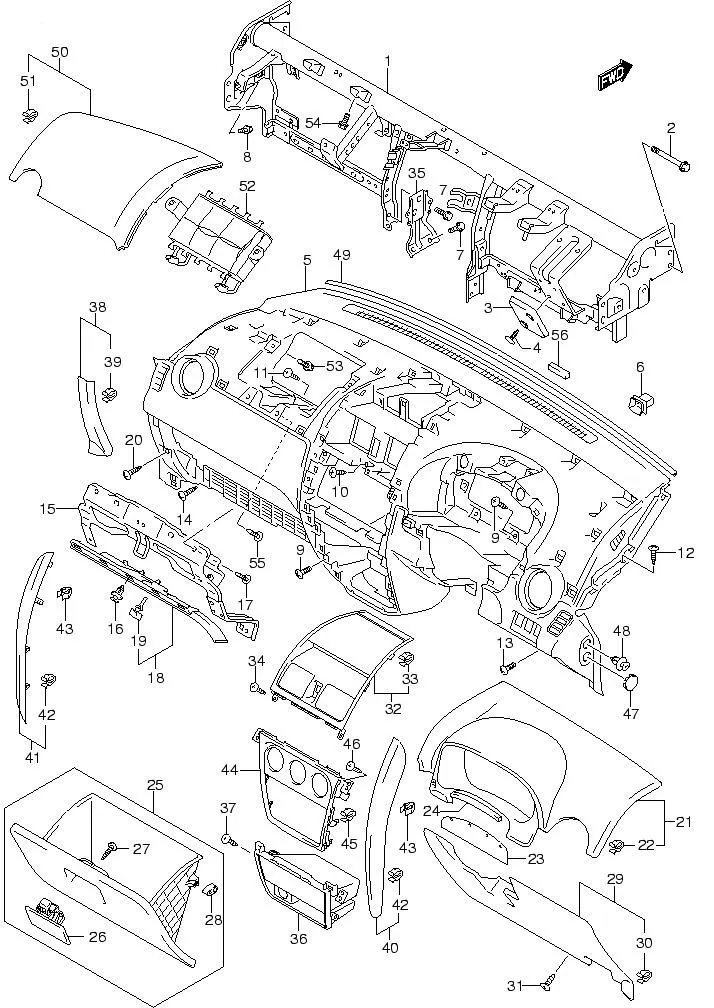

FIG.88 INSTRUMENT PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 73200-80J00-000	MEMBER, STEERING SUPPORT	1	-
2	73291-79J10-000 SUB: 73291-79J01-000	BOLT, STRG SUPPORT SIDE	4	Rp64.000
3	DISCONTINUE SUB: 73812-79J00-000	ABSORBER, DRIVER KNEE BOLSTER	1	-
4	09409-08321-5ES	CLAMP (BLACK)	2	Rp18.500
5	73111-80J02-P4Z SUB: 73111-80J00-P4Z	PANEL, INSTRUMENT MAIN (GRAY)	1	Rp7.321.500
6	73123-51K00-000 SUB: 73123-65J00-000	SOCKET, I/P PIN	5	Rp43.000
7	01551-0816C-000	BOLT	6	Rp17.500
8	02142-0512A-000 SUB: 02142B0512AN000	SCREW	2	Rp3.500
9	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
10	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
11	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
12	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
13	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
14	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
15	DISCONTINUE SUB: 73450-80J00-000	PANEL, ASST KNEE BOLSTER	1	-
16	09409M06322-P4Z	CLIP, CONSOLE BOX (GRAY)	1	Rp4.500
17	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
18	DISCONTINUE SUB: 73840-80J00-P4Z	COVER, GLOVE BOX UPPER (GRAY)	1	-
19	73461M54G00-000	•CUSHION, GLOVE BOX LID	3	Rp5.500
20	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
21	73310-80J00-P4Z	PANEL, INSTRUMENT CLUSTER (GRAY)	1	Rp960.500
22	09409-08326-000 SUB: 09409B08326N000	•CLIP	12	Rp8.000
23	73313-80J00-000	•BLIND, STRG COLUMN HOLE	1	Rp84.500
24	73314-62J00-000	•SEAL, I/P CLUSTER	1	Rp34.000
25	DISCONTINUE SUB: 73410-80J00-P4Z	BOX, GLOVE (GRAY)	1	-
26	73430-63J02-P4Z SUB: 73430-63J00-P4Z	•LOCK, GLOVE BOX (GRAY)	1	Rp370.000
27	03541-0412A-000 SUB: 03541B0412AN000	•SCREW	2	Rp3.500
28	73413-63J00-000	•CUSHION, GLOVE BOX	2	Rp36.000
29	73811-80J00-P4Z	COVER, STRG COLUMN HOLE (GRAY)	1	Rp676.500
30	09409-08326-000 SUB: 09409B08326N000	•CLIP	5	Rp8.000
31	03241M0516A-000	SCREW	2	Rp4.500
32	73820-80J00-P4Z	GARNISH, I/P CTR UPPER (GRAY)	1	Rp809.000
33	09409-08326-000 SUB: 09409B08326N000	•CLIP	2	Rp8.000
34	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
35	DISCONTINUE SUB: 73261-80J00-000	BRACE, STRG SUPPORT MBR LOWER	2	-
36	DISCONTINUE SUB: 73831-80J00-5PK	BOX, I/P CENTER LOWER (BLACK)	1	-
37	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
38	DISCONTINUE SUB: 73842-79J00-P4Z	COVER, GLOVE BOX SIDE (GRAY)	1	-
39	09409-08326-000 SUB: 09409B08326N000	•CLIP	3	Rp8.000
40	73851-80J10-ZFG SUB: 73851-80J00-ZFG	ORNAMENT, I/P CENTER SIDE RH	1	Rp2.517.500
41	73852-80J10-ZFG SUB: 73852-80J00-ZFG	ORNAMENT, I/P CENTER SIDE LH	1	Rp2.517.500
42	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
43	DISCONTINUE SUB: 09409-08339-000	•CLIP	4	-
44	73824-79J00-ZCA	GARNISH, I/P CENTER LOWER (BLACK)	1	Rp1.216.000
45	09409-08326-000 SUB: 09409B08326N000	•CLIP	4	Rp8.000
46	03541-0516A-000 SUB: 03541B0516AN000	SCREW	2	Rp3.500
47	73871-73H00-P4Z SUB: 73871B73H00NP4Z	CAP, I/P SIDE (GRAY)	4	Rp9.000
48	09409-06322-5PK	CLIP (BLACK)	2	Rp19.000
49	DISCONTINUE SUB: 73121-80J10-000	SILENCER, I/P TOP	1	-
50	73910-80J00-P4Z	DOOR ASSY, PASSENGER AIR BAG (GRAY)	1	Rp3.981.000
51	09409-08326-000 SUB: 09409B08326N000	•CLIP	12	Rp8.000
52	73920-80J00-000	HOUSING ASSY, AIR BAG	1	Rp9.959.500
53	DISCONTINUE SUB: 09128-06073-000	SCREW (6X10)	2	-
54	01551-0816C-000	BOLT	2	Rp17.500
55	03241-0512A-000 SUB: 03241B0512AN000	SCREW	2	Rp3.500
56	DISCONTINUE SUB: 73131-79J00-000	CUSHION, I/P CTR UPPER	1	-
