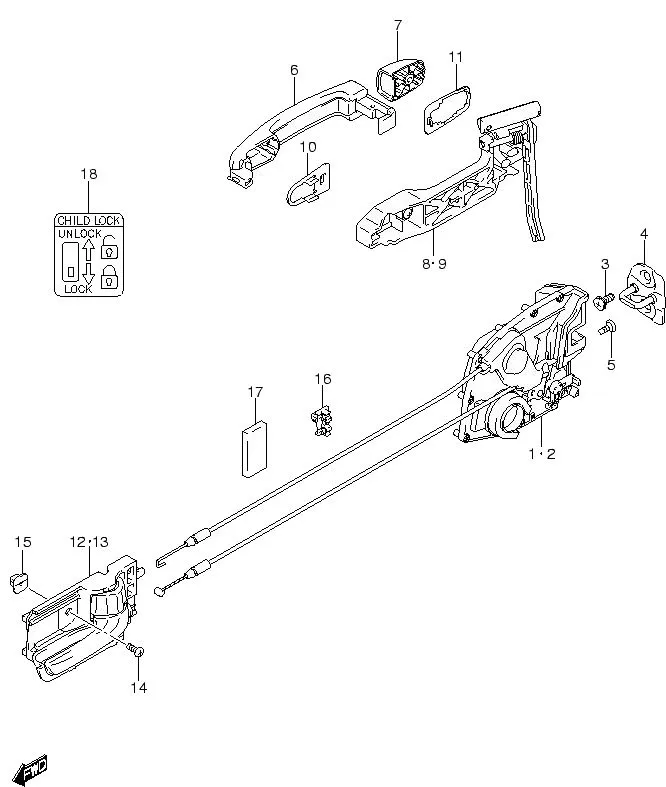

FIG.107 REAR DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	82301-80J25-000 SUB: 82301-80J20-000	LATCH ASSY, REAR DOOR RH	1	Rp1.726.000
2	82302-80J25-000 SUB: 82302-80J20-000	LATCH ASSY, REAR DOOR LH	1	Rp1.726.000
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	82610-63J00-000	STRIKER, DOOR LATCH	2	Rp174.500
5	DISCONTINUE SUB: 09137M08004-000	SCREW (8X18)	4	-
6-1	82812-63J00-ZCW	HANDLE, SIDE DOOR OUT (BLUE)	2	Rp539.000
6-2	82812-63J00-ZFM	HANDLE, SIDE DOOR OUT (COPPER)	2	Rp636.000
6-3	82812-63J00-ZFN	HANDLE, SIDE DOOR OUT (BLUE)	2	Rp715.500
6-4	82812-63J00-ZJ3	HANDLE, DOOR OUT (BLACK)	2	Rp475.000
6-5	82812-63J00-ZY4	HANDLE, DOOR OUT (GRAY)	2	Rp723.000
6-6	82812-63J00-Z2S	HANDLE, DOOR OUT (SILVER)	2	Rp476.000
6-7	82812-63J00-Z9T	HANDLE, SIDE DOOR OUT (RED)	2	Rp519.500
7-4	82833-63J00-ZJ3	CAP, REAR DOOR OUT (BLACK)	2	Rp185.500
7-7	DISCONTINUE SUB: 82833-63J00-Z9T	CAP, REAR DOOR OUT (RED)	2	-
7-6	82833-63J00-Z2S	CAP, REAR DOOR OUT (SILVER)	2	Rp203.500
7-5	DISCONTINUE SUB: 82833-63J00-ZY4	CAP, REAR DOOR OUT (GRAY)	2	-
7-3	DISCONTINUE SUB: 82833-63J00-ZFN	CAP, REAR DOOR OUT (BLUE)	2	-
7-2	DISCONTINUE SUB: 82833-63J00-ZFM	CAP, REAR DOOR OUT (COPPER)	2	-
7-1	DISCONTINUE SUB: 82833-63J00-ZCW	CAP, REAR DOOR OUT (BLUE)	2	-
8	82831-63J20-000	FRAME, REAR DOOR OUT RH	1	Rp552.500
9	82841-63J20-000	FRAME, REAR DOOR OUT LH	1	Rp517.000
10	82834-63J00-000	PAD, REAR DOOR OUT	2	Rp65.000
11	82815-63J00-000	CUSHION, SIDE DOOR OUT	2	Rp48.500
12	83110-63J30-BWR	HANDLE, SIDE DOOR INSIDE RH	1	Rp523.000
13	DISCONTINUE SUB: 83130-63J30-BWR	HANDLE, SIDE DOOR INSIDE LH	1	-
14	09132-05058-000	SCREW (5X12)	2	Rp14.000
15	09148-05031-000	NUT	2	Rp18.000
16	83271M50E00-000	CLIP, FR DR INSIDE HANDLE ROD	2	Rp6.500
17	77591M75000-000	PAD	2	Rp7.000
18	86951-54G00-000 SUB: 86951B54G00N000	CAUTION PLATE, CHILD LOCK	2	Rp14.500
