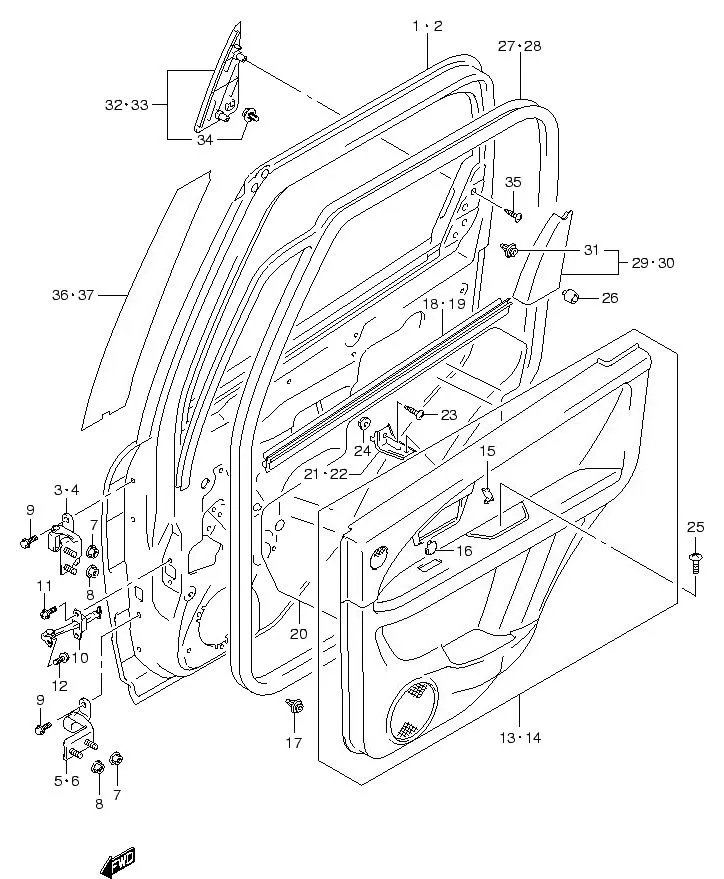

FIG.105 REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	68003-80810-000	PANEL, REAR DOOR RH	1	Rp9.617.000
2	68004-80810-000	PANEL, REAR DOOR LH	1	Rp9.617.000
3	69410-63J00-000	HINGE, REAR DOOR UPPER RH	1	Rp528.000
4	69420-63J00-000	HINGE, REAR DOOR UPPER LH	1	Rp528.000
5	69430-63J00-000	HINGE, REAR DOOR LOWER RH	1	Rp528.000
6	69440-63J00-000	HINGE, REAR DOOR LOWER LH	1	Rp528.000
7	09159-08132-000	NUT	4	Rp19.500
8	08361-2508A-000	NUT	4	Rp16.500
9	09103M08557-000 SUB: 09103M08389-000	BOLT (8X24)	8	Rp8.500
10	81810-54G04-000 SUB: 81810-54G01-000	STOP, SIDE DOOR OPEN	2	Rp447.500
11	09122-86004-000	SCREW (6X20)	4	Rp15.000
12	09112-08004-000	BOLT (8X25)	2	Rp26.000
13	83730-80JB3-CJA SUB: 83730-80JB0-CJA	TRIM, REAR DOOR RH	1	Rp3.550.500
14	83740-80JB2-CJA SUB: 83740-80JB0-CJA	TRIM, REAR DOOR LH	1	Rp5.349.500
15	83752-80J00-5PK	•CAP, SIDE DR INSIDE CASE (BLACK)	2	Rp74.000
16	DISCONTINUE SUB: 83754-80J00-P4Z	•CAP, INSIDE HDL BEZEL (GRAY)	2	-
17	09409-10327-000 SUB: 09409B10312N000	CLIP	14	Rp5.000
18	83851-80J10-000 SUB: 83851-80J00-000	WEATHERSTRIP, FR DR INR RH	1	Rp407.500
19	83861-80J10-000 SUB: 83861-80J00-000	WEATHERSTRIP, FR DR INR LH	1	Rp407.500
20	DISCONTINUE SUB: 83913-80J00-000	COVER, REAR DOOR SEALING	2	-
21	83751-75HA0-000 SUB: 83751B75HA0N000	BRACKET, FRONT DOOR TRIM RH	1	Rp8.000
22	83756-75HA0-000 SUB: 83756B75HA0N000	BRACKET, FRONT DOOR TRIM LH	1	Rp8.000
23	03241M0612A-000	SCREW	2	Rp6.500
24	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
25	09132-05058-000	SCREW (5X12)	2	Rp14.000
26	82711-65J00-000	STOPPER, DOOR	2	Rp34.000
27	84661-80J00-000	WEATHERSTRIP, DOOR OPNG RH	1	Rp1.345.000
28	84671-80J00-000	WEATHERSTRIP, DOOR OPNG LH	1	Rp1.345.000
29	83796-80J00-5PK	GARNISH, REAR DOOR INNER, RH (BLACK)	1	Rp313.000
30	83797-80J00-5PK	GARNISH, REAR DOOR INNER, LH (BLACK)	1	Rp313.000
31	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
32	83970-79J10-000	GARNISH, RR DR RR OUTER RH	1	Rp132.500
33	83980-79J10-000	GARNISH, RR DR RR OUTER LH	1	Rp134.500
34	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
35	03541-0512A-000 SUB: 03541B0512AN000	SCREW	4	Rp3.500
36	83931-81K00-0CB SUB: 83931B80J00N0CB	TAPE, REAR DOOR OUTER FR RH (BLACK)	1	Rp124.000
37	83932-80J00-0CB SUB: 83932B80J00N0CB	TAPE, REAR DOOR OUTER FR LH (BLACK)	1	Rp489.500
