SX4 CBU

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.80 FRONT HOOD PANELFIG.81 FRONT FENDERFIG.82 FRONT BODY PANELFIG.83 FLOOR PANELFIG.84 SIDE BODY PANELFIG.85 ROOF PANELFIG.86 FRONT BUMPERFIG.87 REAR BUMPERFIG.88 INSTRUMENT PANELFIG.89 VENTILATORFIG.90 HEATERFIG.91 HEATER CONTROLFIG.92 CONSOLE BOXFIG.93 FLOOR CARPETFIG.94 INTERIOR TRIMFIG.95 BODY CAP/COVERFIG.96 FUEL LID OPENERFIG.97 ROOF LININGFIG.98 MOLDINGFIG.99 SPLASH GUARDFIG.100 EMBLEMFIG.101 WINDSHIELD GLASSFIG.102 FRONT DOOR PANELFIG.103 FRONT DOOR REGULATORFIG.104 FRONT DOOR LOCKFIG.105 REAR DOOR PANELFIG.106 REAR DOOR REGULATORFIG.107 REAR DOOR LOCKFIG.108 BACK DOOR LOCKFIG.109 BACK DOOR LOCKFIG.110 MIRROR/SUNVISORFIG.111 SEAT BELTFIG.112 FRONT SEATFIG.113 RH REAR SEATFIG.114 LH REAR SEATFIG.115 PARCEL SHELFFIG.116 TOOLFIG.117 FUEL TANKFIG.118 AIR CONDITIONERFIG.119 COMPRESSOR

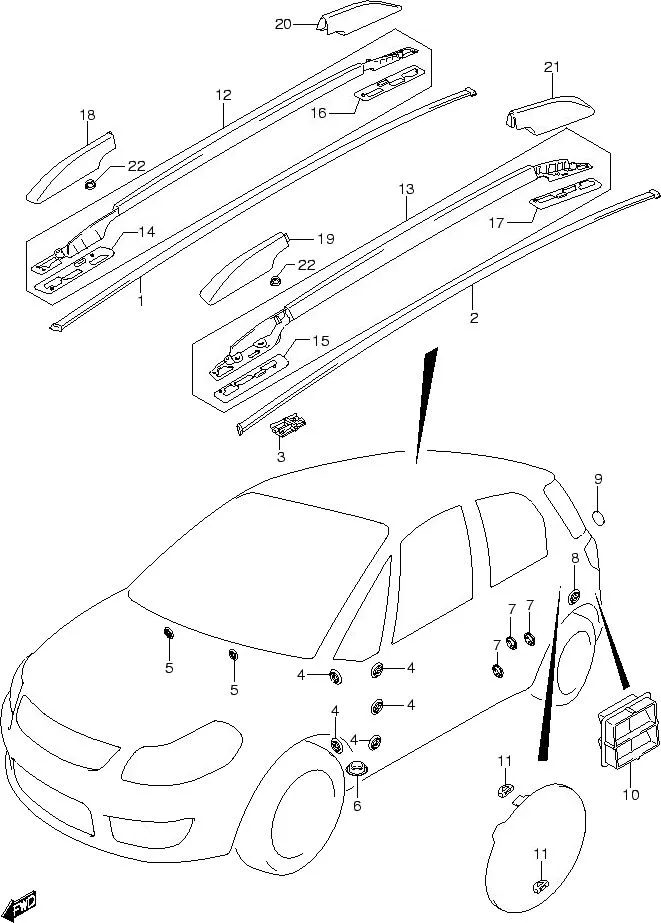

FIG.98 MOLDING

FIG.98 MOLDING
No No. Part Description Qty Price Per Pcs Remarks
1 78130-79J00-000 MOLDING, ROOF RH 1 Rp862.000
2 78140-79J00-000 MOLDING, ROOF LH 1 Rp862.000
3 78170-79J10-000
SUB: 77543-65D10-000		 CLIP, ROOF DRIP MOLDING 12 Rp52.500
4 09250-17001-000
SUB: 09250B17001N000		 CAP (OD:25.5) 10 Rp6.500
5 09250-10016-000
SUB: 09250B10016N000		 CAP (OD:16.2) 2 Rp14.000
6 72397-58J00-000 CAP, DASH LOWER 2 Rp39.000
7 09250-15012-000
SUB: 77111-63J00-000		 CAP 8 Rp5.000
8 09250-17001-000
SUB: 09250B17001N000		 CAP (OD:25.5) 2 Rp6.500
9 DISCONTINUE
SUB: 77191M76F00-000		 FILM, DOOR CUSHION 2 -
10 77330-80J00-000 OUTLET, VENTILATOR 2 Rp289.000
11 77116M60B00-000
SUB: 77116-60B20-000		 CUSHION 2 Rp11.500
12 78210-80J00-N1V RAIL, ROOF RH 1 Rp5.235.500
13 78220-80J00-N1V RAIL, ROOF LH 1 Rp5.235.500
14 78214-80J00-000 •SEAL, ROOF RAIL BASE FR RH 1 Rp140.500
15 78224-80J00-000 •SEAL, ROOF RAIL BASE FR LH 1 Rp130.000
16 78215-80J00-000 •SEAL, ROOF RAIL BASE RR RH 1 Rp136.000
17 78225-80J00-000 •SEAL, ROOF RAIL BASE RR LH 1 Rp130.000
18 78216-80J00-5PK CAP, ROOF RAIL FR RH (BLACK) 1 Rp199.000
19 78226-80J00-5PK CAP, ROOF RAIL FR LH (BLACK) 1 Rp199.000
20 78217-80J00-5PK CAP, ROOF RAIL RR RH (BLACK) 1 Rp199.000
21 78227-80J00-5PK CAP, ROOF RAIL RR LH (BLACK) 1 Rp199.000
22 08361M2506A-000 NUT 8 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
