SX4 CBU

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.80 FRONT HOOD PANEL FIG.81 FRONT FENDER FIG.82 FRONT BODY PANEL FIG.83 FLOOR PANEL FIG.84 SIDE BODY PANEL FIG.85 ROOF PANEL FIG.86 FRONT BUMPER FIG.87 REAR BUMPER FIG.88 INSTRUMENT PANEL FIG.89 VENTILATOR FIG.90 HEATER FIG.91 HEATER CONTROL FIG.92 CONSOLE BOX FIG.93 FLOOR CARPET FIG.94 INTERIOR TRIM FIG.95 BODY CAP/COVER FIG.96 FUEL LID OPENER FIG.97 ROOF LINING FIG.98 MOLDING FIG.99 SPLASH GUARD FIG.100 EMBLEM FIG.101 WINDSHIELD GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR LOCK FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 RH REAR SEAT FIG.114 LH REAR SEAT FIG.115 PARCEL SHELF FIG.116 TOOL FIG.117 FUEL TANK FIG.118 AIR CONDITIONER FIG.119 COMPRESSOR

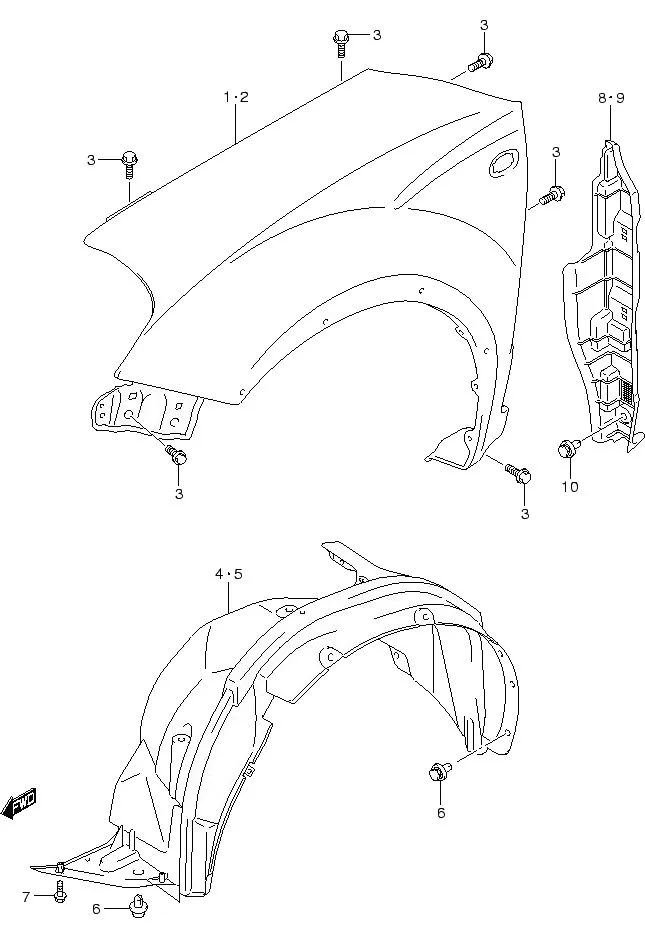

FIG.81 FRONT FENDER

FIG.81 FRONT FENDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57600-81810-000 SUB: 57611-80J30-000	PANEL, FRONT FENDER RH	1	Rp3.276.500
2	57700-80850-000 SUB: 57711-80J30-000	PANEL, FRONT FENDER LH	1	Rp3.276.500
3	DISCONTINUE SUB: 01550B0612AN000	BOLT	12	-
4	72321-80J00-000	LINING, FR FENDER RH	1	Rp710.000
5	72322-80J00-000	LINING, FR FENDER LH	1	Rp710.000
6	09409M07L01-000 SUB: 09409M07332-000	CLIP	22	Rp5.000
7	09136-05068-000 SUB: 09136-05057-000	SCREW (5X20)	4	Rp15.000
8	72351-80J00-000	COVER, FR FENDER RH	1	Rp952.000
9	72352-80J00-000	COVER, FR FENDER LH	1	Rp952.000
10	09409M07L01-000 SUB: 09409M07332-000	CLIP	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
