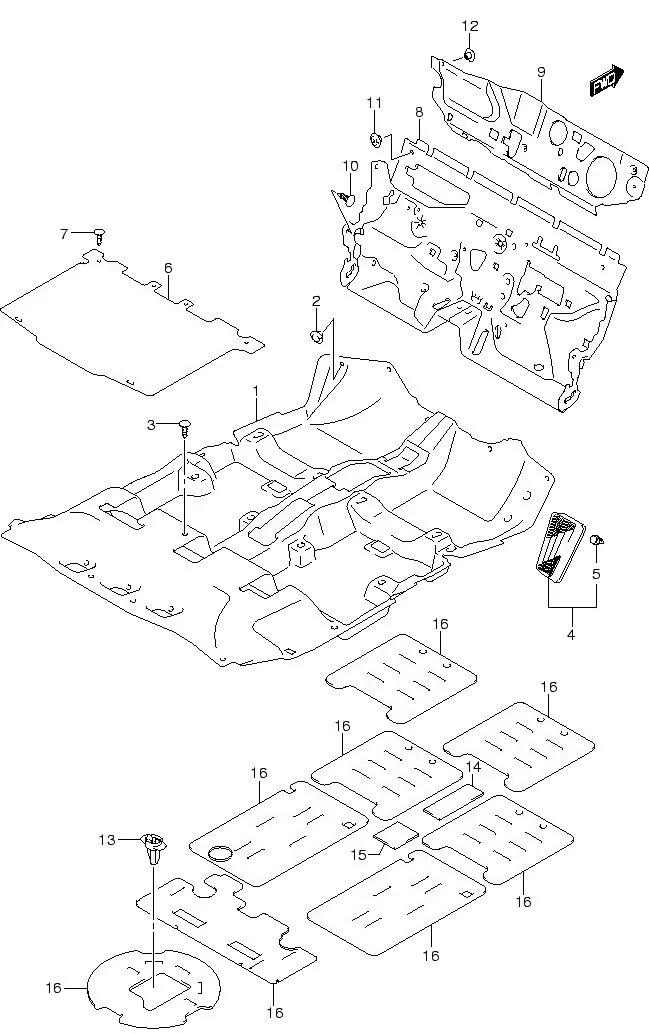

FIG.93 FLOOR CARPET

FIG.93 FLOOR CARPET
No No. Part Description Qty Price Per Pcs Remarks
1-2 75110-80J21-S01
SUB: 75110-80J20-S01		 CARPET, FLOOR (GRAY) 1 Rp4.817.000 W/FOOTREST
1-1 75110-80J01-S01
SUB: 75110-80J00-S01		 CARPET, FLOOR (GRAY) 1 Rp5.788.000 N/FOOTREST
2 09148-05037-000 NUT 2 Rp18.000
3 09409-10302-P4Z CLIP, CARPET (GRAY) 1 Rp19.500
4 75441-80J01-000 PEDAL, FOOTREST 1 Rp122.000
5 DISCONTINUE
SUB: 09409-08340-000		 •CLIP 2 -
6 75130-80J00-S01 CARPET, LUGGAGE FLOOR (GRAY) 1 Rp1.677.500
7 09409-10302-P4Z CLIP, CARPET (GRAY) 4 Rp19.500
8 DISCONTINUE
SUB: 75220-80J00-000		 SILENCER, DASH PANEL 1 -
9 75280-80J00-000 SILENCER, DASH OUTER 1 Rp878.000
10 09409-10302-P4Z CLIP, CARPET (GRAY) 2 Rp19.500
11 09148-05037-000 NUT 6 Rp18.000
12 09148-05037-000 NUT 2 Rp18.000
13 75450-80J00-000
SUB: 75450-54G01-000		 HOLDER, SPARE TIRE 1 Rp125.000
14 DISCONTINUE
SUB: 69133-75H00-000		 SHEET, MAIN FLOOR TUNNEL NO.1 1 -
15 DISCONTINUE
SUB: 75231-79J00-000		 SHEET, MAIN FLOOR TUNNEL NO.2 1 -
16 99611-60A01-000 SHEET, SILENCER (800X1000X3) 1 Rp1.210.000 CUT AS REQUIRED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
