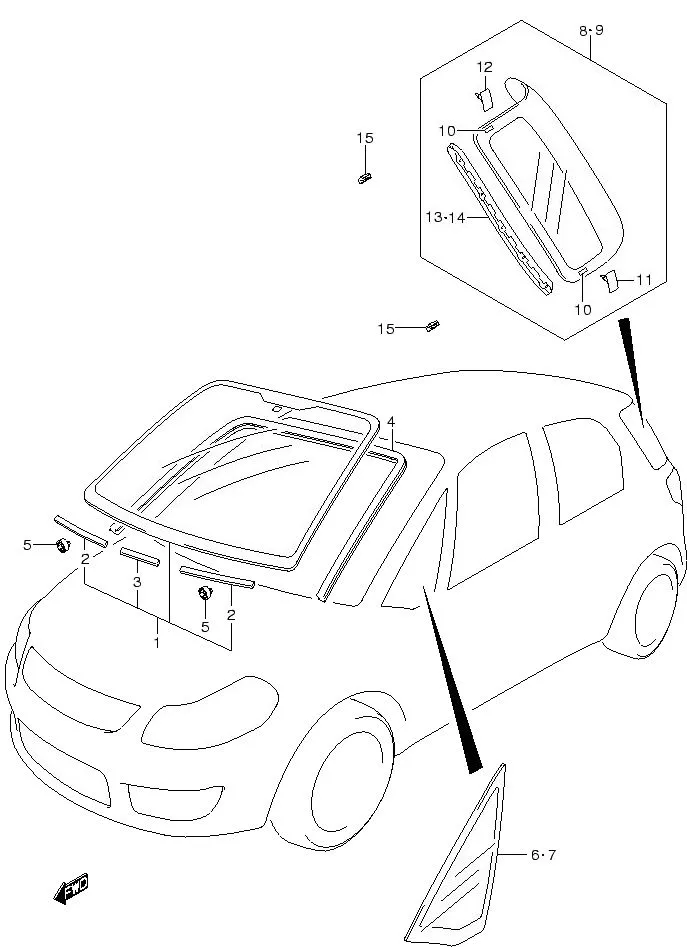

FIG.101 WINDSHIELD GLASS

FIG.101 WINDSHIELD GLASS
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 84510-80J00-000		 GLASS, WINDSHIELD 1 -
2 84617M79F00-000
SUB: 84617M60D00-000		 â?¢SPACER, WINDSHILD GLASS 2 Rp14.500
3 84618-76F00-000
SUB: 84618M76F00-000		 â?¢SPACER, WINDSHIELD GLASS 1 Rp54.500
4 84512-81K00-000
SUB: 84512-79J00-000		 â?¢MOLDING, WINDSHIELD 1 Rp129.500
5 84618-76G10-000 STOPPER, WINDSHILD GLASS 2 Rp30.000
6 DISCONTINUE
SUB: 84550B80J10N000		 GLASS, FR PILLAR WINDOW RH 1 -
7 DISCONTINUE
SUB: 84560B80J10N000		 GLASS, FR PILLAR WINDOW LH 1 -
8 DISCONTINUE
SUB: 84580-80J00-000		 GLASS, QTR WINDOW RH 1 -
9 DISCONTINUE
SUB: 84590-80J00-000		 GLASS, QTR WINDOW LH 1 -
10 84513-76F00-000 â?¢MALE, GLASS FASTENER, NO.2 4 Rp38.500
11 DISCONTINUE
SUB: 84585-80J00-000		 â?¢CLIP, QTR WINDOW LOWER 2 -
12 DISCONTINUE
SUB: 84586-80J00-000		 â?¢CLIP, QTR WINDOW UPPER 2 -
13 84582-80J00-000 â?¢GARNISH, QTR WINDOW GLASS RH 1 Rp316.500
14 84592-80J00-000 â?¢GARNISH, QTR WINDOW GLASS LH 1 Rp316.500
15 84514-65D00-000 FEMALE, GLASS FASTENER NO.1 4 Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
