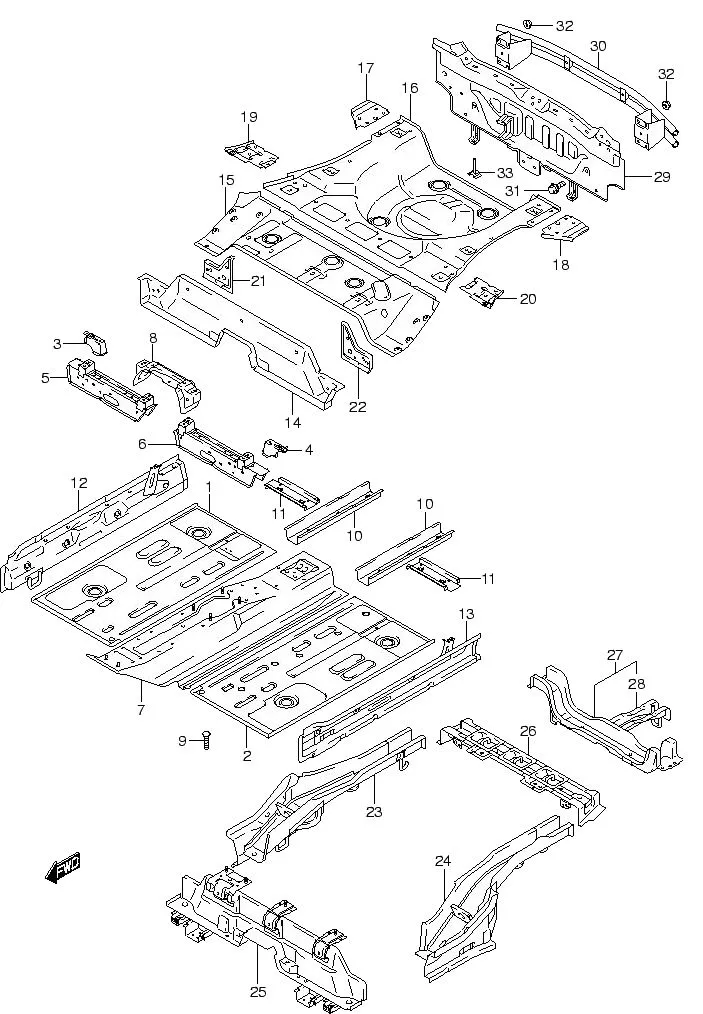

FIG.83 FLOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 61111-63J00-000	PAN, MAIN FLOOR RH	1	-
2	DISCONTINUE SUB: 61161-63J00-000	PAN, MAIN FLOOR LH	1	-
3	61120-80J01-000 SUB: 61120-80J00-000	BRACKET, FR SEAT RR OUT RH	1	Rp936.000
4	61170-80J01-000 SUB: 61170-80J00-000	BRACKET, FR SEAT RR OUT LH	1	Rp936.000
5	DISCONTINUE SUB: 61130-80J00-000	CROSSMEMBER, FLR PAN UPR RH	1	-
6	DISCONTINUE SUB: 61180-80J00-000	CROSSMEMBER, FLR PAN UPR LH	1	-
7	61210-54L00-000 SUB: 61210-80J00-000	TUNNEL, MAIN FLOOR	1	Rp5.864.000
8	DISCONTINUE SUB: 61230-79J01-000	BRACKET, FR SEAT RR INSIDE	1	-
9	09119-05018-000	STUD BOLT	3	Rp13.000
10	DISCONTINUE SUB: 61241-63J00-000	MEMBER, FLOOR SIDE REAR	2	-
11	61242-54L00-000 SUB: 61242-79J00-000	CROSSMEMBER, FLOOR PAN LWR	2	Rp520.000
12	DISCONTINUE SUB: 61310-80J00-000	PANEL, SIDE SILL INNER RH	1	-
13	DISCONTINUE SUB: 61320-80J00-000	PANEL, SIDE SILL INNER LH	1	-
14	DISCONTINUE SUB: 61511-80J00-000	PANEL, RR FLOOR FR	1	-
15	DISCONTINUE SUB: 61512-80J00-000	PANEL, RR FLOOR CTR	1	-
16	DISCONTINUE SUB: 61513-80J00-000	PANEL, RR FLOOR RR	1	-
17	DISCONTINUE SUB: 61514-79J00-000	EXTENSION, RR FLOOR SIDE RH	1	-
18	DISCONTINUE SUB: 61515-79J00-000	EXTENSION, RR FLOOR SIDE LH	1	-
19	DISCONTINUE SUB: 61521-80J00-000	REINF, RR SEAT BELT SIDE RH	1	-
20	DISCONTINUE SUB: 61522-80J00-000	REINF, RR SEAT BELT SIDE LH	1	-
21	DISCONTINUE SUB: 61531-79J00-000	REINF, RR FLR FR PANEL RH	1	-
22	DISCONTINUE SUB: 61532-79J00-000	REINF, RR FLR FR PANEL LH	1	-
23	DISCONTINUE SUB: 62100-80J00-000	MEMBER, RR FLOOR SIDE RH	1	-
24	DISCONTINUE SUB: 62300-80J00-000	MEMBER, RR FLOOR SIDE LH	1	-
25	DISCONTINUE SUB: 62600-80J01-000	CROSSMEMBER, RR FLOOR FR	1	-
26	DISCONTINUE SUB: 62700-80J00-000	CROSSMEMBER, RR FLOOR CTR	1	-
27	62800-80J20-000 SUB: 62800-80J00-000	CROSSMEMBER, RR FLOOR RR	1	Rp4.972.500
28	DISCONTINUE SUB: 62830-80J00-000	•HOOK, TOWING REAR	1	-
29	65500-80J01-000 SUB: 65500-80J00-000	PANEL, BACK	1	Rp4.510.500
30	65560-79J10-000	MEMBER, REAR BUMPER	1	Rp2.305.500
31	DISCONTINUE SUB: 01550B0612AN000	BOLT	6	-
32	08316-1008A-000 SUB: 08316B1008AN000	NUT	4	Rp3.500
33	61518-80J00-000	BRACKET, SPARE TIRE	1	Rp84.000
