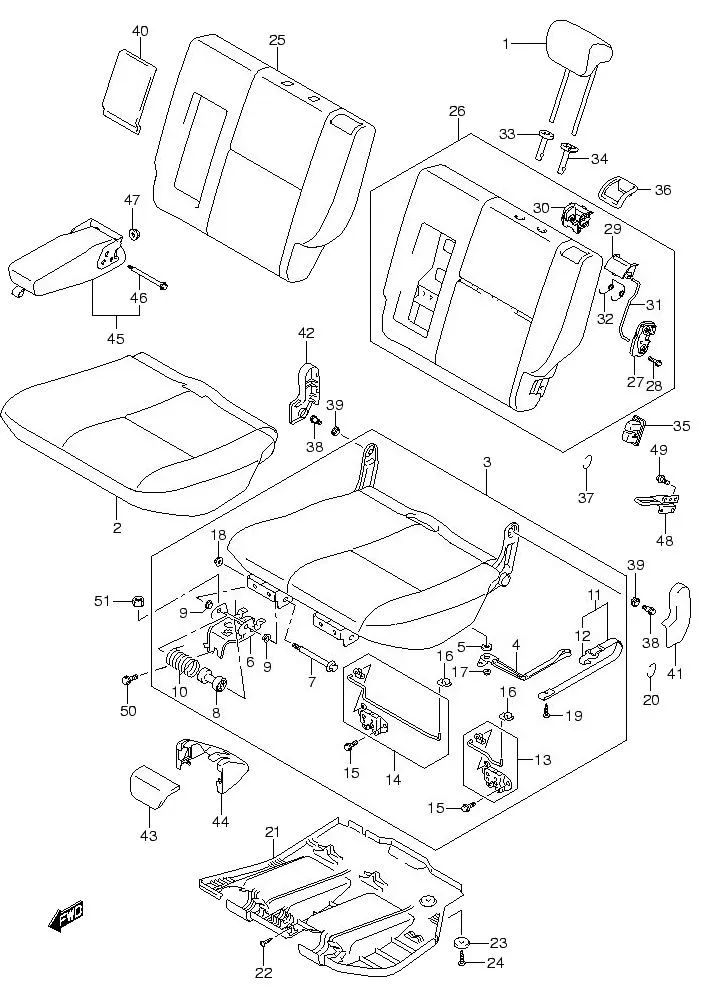

FIG.114 LH REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	DISCONTINUE SUB: 86401-66J20-DJT	HEADRESTRAINT ASSY, RR (BLACK)	2	-
2	DISCONTINUE SUB: 87680-80J00-CHP	TRIM, RR CUSH LH	1	-
3	DISCONTINUE SUB: 87106-80J01-000	CUSHION S/ASSY, RR LH	1	-
4	DISCONTINUE SUB: 87632-63J01-000	•LEVER, LOCK RELEASE LH	1	-
5	DISCONTINUE SUB: 87134-63J00-000	•BUSH, CUSH LOCK LEVER	1	-
6	DISCONTINUE SUB: 87650-80J00-000	•BRACKET, RR CUSH LEG LH	2	-
7	DISCONTINUE SUB: 87153-63J01-000	•BOLT, RR CUSH LEG	2	-
8	DISCONTINUE SUB: 87149-66J00-000	•COLLAR, SPRING	2	-
9	DISCONTINUE SUB: 87157-63J00-000	•BUSH, RR CUSH LEG	4	-
10	DISCONTINUE SUB: 87658-63J00-000	•SPRING, RR CUSHION LEG	2	-
11	DISCONTINUE SUB: 87270-66J00-000	•BAND, RR SEAT	1	-
12	DISCONTINUE SUB: 87273-63J00-000	••HOOK, RR SEAT BAND	1	-
13	DISCONTINUE SUB: 87960-63J02-000	•LOCK ASSY, RR CUSH LH	1	-
14	DISCONTINUE SUB: 87960-63J12-000	•LOCK ASSY, RR CUSH LH	1	-
15	09103M11002-000	•BOLT (11X22)	4	Rp7.500
16	09403-04306-000	•CLAMP	2	Rp24.000
17	08316-1008A-000 SUB: 08316B1008AN000	•NUT	2	Rp3.500
18	08316-1008A-000 SUB: 08316B1008AN000	•NUT	1	Rp3.500
19	03141-0616A-000	•SCREW	1	Rp19.500
20	09387-19001-000 SUB: 09387B19001N000	RING	6	Rp9.000
21	DISCONTINUE SUB: 87619-80J00-P4Z	COVER, RR SEAT CUSH LH (GRAY)	1	-
22	03241-0512A-000 SUB: 03241B0512AN000	SCREW	4	Rp3.500
23	DISCONTINUE SUB: 87159-65DA0-000	CUSHION, RR CUSH	1	-
24	03241M0516A-000	SCREW	1	Rp4.500
25	DISCONTINUE SUB: 87880-80J60-CHP	TRIM, RR BACK LH	1	-
26	DISCONTINUE SUB: 87306-80J60-P4Z	BACK S/ASSY, RR BACK LH (GRAY)	1	-
27	DISCONTINUE SUB: 87980-62J00-000	•LOCK ASSY, RR BACK LH	1	-
28	01550-0835A-000 SUB: 01550B0835AN000	•BOLT	2	Rp3.500
29	87483-80J11-P4Z SUB: 87483-80J00-P4Z	•KNOB, RR BACK LOCK (GRAY)	1	Rp80.500
30	87484-80J11-000 SUB: 87484-80J01-000	•CASE, RR BACK LOCK	1	Rp177.000
31	87985-79J00-000	•WIRE, RR BACK LOCK LH	1	Rp50.500
32	87486-79J00-000	•SPRING, BACK KNOB	1	Rp125.000
33	DISCONTINUE SUB: 85341-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	2	-
34	DISCONTINUE SUB: 85840-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	2	-
35	87225-53JB0-P4Z SUB: 87225-53JA0-P4Z	COVER, TETHER ANCHOR (GRAY)	2	Rp87.500
36	87482-80J00-P4Z	BEZEL, RR BACK LOCK BUTTON (GRAY)	1	Rp50.500
37	09387-19001-000 SUB: 09387B19001N000	RING	3	Rp9.000
38	DISCONTINUE SUB: 87333-63J01-000	BOLT, RR SEAT HINGE OUTER	2	-
39	DISCONTINUE SUB: 87334-63J01-000	BUSH, HINGE OUTER	2	-
40	DISCONTINUE SUB: 87541-66J00-P4Z	COVER, RR ARMREST HOLE	1	-
41	87672-80J00-P4Z	COVER, SEAT HINGE OUTSIDE LH (GRAY)	1	Rp82.000
42	DISCONTINUE SUB: 87671-63J02-P4Z	COVER, HINGE INSIDE LH (GRAY)	1	-
43	87491-80J10-P4Z SUB: 87491-80J00-P4Z	COVER, RR CUSH HINGE FR (GRAY)	2	Rp102.500
44	87992-80J00-P4Z	COVER, RR CUSH HINGE RR (GRAY)	2	Rp117.500
45	DISCONTINUE SUB: 87501-80J00-DJT	ARMREST ASSY, RR (BLACK)	1	-
46	DISCONTINUE SUB: 87571-80J00-000	•BOLT, ARMREST	2	-
47	08316-1008A-000 SUB: 08316B1008AN000	NUT	2	Rp3.500
48	DISCONTINUE SUB: 87870-79J00-000	STRIKER, RR BACK	1	-
49	01551-0820A-000	BOLT	3	Rp17.500
50	01551-1025A-000	BOLT	2	Rp29.000
51	08316-1010A-000 SUB: 08316B1010AN000	NUT	2	Rp3.500
