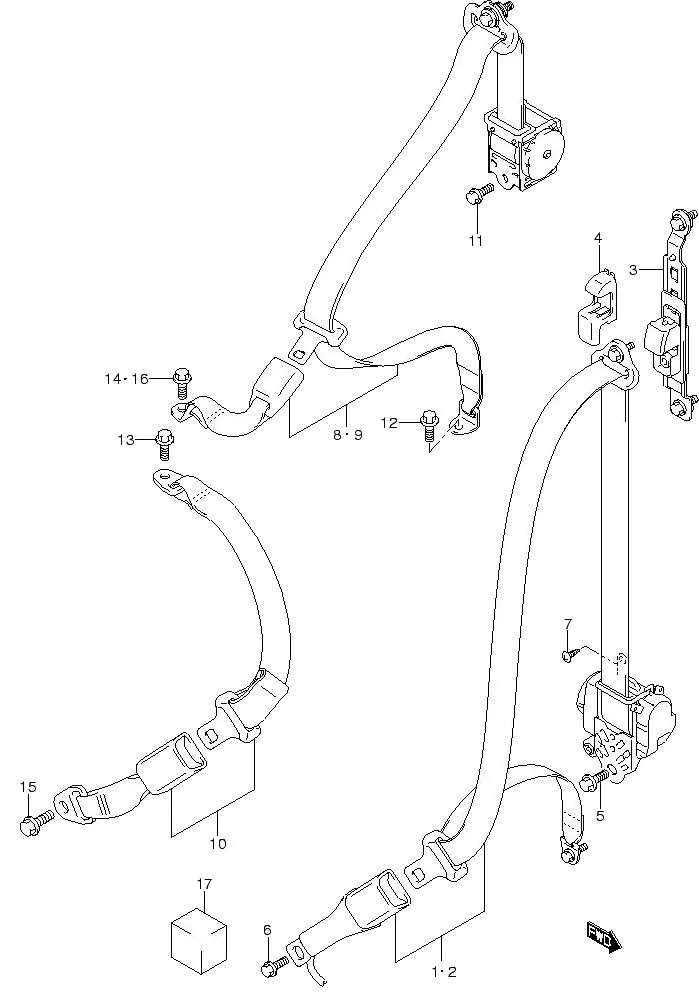

FIG.111 SEAT BELT

FIG.111 SEAT BELT
No No. Part Description Qty Price Per Pcs Remarks
1 84901-80J31-BHE
SUB: 84901-80J30-BHE		 BELT ASSY, FR RH 1 Rp7.307.500
2 84902-80J21-BHE
SUB: 84902-80J20-BHE		 BELT ASSY, FR LH 1 Rp7.307.500
3 DISCONTINUE
SUB: 84990-80J00-6GS		 ADJUSTER, FR SHOULDER (GRAY) 2 -
4 DISCONTINUE
SUB: 84991-65J00-6GS		 COVER, SHOULDER ADJUSTER (GRAY) 2 -
5 09103-11001-000 BOLT (16X22) 2 Rp25.000
6 09117M11002-000 BOLT (11X20) 2 Rp19.000
7 03141M0612A-000 SCREW 2 Rp4.500
8 84904-80J11-5PK
SUB: 84904-80J10-5PK		 BELT ASSY, RR RH (BLACK) 1 Rp2.595.000
9 DISCONTINUE
SUB: 84905-80J10-5PK		 BELT ASSY, RR LH (BLACK) 1 -
10 DISCONTINUE
SUB: 84906-80J10-5PK		 BELT ASSY, RR CENTER (BLACK) 1 -
11 09103M11002-000 BOLT (11X22) 2 Rp7.500
12 09103M11002-000 BOLT (11X22) 2 Rp7.500
13 DISCONTINUE
SUB: 09103-11007-000		 BOLT (11X18) 1 -
14 DISCONTINUE
SUB: 09103-11007-000		 BOLT (11X18) 1 -
15 DISCONTINUE
SUB: 09103-11007-000		 BOLT (11X18) 1 -
16 DISCONTINUE
SUB: 09103-11007-000		 BOLT (11X18) 1 -
17 DISCONTINUE
SUB: 84926-80J00-000		 PAD, FR ELR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
