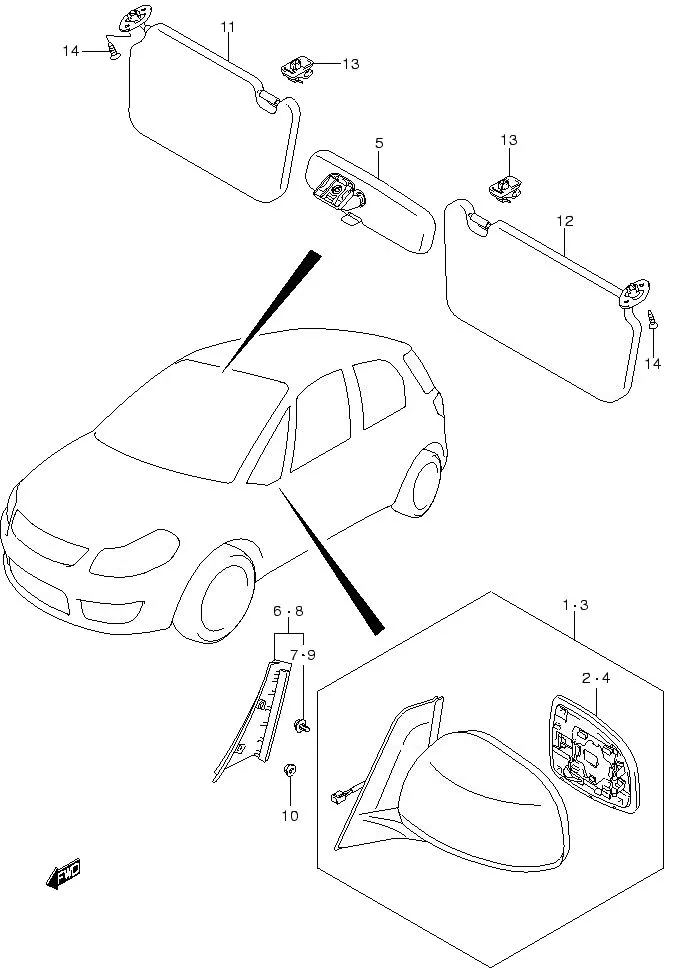

FIG.110 MIRROR/SUNVISOR

No	No. Part	Description	Qty	Price Per Pcs
1-2	DISCONTINUE SUB: 84701-80J30-ZFM	MIRROR, OUT RR VIEW RH (COPPER)	1	-
1-3	DISCONTINUE SUB: 84701-80J30-ZFN	MIRROR, OUT RR VIEW RH (BLUE)	1	-
1-4	DISCONTINUE SUB: 84701-80J30-ZJ3	MIRROR, OUT RR VIEW RH (BLACK)	1	-
1-5	DISCONTINUE SUB: 84701-80J30-ZY4	MIRROR, OUT RR VIEW RH (GRAY)	1	-
1-6	DISCONTINUE SUB: 84701-80J30-Z2S	MIRROR, OUT RR VIEW RH (SILVER)	1	-
1-7	DISCONTINUE SUB: 84701-80J30-Z9T	MIRROR, OUT RR VIEW RH (RED)	1	-
1-1	DISCONTINUE SUB: 84701-80J30-ZCW	MIRROR, OUT RR VIEW RH (BLUE)	1	-
2	84730-80J00-000	•MIRROR, OUT RR VIEW	1	Rp580.000
3-6	DISCONTINUE SUB: 84702-80J30-Z2S	MIRROR, OUT RR VIEW LH (SILVER)	1	-
3-7	DISCONTINUE SUB: 84702-80J30-Z9T	MIRROR, OUT RR VIEW LH (RED)	1	-
3-5	DISCONTINUE SUB: 84702-80J30-ZY4	MIRROR, OUT RR VIEW LH (GRAY)	1	-
3-4	DISCONTINUE SUB: 84702-80J30-ZJ3	MIRROR, OUT RR VIEW LH (BLACK)	1	-
3-3	DISCONTINUE SUB: 84702-80J30-ZFN	MIRROR, OUT RR VIEW LH (BLUE)	1	-
3-2	DISCONTINUE SUB: 84702-80J30-ZFM	MIRROR, OUT RR VIEW LH (COPPER)	1	-
3-1	DISCONTINUE SUB: 84702-80J30-ZCW	MIRROR, OUT RR VIEW LH (BLUE)	1	-
4	84740-80J00-000	•MIRROR, OUT RR VIEW	1	Rp580.000
5	84703-65J00-000 SUB: 84703B65J00N000	MIRROR ASSY, INSIDE REAR VIEW	1	Rp334.000
6	84750-80J00-5PK	GARNISH, RH (BLACK)	1	Rp266.000
7	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
8	84790-80J00-5PK	GARNISH, LH (BLACK)	1	Rp266.000
9	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
10	08316-1006A-000 SUB: 08316B1006AN000	NUT	6	Rp2.000
11	84801-80J30-6GS SUB: 84801B80J30N6GS	SUNVISOR ASSY, RH (GRAY)	1	Rp817.000
12	84802-80J32-6GS SUB: 84802B80J30N6GS	SUNVISOR ASSY, LH (GRAY)	1	Rp1.099.000
13	84851-77K00-6GS SUB: 84851-65D00-6GS	HOLDER, SUNVISOR (GRAY)	2	Rp47.500
14	09139-05061-000	SCREW	4	Rp11.500
