SX4 CBU

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.80 FRONT HOOD PANEL FIG.81 FRONT FENDER FIG.82 FRONT BODY PANEL FIG.83 FLOOR PANEL FIG.84 SIDE BODY PANEL FIG.85 ROOF PANEL FIG.86 FRONT BUMPER FIG.87 REAR BUMPER FIG.88 INSTRUMENT PANEL FIG.89 VENTILATOR FIG.90 HEATER FIG.91 HEATER CONTROL FIG.92 CONSOLE BOX FIG.93 FLOOR CARPET FIG.94 INTERIOR TRIM FIG.95 BODY CAP/COVER FIG.96 FUEL LID OPENER FIG.97 ROOF LINING FIG.98 MOLDING FIG.99 SPLASH GUARD FIG.100 EMBLEM FIG.101 WINDSHIELD GLASS FIG.102 FRONT DOOR PANEL FIG.103 FRONT DOOR REGULATOR FIG.104 FRONT DOOR LOCK FIG.105 REAR DOOR PANEL FIG.106 REAR DOOR REGULATOR FIG.107 REAR DOOR LOCK FIG.108 BACK DOOR LOCK FIG.109 BACK DOOR LOCK FIG.110 MIRROR/SUNVISOR FIG.111 SEAT BELT FIG.112 FRONT SEAT FIG.113 RH REAR SEAT FIG.114 LH REAR SEAT FIG.115 PARCEL SHELF FIG.116 TOOL FIG.117 FUEL TANK FIG.118 AIR CONDITIONER FIG.119 COMPRESSOR

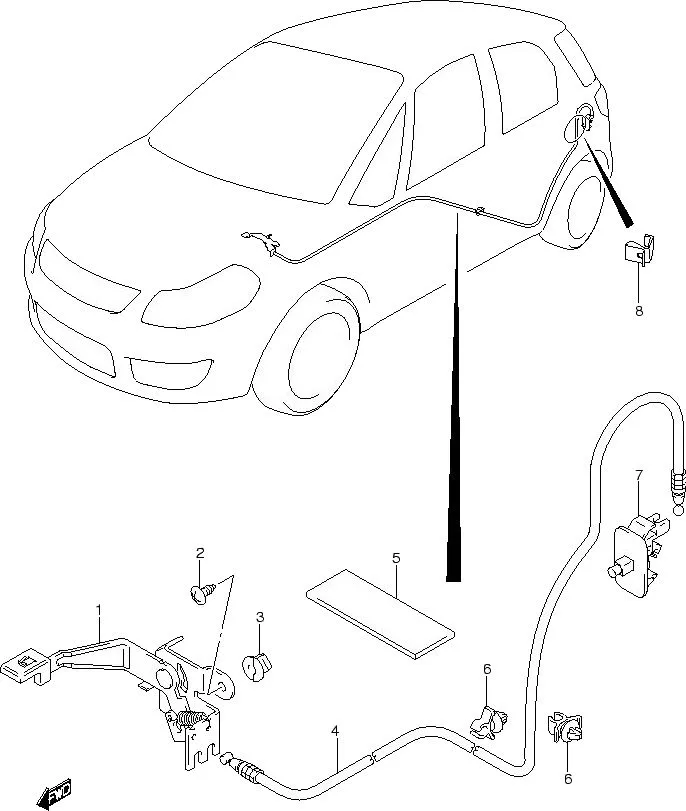

FIG.96 FUEL LID OPENER

FIG.96 FUEL LID OPENER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 76420-63J00-000	LEVER, FUEL LID OPENER	1	-
2	03241M0612A-000	SCREW	1	Rp6.500
3	71851M70F00-000 SUB: 09148M06007-000	NUT	1	Rp4.000
4	76430-79J20-000 SUB: 76430-79J00-000	CABLE, FUEL LID OPENER	1	Rp412.000
5	36930M82000-000 SUB: 36930M82010-000	COVER	1	Rp6.500
6	75411-76G00-000	CLAMP, CABLE	3	Rp31.000
7	76520-63J11-000 SUB: 76520-63J10-000	OPENER, FUEL LID	1	Rp176.000
8	77121-63J00-000	SPRING, FUEL FILLER DOOR	1	Rp49.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
