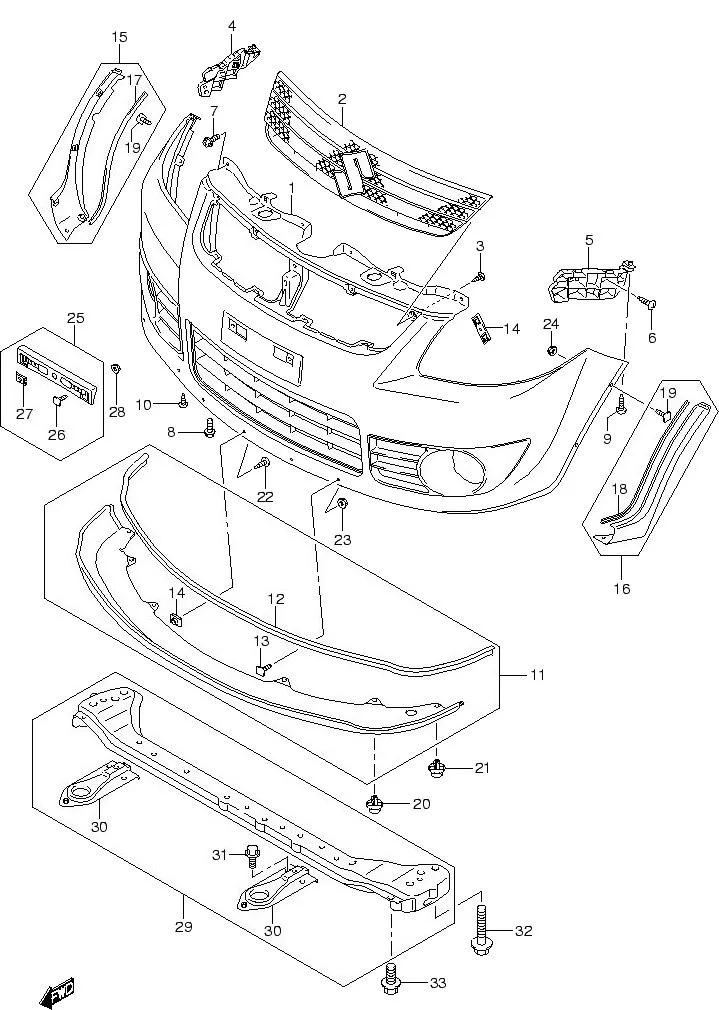

FIG.86 FRONT BUMPER

No	No. Part	Description	Qty	Price Per Pcs
1	71711-80J40-799 SUB: 71711B80J40N799	BUMPER, FRONT (PRIMARY)	1	Rp3.569.000
2	71741-80J00-5PK	GRILLE, RADIATOR (BLACK)	1	Rp1.461.000
3	03541-0412A-000 SUB: 03541B0412AN000	SCREW	5	Rp3.500
4	71731-80J00-000	HOLDER, FR BUMPER SIDE RH	1	Rp155.000
5	71732-80J00-000	HOLDER, FR BUMPER SIDE LH	1	Rp155.000
6	03511-0512A-000	SCREW	4	Rp14.000
7	02162-0616A-000 SUB: 02162-0616C-000	SCREW	4	Rp3.000
8	02162-0616A-000 SUB: 02162-0616C-000	SCREW	2	Rp3.000
9	09136-05068-000 SUB: 09136-05057-000	SCREW (5X20)	2	Rp15.000
10	09136-05068-000 SUB: 09136-05057-000	SCREW (5X20)	3	Rp15.000
11	71760-80J00-5PK	EXTENSION ASSY, FR BUMPER	1	Rp6.456.000
12	71762-80J00-5PK	•PROTECTOR, BUMPER EXT (BLACK)	1	Rp478.500
13	77225-78F10-000 SUB: 77225-78F00-000	•BOLT, BUMPER EXT	2	Rp27.500
14	09148-05047-000 SUB: 09148B05047N000	•NUT	6	Rp3.500
15	71770-80J00-5PK	EXTENSION, BPR SIDE RH (BLACK)	1	Rp401.000
16	71780-80J00-5PK	EXTENSION, BPR SIDE LH (BLACK)	1	Rp401.000
17	71772-80J00-5PK	•PROTECTOR, BPR EXT (BLACK)	1	Rp219.000
18	71782-80J00-5PK	•PROTECTOR, BPR EXT (BLACK)	1	Rp304.500
19	77225-78F10-000 SUB: 77225-78F00-000	•BOLT, BUMPER EXT	6	Rp27.500
20	09409M07L01-000 SUB: 09409M07332-000	CLIP	4	Rp5.000
21	09409M07L01-000 SUB: 09409M07332-000	CLIP	4	Rp5.000
22	03541-0512A-000 SUB: 03541B0512AN000	SCREW	8	Rp3.500
23	08316-1005A-000 SUB: 08316B1005AN000	NUT	2	Rp2.500
24	08316-1005A-000 SUB: 08316B1005AN000	NUT	6	Rp2.500
25	71790-80J00-5PK	GARNISH, FR BUMPER LICENSE	1	Rp293.500
26	77225-78F10-000 SUB: 77225-78F00-000	•BOLT, BUMPER EXT	2	Rp27.500
27	09148-06021-000	•NUT	2	Rp27.500
28	08316-1005A-000 SUB: 08316B1005AN000	NUT	2	Rp2.500
29	71100-80J01-000 SUB: 71100-80J00-000	CROSSMEMBER, FRONT LOWER	1	Rp4.818.000
30	DISCONTINUE SUB: 71131-79J00-000	•BRACKET, RADIATOR	2	-
31	01550-0816A-000 SUB: 01550B0816AN000	•BOLT	4	Rp6.000
32	DISCONTINUE SUB: 09118-10058-000	BOLT (10X50)	4	-
33	01551-1025A-000	BOLT	2	Rp29.000
