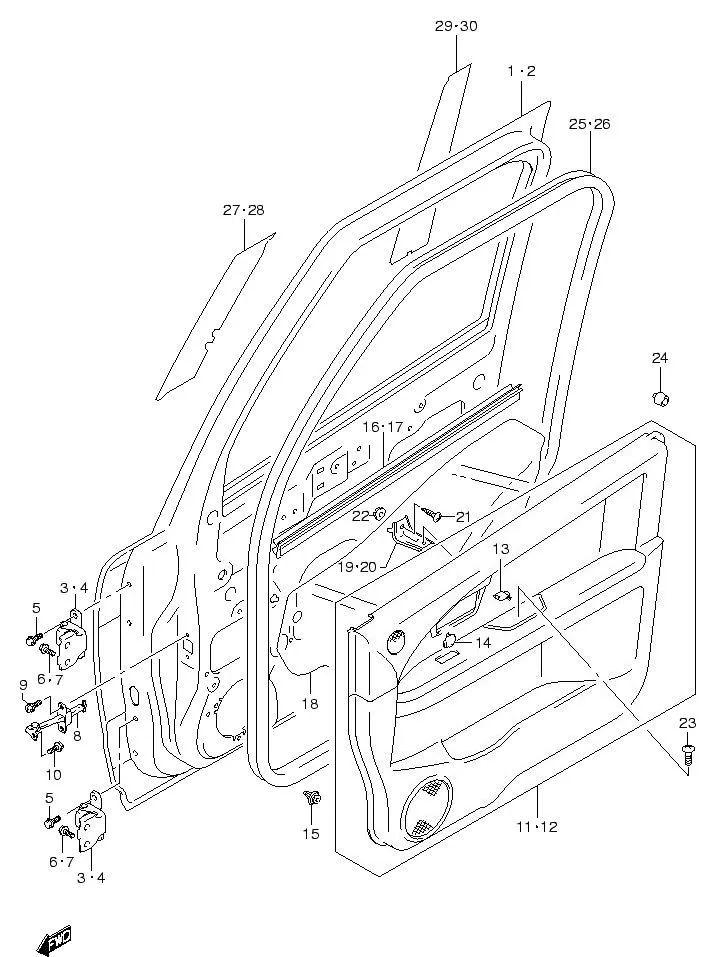

FIG.102 FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	68001-80820-000 SUB: 68001-80810-000	PANEL, FRONT DOOR RH	1	Rp10.021.500
2	68002-80820-000 SUB: 68002-80810-000	PANEL, FRONT DOOR LH	1	Rp10.021.500
3	69310-63J00-000	HINGE, FRONT DOOR NO.1	2	Rp567.500	UPPER RH,LOWER LH
4	69320-63J00-000	HINGE, FRONT DOOR NO.2	2	Rp567.500	UPPER LH,LOWER RH
5	09103M08557-000 SUB: 09103M08389-000	BOLT (8X24)	8	Rp8.500
6	09113-08001-000	BOLT (8X20)	4	Rp19.500
7	01551-0820A-000	BOLT	4	Rp17.500
8	81810-54G04-000 SUB: 81810-54G01-000	STOP, SIDE DOOR OPEN	2	Rp447.500
9	09122-86004-000	SCREW (6X20)	4	Rp16.000
10	09112-08004-000	BOLT (8X25)	2	Rp32.000
11	83710-80JB3-CJA SUB: 83710-80JB0-CJA	TRIM, FRONT DOOR RH	1	Rp5.755.000
12	83720-80JF1-CJA SUB: 83720-80JF0-CJA	TRIM, FRONT DOOR LH	1	Rp4.211.500
13	83752-80J00-5PK	•CAP, SIDE DR INSIDE CASE (BLACK)	2	Rp74.000
14	DISCONTINUE SUB: 83754-80J00-P4Z	•CAP, INSIDE HDL BEZEL (GRAY)	2	-
15	09409-10327-000 SUB: 09409B10312N000	CLIP	16	Rp5.000
16	83851-80J10-000 SUB: 83851-80J00-000	WEATHERSTRIP, FR DR INR RH	1	Rp424.500
17	83861-80J10-000 SUB: 83861-80J00-000	WEATHERSTRIP, FR DR INR LH	1	Rp460.500
18	DISCONTINUE SUB: 83911-80J00-000	COVER, FRONT DOOR SEALING	2	-
19	83751-75HA0-000 SUB: 83751B75HA0N000	BRACKET, FRONT DOOR TRIM RH	1	Rp8.000
20	83756-75HA0-000 SUB: 83756B75HA0N000	BRACKET, FRONT DOOR TRIM LH	1	Rp8.000
21	03241M0612A-000	SCREW	2	Rp6.500
22	71851M70F00-000 SUB: 09148M06007-000	NUT	2	Rp4.000
23	09132-05058-000	SCREW (5X12)	2	Rp17.000
24	82711-65J00-000	STOPPER, DOOR	4	Rp34.000
25	84641-80J00-000	WEATHERSTRIP, DOOR OPNG RH	1	Rp1.513.000
26	84651-80J00-000	WEATHERSTRIP, DOOR OPNG LH	1	Rp1.513.000
27	83921-80J00-0CB SUB: 83921B80J00N0CB	TAPE, DOOR OUTER FR, RH (BLACK)	1	Rp287.000
28	83922-80J00-0CB SUB: 83922B80J00N0CB	TAPE, DOOR OUTER FR, LH (BLACK)	1	Rp287.000
29	DISCONTINUE SUB: 83923B80J00N0CB	TAPE, DOOR OUTER RR, RH (BLACK)	1	-
30	83924-80J00-0CB SUB: 83924B80J00N0CB	TAPE, DOOR OUTER RR, LH (BLACK)	1	Rp513.000
