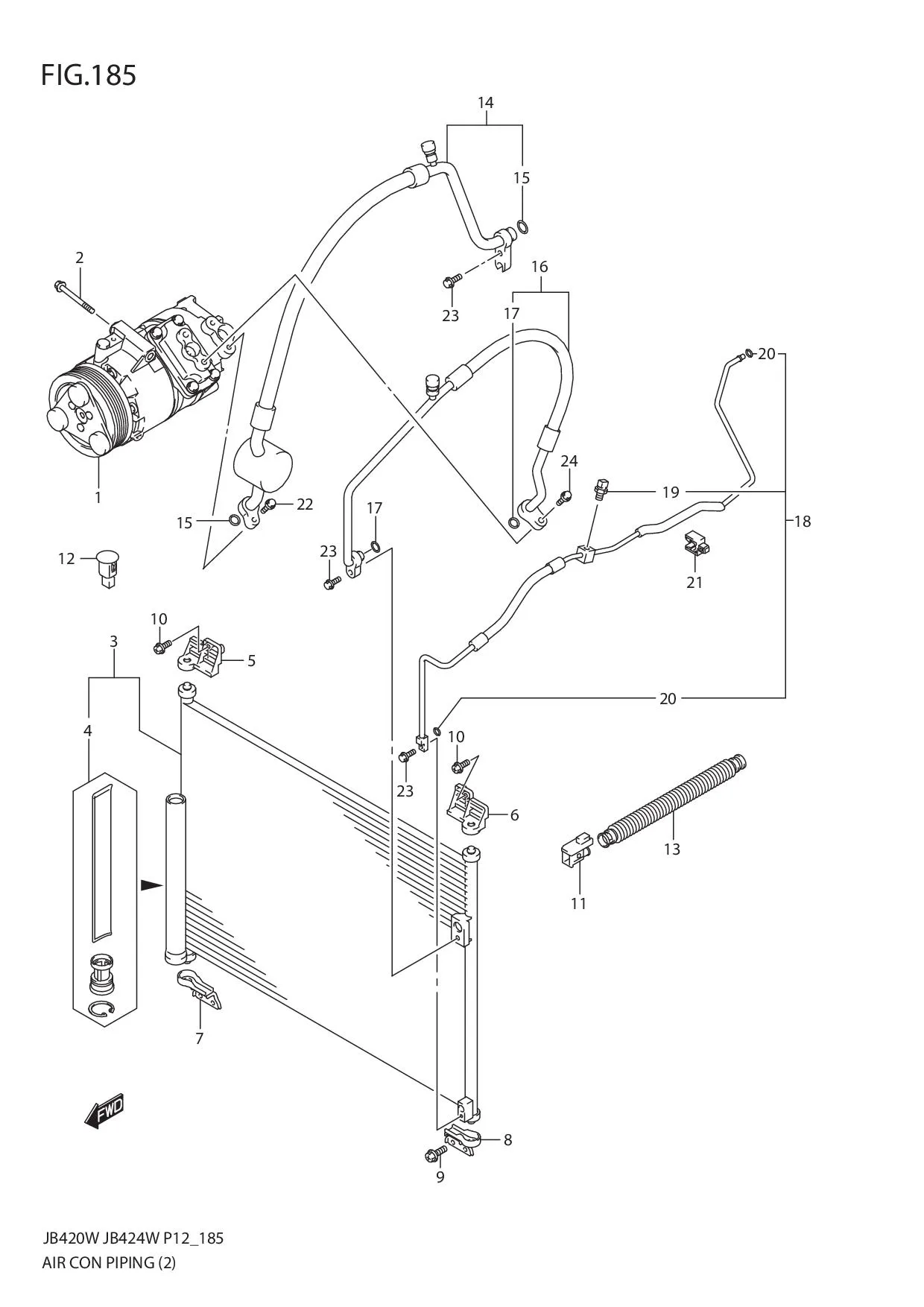

FIG.185 AIR CON PIPING (JB424W)

No	No. Part	Description	Qty	Price Per Pcs
1	95200-76KA1-000 SUB: 95200-76KA0-000	COMPRESSOR ASSY	1	Rp20.479.500
2	01550-0875A-000	BOLT	3	Rp6.000
3	95310-64JA0-000 SUB: 95310-64J00-000	CONDENSER ASSY	1	Rp5.405.500
4	95339-58J10-000	•DRYER KIT	1	Rp690.500
5	95391-64J00-000	BRACKET, COND UPPER RH	1	Rp131.000
6	95391-64J10-000	BRACKET, COND UPPER LH	1	Rp138.000
7	DISCONTINUE SUB: 95392-64J00-000	BRACKET, COND LOWER RH	1	-
8	DISCONTINUE SUB: 95392-64J10-000	BRACKET, COND LOWER LH	1	-
9	02162-0612A-000	BOLT	4	Rp11.000
10	02162-0616A-000	BOLT	2	Rp3.000
11	DISCONTINUE SUB: 95641-59J00-000	SENSOR, ROOM TEMP	1	-
12	95642-54J01-000	SENSOR, SUN LIGHT	1	Rp532.500
13	DISCONTINUE SUB: 95647B64J00N000	DUCT, ROOM TEMP SENSOR	1	-
14	95710-76K00-000	HOSE, SUCTION	1	Rp1.638.500
15	95896-50G00-000 SUB: 95896B50G00N000	•O RING	2	Rp19.000
16	95720-76K00-000	HOSE, DISCHARGE	1	Rp954.500
17	95895-50G00-000 SUB: 95895B50G00N000	•O RING	2	Rp12.500
18	95731-64J00-000	HOSE, LIQUID	1	Rp1.919.000
19	95546-58J00-000 SUB: 95546B58J00N000	•SENSOR, PRESSURE	1	Rp326.000
20	95891-50G00-000 SUB: 95891B50G00N000	•O RING	2	Rp12.500
21	09403M08331-000 SUB: 09403-08331-000	CLAMP	1	Rp6.500
22	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
23	01550-0620B-000 SUB: 01550B0620AN000	BOLT	3	Rp3.500
24	01550-0620B-000 SUB: 01550B0620AN000	BOLT	1	Rp3.500
