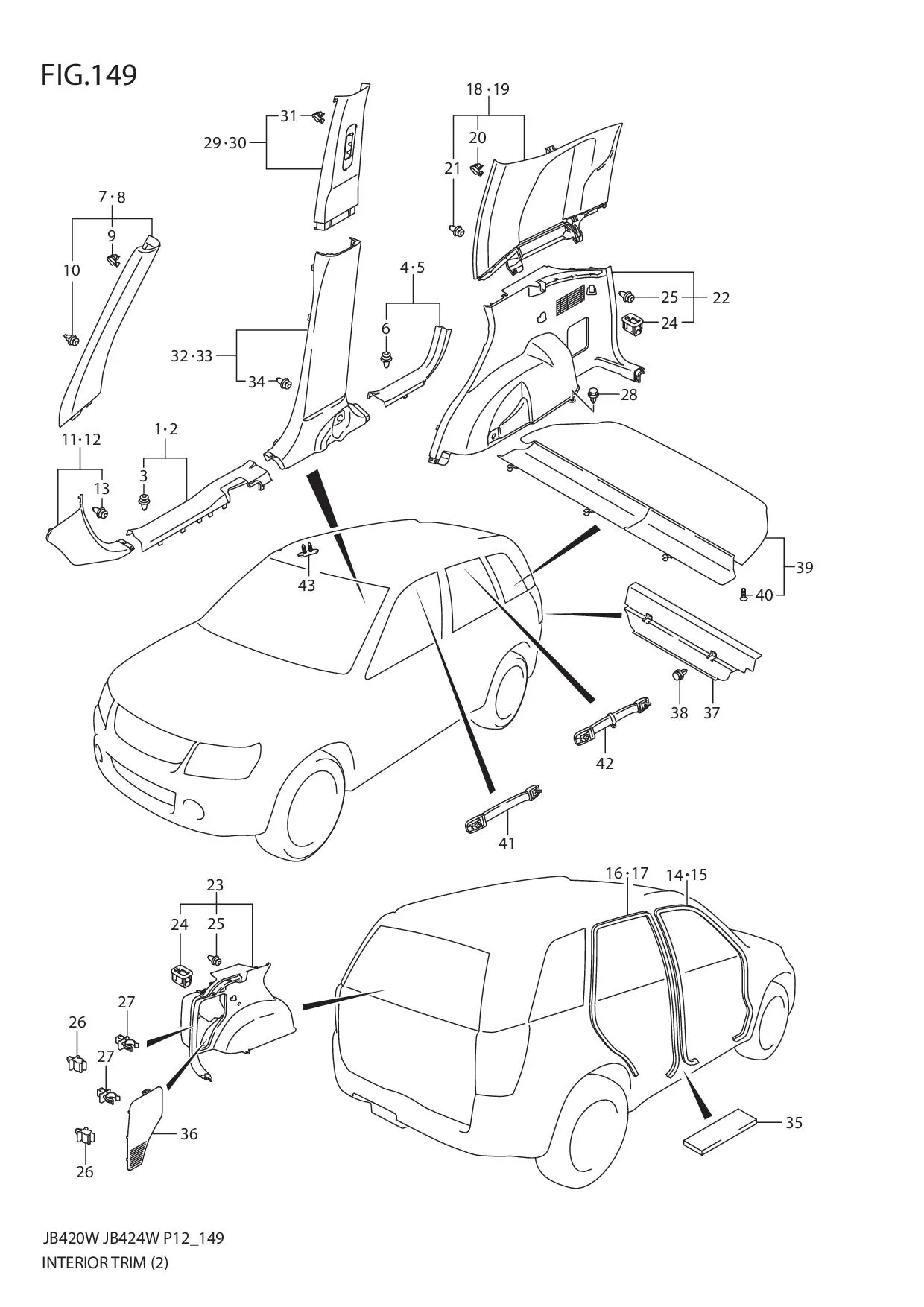

FIG.149 INTERIOR TRIM (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 76130-65J00-R8H	SCUFF, SIDE SILL FR RH (BEIGE)	1	-
1-1	DISCONTINUE SUB: 76130-65J00-5PK	SCUFF, SIDE SILL FR RH (BLACK)	1	-
2-2	76140-65J00-R8H	SCUFF, SIDE SILL FR LH (BEIGE)	1	Rp482.000
2-1	DISCONTINUE SUB: 76140-65J00-5PK	SCUFF, SIDE SILL FR LH (BLACK)	1	-
3	09409-10327-000 SUB: 09409B10312N000	•CLIP	6	Rp5.000
4-1	DISCONTINUE SUB: 76170-65J00-5PK	SCUFF, SIDE SILL RR RH (BLACK)	1	-
4-2	DISCONTINUE SUB: 76170-65J00-R8H	SCUFF, SIDE SILL RR RH (BEIGE)	1	-
5-1	76180-65J00-5PK	SCUFF, SIDE SILL RR LH (BLACK)	1	Rp478.500
5-2	76180-65J00-R8H	SCUFF, SIDE SILL RR LH (BEIGE)	1	Rp639.000
6	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
7	76240-65J01-6GS	TRIM, FR PILLAR UPPER RH (GRAY)	1	Rp896.000
8	76250-65J01-6GS	TRIM, FR PILLAR UPPER LH (GRAY)	1	Rp896.000
9	09409-07335-000	•CLIP	2	Rp17.500
10	09409-11306-000	•CLIP	2	Rp19.000
11-1	DISCONTINUE SUB: 76110-65J00-5PK	TRIM, FR PILLAR LOWER RH (BLACK)	1	-
11-2	DISCONTINUE SUB: 76110-65J00-R8H	TRIM, FR PILLAR LOWER RH (BEIGE)	1	-
12-1	DISCONTINUE SUB: 76120-65J10-5PK	TRIM, FR PILLAR LOWER LH (BLACK)	1	-
12-2	76120-65J10-R8H	TRIM, FR PILLAR LOWER LH (BEIGE)	1	Rp211.000
13	09409-10327-000 SUB: 09409B10312N000	•CLIP	2	Rp5.000
14	76311-65J02-5PK SUB: 76311-65J01-5PK	TRIM, FR DOOR OPENING RH (BLACK)	1	Rp851.500
15	76312-65J02-5PK SUB: 76312-65J01-5PK	TRIM, FR DOOR OPENING LH (BLACK)	1	Rp827.000
16	76321-65J00-5PK	TRIM, RR DOOR OPENING RH (BLACK)	1	Rp955.000
17	76322-65J00-5PK	TRIM, RR DOOR OPENING RH (BLACK)	1	Rp955.000
18	DISCONTINUE SUB: 76280-65J10-6GS	TRIM, QTR INNER UPPER RH (GRAY)	1	-
19	76290-65J10-6GS	TRIM, QTR INNER UPPER LH (GRAY)	1	Rp2.875.000
20	09409-07335-000	•CLIP	6	Rp17.500
21	09409-10327-000 SUB: 09409B10312N000	•CLIP	12	Rp5.000
22-1	DISCONTINUE SUB: 76210-65J12-5PK	TRIM, RR QTR LOWER RH (BLACK)	1	-	JB420W
22-2	76210-65J13-JY4 SUB: 76210-65J12-JY4	TRIM, RR QTR LOWER RH (BEIGE/BLACK)	1	Rp5.636.500	JB424W
23-1	76220-65J14-5PK SUB: 76220-65J12-5PK	TRIM, RR QTR LOWER LH (BLACK)	1	Rp7.073.500	JB420W
23-2	76220-65J14-R8H SUB: 76220-65J12-R8H	TRIM, RR QTR LOWER LH (BEIGE)	1	Rp9.583.500	JB424W
24-1	DISCONTINUE SUB: 76214-65J00-5PK	•LATCH (BLACK)	8	-	JB420W
24-2	DISCONTINUE SUB: 76214-65J00-R8H	•LATCH (BEIGE)	8	-	JB424W
25	09409-10327-000 SUB: 09409B10312N000	•CLIP	12	Rp5.000
26	09403-08326-000	•CLAMP	2	Rp19.500
27	09403-13307-000	•CLIP	2	Rp29.000
28-1	09409M07L01-000 SUB: 09409-07332-000	CLIP (BLACK)	4	Rp5.000
28-2	09409-07332-R8H	CLIP (BEIGE)	4	Rp32.000
29	DISCONTINUE SUB: 76260-65J00-6GS	TRIM, CTR PILLAR UPPER RH (GRAY)	1	-
30	DISCONTINUE SUB: 76270-65J00-6GS	TRIM, CTR PILLAR UPPER LH (GRAY)	1	-
31	09409-07335-000	•CLIP	2	Rp17.500
32-1	DISCONTINUE SUB: 76150-65J00-5PK	TRIM, CTR PILLAR LOWER RH (BLACK)	1	-
32-2	DISCONTINUE SUB: 76150-65J00-R8H	TRIM, CTR PILLAR LOWER RH (BEIGE)	1	-
33-2	DISCONTINUE SUB: 76160-65J00-R8H	TRIM, CTR PILLAR LOWER LH (BEIGE)	1	-
33-1	DISCONTINUE SUB: 76160-65J00-5PK	TRIM, CTR PILLAR LOWER LH (BLACK)	1	-
34	09409-10327-000 SUB: 09409B10312N000	•CLIP	4	Rp5.000
35	DISCONTINUE SUB: 76351-65J00-000	PAD, CENTER PILLAR LOWER	2	-
36-1	76231-65J00-5PK	LID, RR QTR TRIM (BLACK)	1	Rp448.000
36-2	76231-65J00-R8H	LID, RR QTR TRIM (BEIGE)	1	Rp496.500
37-1	76331-65J00-5PK	TRIM, BACK PANEL (BLACK)	1	Rp481.500
37-2	76331-65J00-R8H	TRIM, BACK PANEL (BEIGE)	1	Rp523.000
38-1	09409M07L01-000 SUB: 09409-07332-000	CLIP (BLACK)	2	Rp5.000
38-2	09409-07332-R8H	CLIP (BEIGE)	2	Rp32.000
39-1	76340-65J01-5PK	COVER, TONNEAU (BLACK)	1	Rp4.688.500	JB420W
39-2	76340-65J01-R8H	COVER, TONNEAU (BEIGE)	1	Rp4.545.500	JB424W
40	DISCONTINUE SUB: 76346-65J00-000	•SCREW, TONNEAU STRIKER	8	-
41	76410-65J00-6GS	GRIP, ASSISTANT FRONT (GRAY)	1	Rp409.000
42	76410-65J10-6GS	GRIP, ASSISTANT REAR (GRAY)	2	Rp448.000
43	76411-65J00-6GS	CAP, ROOF LINING (GRAY)	2	Rp40.500
