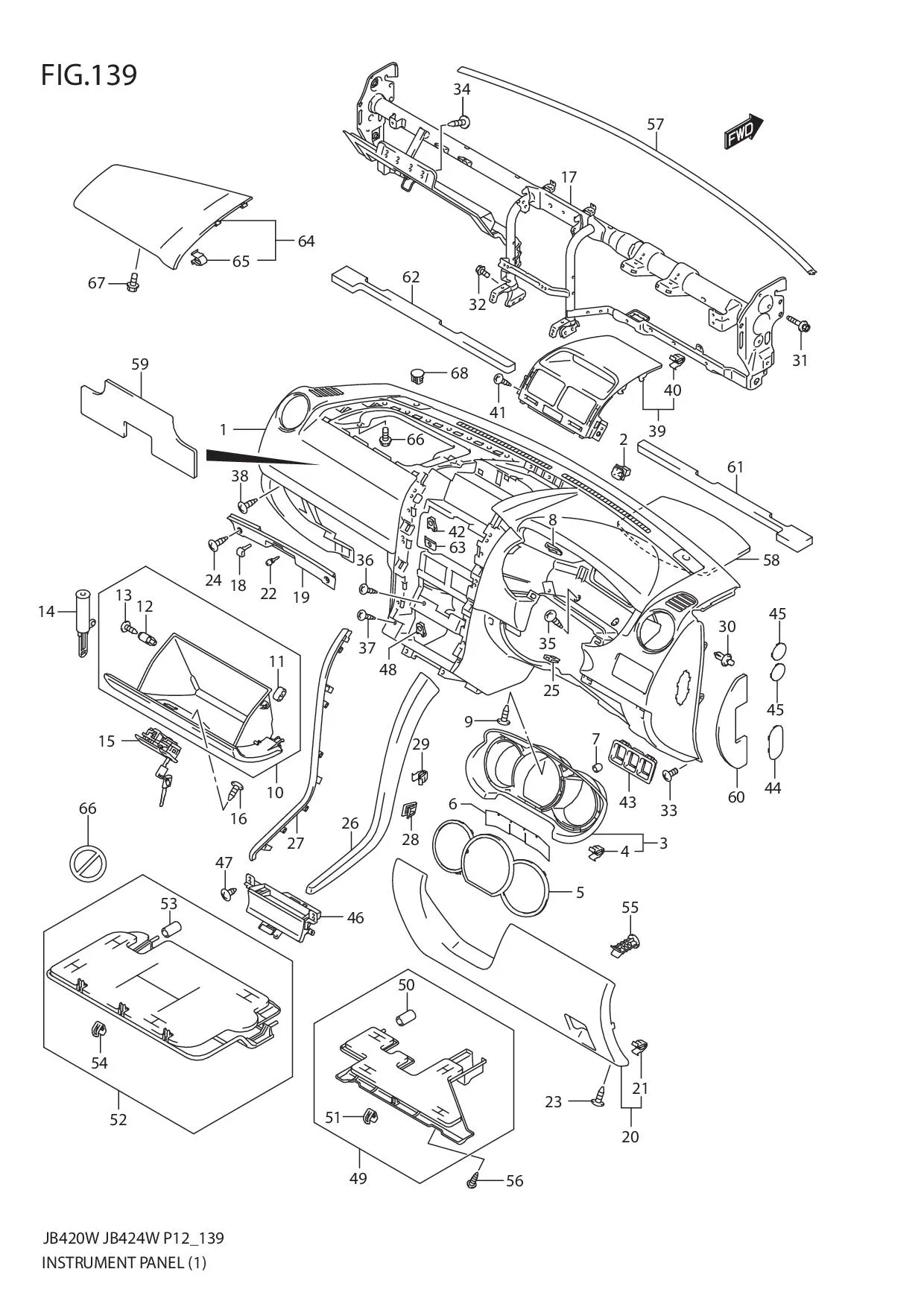

FIG.139 INSTRUMENT PANEL (JB420W)

FIG.139 INSTRUMENT PANEL (JB420W)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 73111-65J02-ZCA		 PANEL, INSTRUMENT MAIN (BLACK) 1 - STD FROM 2006-5
1-1 DISCONTINUE
SUB: 73111-65J00-ZCA		 PANEL, INSTRUMENT MAIN (BLACK) 1 - STD ->73111-65J01-ZCA USED WITH 73871-73H00-P4Z(4PCS)
1-4 DISCONTINUE
SUB: 73111-65J02-KL8		 PANEL, INSTRUMENT MAIN (BROWN/BEIGE) 1 - DX FROM 2006-5
1-3 DISCONTINUE
SUB: 73111-65J00-KL8		 PANEL, INSTRUMENT MAIN (BROWN/BEIGE) 1 - DX ->73111-65J01-KL8 USED WITH 73871-73H00-P4Z(4PCS)
2 73123-51K00-000
SUB: 73123-65J00-000		 SOCKET, PIN 5 Rp43.000
3 DISCONTINUE
SUB: 73311-65J00-000		 PANEL, INSTRUMENT CLUSTER 1 -
4 09409-08326-000
SUB: 09409B08326N000		 •CLIP 2 Rp8.000
5 DISCONTINUE
SUB: 73312-65J00-ZCP		 GARNISH, INSTRUMENT CLUSTER (GRAY) 1 -
6 DISCONTINUE
SUB: 73313-65J00-000		 BLIND STEERING COLUMN HOLE 1 -
7 DISCONTINUE
SUB: 09329-03001-000		 CUSHION 2 -
8 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
9 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
10-2 DISCONTINUE
SUB: 73410-65J01-R8H		 BOX, GLOVE (BEIGE/BLACK) 1 - DX
10-1 DISCONTINUE
SUB: 73410-65J01-5PK		 BOX, GLOVE (BLACK) 1 - STD
11 73413-63J00-000 •CUSHION 1 Rp33.000
12 73422-57L00-000
SUB: 73422-50J01-000		 •ADAPTER, DAMPER 1 Rp53.500
13 03541-0412A-000
SUB: 03541B0412AN000		 •SCREW 1 Rp3.500
14 73440-50J01-000
SUB: 73440-50J00-000		 DAMPER, GLOVE BOX 1 Rp107.000
15-1 73430-65820-5PK LOCK, GLOVE BOX (BLACK) 1 Rp845.500 STD
15-2 73430-65820-R8H LOCK, GLOVE BOX (BEIGE) 1 Rp896.500 DX
16 DISCONTINUE
SUB: 03521-0416A-000		 SCREW 2 -
17 DISCONTINUE
SUB: 73200-65J00-000		 MEMBER, STEERING SUPPORT 1 -
18 73461M54G00-000
SUB: 73461-54G00-000		 CUSHION 2 Rp5.500
19 DISCONTINUE
SUB: 73813-65J00-5PK		 COVER, GLOVE BOX LID (BLACK) 1 -
20-1 DISCONTINUE
SUB: 73811-65J00-5PK		 COVER, STEERING COLUMN HOLE (BLACK) 1 - STD
20-2 73811-65J00-R8H COVER, STEERING COLUMN HOLE (BEIGE) 1 Rp1.092.500 DX
21 09409-08326-000
SUB: 09409B08326N000		 •CLIP 3 Rp8.000
22 73413M82C00-000
SUB: 73413-82C00-000		 CUSHION 1 Rp11.500
23 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 3 Rp3.500
24 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 3 Rp3.500
25 09148-05045-000
SUB: 09148B05045N000		 NUT 3 Rp4.000
26 73860-65J00-ZCP ORNAMENT, CENTER CONSOLE RH (GRAY) 1 Rp1.269.000
27 73860-65J10-ZCP ORNAMENT, CENTER CONSOLE LH (GRAY) 1 Rp1.149.500
28 DISCONTINUE
SUB: 73822-60E00-000		 •CLIP 2 -
29 09409-08326-000
SUB: 09409B08326N000		 •CLIP 8 Rp8.000
30 DISCONTINUE
SUB: 09409-06317-000		 CLIP 4 -
31 73291-50G20-000
SUB: 73291-50G03-000		 BOLT, MEMBER SIDE 4 Rp42.500
32 01551-0816C-000 BOLT 4 Rp13.500
33 02142-0512A-000
SUB: 02142B0512AN000		 SCREW 6 Rp3.500
34 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
35 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
36 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
37 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
38 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 1 Rp3.500
39-1 73821-65J00-ZCA GARNISH, DISPLAY (BLACK) 1 Rp2.285.500 STD
39-2 73821-65J00-ZS1 GARNISH, DISPLAY (BROWN) 1 Rp1.670.000 DX
40 09409-08326-000
SUB: 09409B08326N000		 •CLIP 2 Rp8.000
41 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
42 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
43 DISCONTINUE
SUB: 73831-65J00-5PK		 BEZEL, INSTRUMENT PANEL SWITCH (BLACK) 1 -
44-2 DISCONTINUE
SUB: 73841-76J00-R8R		 CAP, INSTRUMENT SIDE (BROWN) 2 - DX TO 2006-4
44-1 DISCONTINUE
SUB: 73841-76J00-5PK		 CAP, INSTRUMENT SIDE (BLACK) 2 - STD TO 2006-4
45 73871-73H00-P4Z
SUB: 73871B73H00NP4Z		 CAP, INSTRUMENT SIDE (GRAY) 4 Rp9.000 FROM 2006-5
46-1 DISCONTINUE
SUB: 73840-65J00-BGS		 BOX, CENTER LOWER (BLACK) 1 - STD
46-2 DISCONTINUE
SUB: 73840-65J00-KT4		 BOX, CENTER LOWER (WOOD/BLACK) 1 - DX
47 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 4 Rp3.500
48 09148-05045-000
SUB: 09148B05045N000		 NUT 4 Rp4.000
49 DISCONTINUE
SUB: 73870-65J01-000		 COVER, INSTRUMENT PANEL UNDER DRIVER 1 -
50 DISCONTINUE
SUB: 09251-07003-000		 •CAP 1 -
51 09409-08326-000
SUB: 09409B08326N000		 •CLIP 1 Rp8.000
52 73880-65J00-000 COVER, INSTRUMENT PANEL UNDER ASSISTANT 1 Rp364.000
53 DISCONTINUE
SUB: 09251-07003-000		 •CAP 2 -
54 09409-08326-000
SUB: 09409B08326N000		 •CLIP 3 Rp8.000
55 DISCONTINUE
SUB: 73873-65J00-000		 ATTACHMENT, INSTRUMENT PANEL UNDER COVER 1 -
56 03141-0516B-000
SUB: 03141-0512A-000		 SCREW 2 Rp3.500
57 DISCONTINUE
SUB: 73121-65J30-000		 SILENCER INSTRUMENT PANEL TOP 1 -
58 DISCONTINUE
SUB: 73131-65J00-000		 SILENCER, INSTRUMENT PANEL UPPER 1 -
59 DISCONTINUE
SUB: 73132-65J00-000		 SILENCER, INSTRUMENT ASSISTANT 1 -
60 DISCONTINUE
SUB: 73133-65J00-000		 SILENCER, INSTRUMENT SIDE 2 -
61 DISCONTINUE
SUB: 73135B65J00N000		 SILENCER, INSTRUMENT TOP RH 1 -
62 DISCONTINUE
SUB: 73136B65J00N000		 SILENCER, INSTRUMENT TOP LH 1 -
63 09148-05045-000
SUB: 09148B05045N000		 NUT, CENTER MODULE 6 Rp4.000
64-1 DISCONTINUE
SUB: 73910-65J00-ZCA		 MODULE, PASSENGER AIR BAG (BLACK) 1 - STD
64-2 DISCONTINUE
SUB: 73910-65J00-ZS1		 MODULE, PASSENGER AIR BAG (BROWN) 1 - DX
65 09409-08332-000 •CLIP 4 Rp18.000
66 02162-0616B-000 SCREW 2 Rp15.500
67 01551-0816C-000 BOLT 2 Rp13.500
68 74523-54J00-5PK CAP, AUTO LIGHT SENSOR (BLACK) 1 Rp46.500 ASSISTANT SIDE

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
