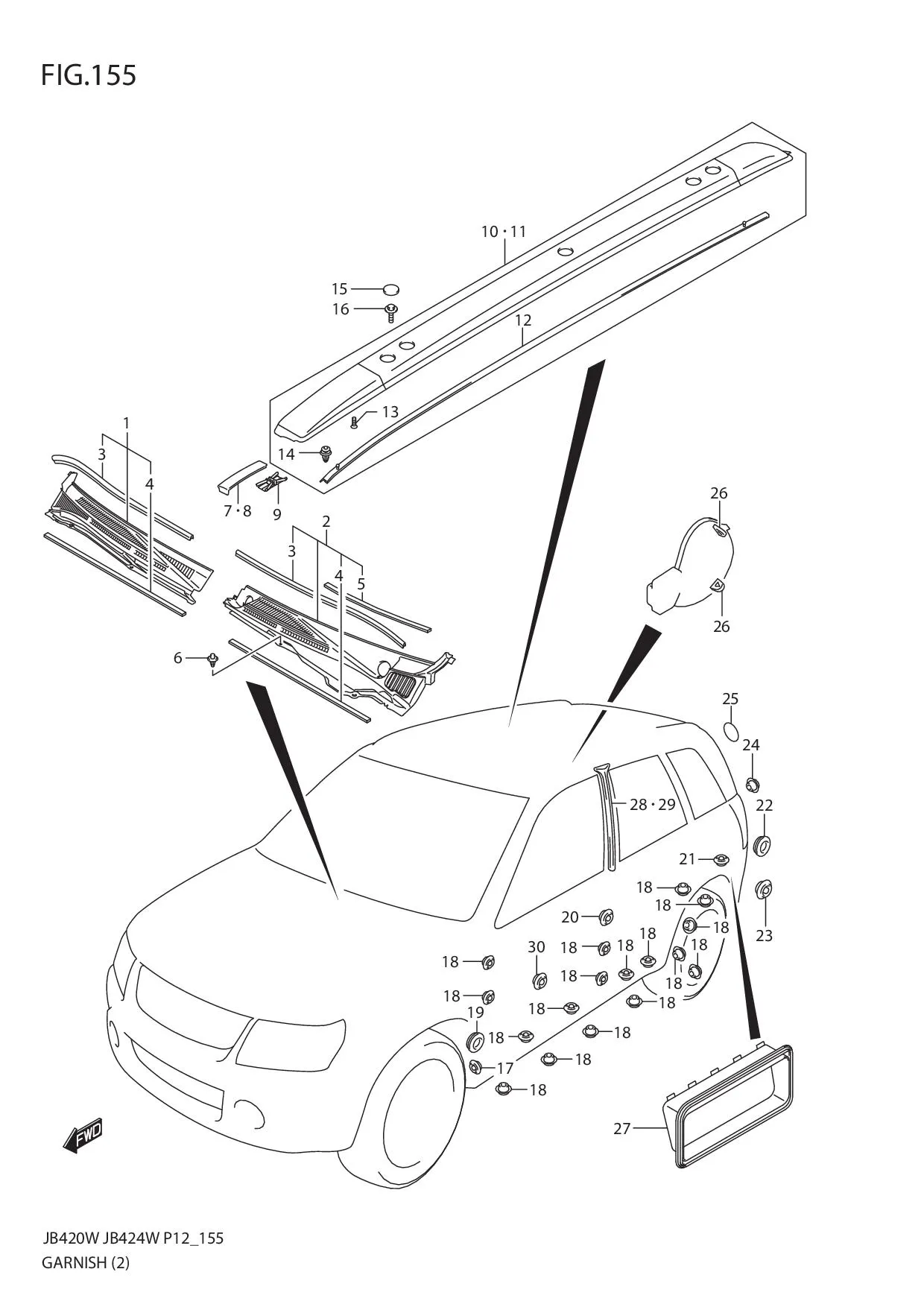

FIG.155 GARNISH (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	77320-65J10-5PK	GARNISH, COWL TOP RH (BLACK)	1	Rp956.000
2	77310-65J10-5PK	GARNISH, COWL TOP LH (BLACK)	1	Rp956.000
3	77312-65J00-000	•SEAL, FRONT HOOD REAR	2	Rp212.500
4	DISCONTINUE SUB: 77313-65J00-000	•SEAL, COWL TOP GARNISH	2	-
5	DISCONTINUE SUB: 77324-65J00-000	•SEAL, COWL TOP GARNISH REAR	1	-	RH
6	09409M07L02-5PK SUB: 09409-07308-5PK	CLIP (BLACK)	4	Rp7.500
7	77541-65J11-5PK	MOLDING, ROOF FRONT RH (BLACK)	1	Rp366.000
8	77641-65J11-5PK	MOLDING, ROOF FRONT LH (BLACK)	1	Rp366.000
9	77540-65J10-000	CLIP, ROOF DRIP MOLDING	2	Rp47.000
10	78210-65J10-AYR	RAIL, ROOF RH (BLACK)	1	Rp6.630.000
11	78220-65J10-AYR	RAIL, ROOF LH (BLACK)	1	Rp6.630.000
12	78212-65J00-000	•PROTECTOR, ROOF RAIL OTR	2	Rp296.000
13	DISCONTINUE SUB: 78213-65J00-000	•SCREW	4	-
14	78214-65J00-000	•CLIP	4	Rp90.000
15	78219-65J10-5PK	CAP, ROOF RAIL (BLACK)	10	Rp97.500
16	09116-06217-000	BOLT (6X30)	10	Rp19.000
17	09250-15012-000 SUB: 77111-63J00-000	CAP, FR PILLAR FRONT	2	Rp5.000
18	09250-15012-000 SUB: 77111-63J00-000	CAP, SIDE BODY	36	Rp5.000
19	09250-30002-000 SUB: 72999-67H00-000	CAP, FR PILLER LOWER (OD:40)	2	Rp5.500
20	09250M20031-000 SUB: 09250-20015-000	CAP (OD:28.5)	2	Rp4.500
21	09250-15012-000 SUB: 77111-63J00-000	CAP, RR FLOOR RR SIDE	2	Rp5.000
22	09250-30002-000 SUB: 72999-67H00-000	CAP, BACK PILLAR (OD:40)	2	Rp5.500
23	09250-25007-000	CAP (OD:25)	1	Rp10.500
24	09250-15012-000 SUB: 77111-63J00-000	CAP, BACK PILLAR OUTER	2	Rp5.000
25	DISCONTINUE SUB: 77191-76F00-000	FILM, BACK PANEL	1	-
26	77116M60B00-000 SUB: 77116-60B00-000	CUSHION, FUEL FILLER	2	Rp11.500
27	77330-65J00-000	OUTLET, VENTILATOR	2	Rp440.000
28	84645-65J00-000	WEATHERSTRIP, RR DR CTR PLR RH	1	Rp372.500
29	DISCONTINUE SUB: 84655-65J00-000	WEATHERSTRIP, RR DR CTR PLR LH	1	-
30	DISCONTINUE SUB: 36757-56B10-000	CAP, SIDE BODY	2	-
