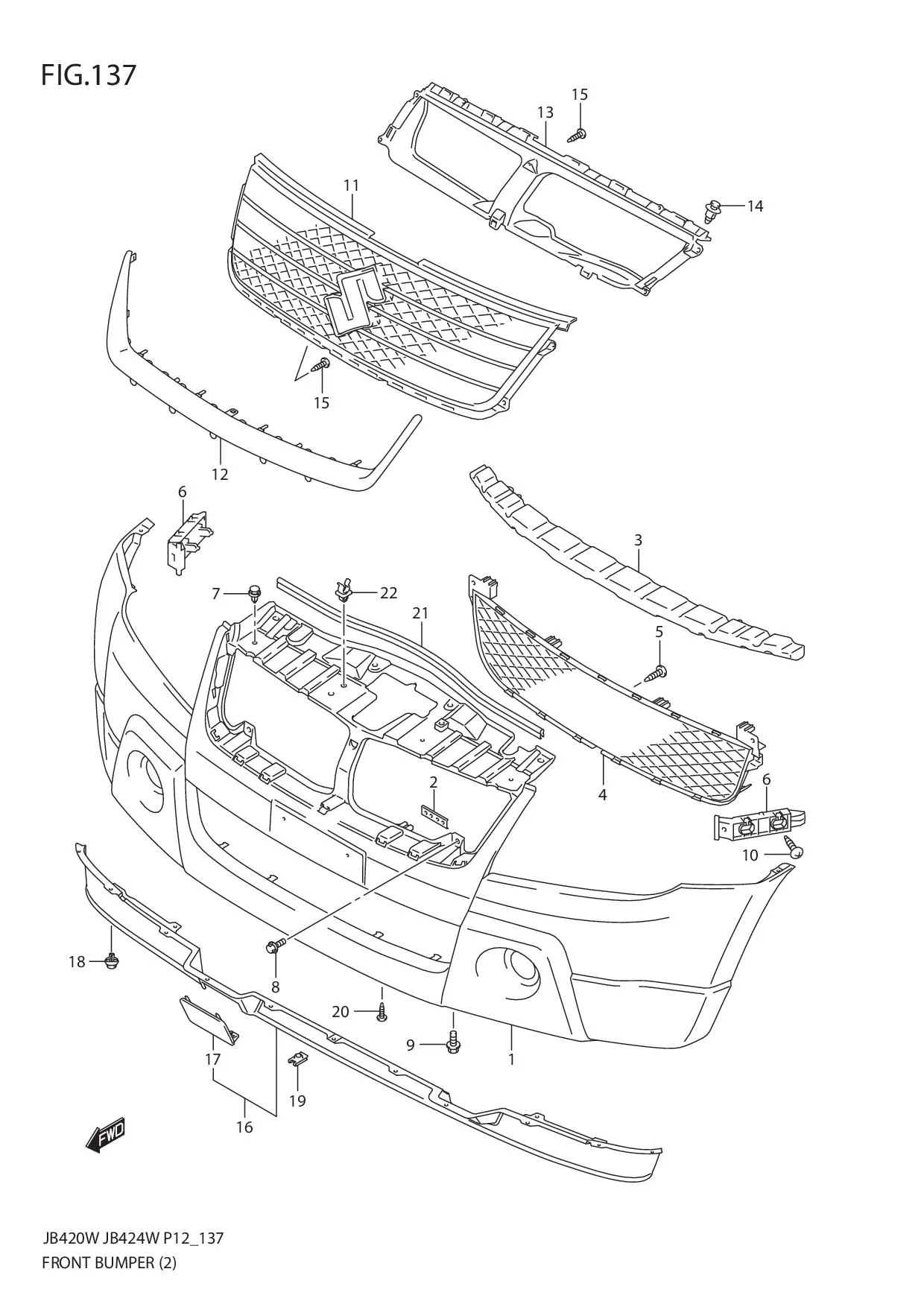

FIG.137 FRONT BUMPER (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71711-77K60-799 SUB: 71711B77K60N799	BUMPER, FRONT (PRIMARY COAT)	1	Rp3.685.000	PAINT TO MATCH
2	DISCONTINUE SUB: 71771-56B00-000	RETAINER, FR LICENSE PLATE	2	-
3	71761-77K00-000	ABSORBER, FR BUMPER RH	1	Rp380.500
4	71721-77K00-000	NET, FR BUMPER	1	Rp1.116.500
5	03541-0516A-000 SUB: 03541B0516AN000	SCREW	3	Rp3.500
6	71731-65J00-000	HOLDER, FR BUMPER SIDE	2	Rp127.000
7	09409M07L01-000 SUB: 09409-07332-000	CLIP	4	Rp5.000
8	02162-0616B-000	SCREW (6X16)	2	Rp15.500
9	02162-0616B-000	SCREW (6X16)	2	Rp15.500
10	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500
11	71741-77K00-38B	GRILLE, RADIATOR (GRAY)	1	Rp1.522.500
12	71742-77K01-0PG SUB: 71742-77K00-0PG	GARNISH, RADIATOR GRILLE (CHROME)	1	Rp1.520.000
13	71743-65J00-000	COVER, RADIATOR GRILLE	1	Rp316.000
14	09409M07L01-000 SUB: 09409-07332-000	CLIP	4	Rp5.000
15	DISCONTINUE SUB: 09132-04036-000	SCREW	9	-
16	71750-65J03-000	SKIRT, FR AIR DAM	1	Rp774.000
17	71752-65J00-000	•CAP, FR AIR DAM	1	Rp85.500
18	09409M07L01-000 SUB: 09409-07332-000	CLIP	6	Rp5.000
19	09148-05047-000 SUB: 09148B05047N000	NUT	3	Rp3.500
20	09132-05046-000	SCREW (5X12)	3	Rp13.500
21	77312-65J00-000	SEAL, FR HOOD	1	Rp212.500
22	09403-07333-000	CLAMP	2	Rp19.500
