GRAND VITARA (JB420_424)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.130 FRONT HOOD PANELFIG.131 FRONT FENDERFIG.132 FRONT BODY PANELFIG.133 FLOOR PANELFIG.134 SIDE BODY PANELFIG.135 ROOF PANELFIG.136 FRONT BUMPER (JB420W)FIG.137 FRONT BUMPER (JB424W)FIG.138 REAR BUMPERFIG.139 INSTRUMENT PANEL (JB420W)FIG.140 INSTRUMENT PANEL (JB424W)FIG.141 VENTILATORFIG.142 HEATER UNIT (JB420W)FIG.143 HEATER UNIT (JB424W)FIG.144 HEATER CONTROLFIG.145 CONSOLE BOX (JB420W)FIG.146 CONSOLE BOX (JB424W)FIG.147 FLOOR CARPETFIG.148 INTERIOR TRIM (JB420W)FIG.149 INTERIOR TRIM (JB424W)FIG.150 COVER/CAPFIG.151 FUEL LID OPENERFIG.152 ROOF LININGFIG.153 EMBLEMFIG.154 GARNISH (JB420W)FIG.155 GARNISH (JB424W)FIG.156 SPLASH GUARD (JB420W)FIG.157 SPLASH GUARD (JB424W)FIG.158 WINDSHIELD GLASSFIG.159 TIRE CARRIER (JB420W)FIG.160 TIRE CARRIER (JB424W)FIG.161 FRONT DOOR PANEL (JB420W)FIG.162 FRONT DOOR PANEL (JB424W)FIG.163 FRONT DOOR REGULATORFIG.164 FRONT DOOR LOCKFIG.165 REAR DOOR PANEL (JB420W)FIG.166 REAR DOOR PANEL (JB424W)FIG.167 REAR DOOR REGULATORFIG.168 REAR DOOR LOCKFIG.169 BACK DOOR PANELFIG.170 BACK DOOR LOCKFIG.171 MIRROR/SUNVISOR (JB420W)FIG.172 MIRROR/SUNVISOR (JB424W)FIG.173 SEAT BELT (JB420W)FIG.174 SEAT BELT (JB424W)FIG.175 FRONT SEAT (JB420W)FIG.176 FRONT SEAT (JB424W)FIG.177 REAR RH SEAT (JB420W)FIG.178 REAR RH SEAT (JB424W)FIG.179 REAR LH SEAT (JB420W)FIG.180 REAR LH SEAT (JB424W)FIG.181 FUEL TANK (JB420W)FIG.182 FUEL TANK (JB424W)FIG.183 TOOLFIG.184 AIR CON PIPING (JB420W)FIG.185 AIR CON PIPING (JB424W)FIG.186 COMPRESSOR (JB420W)FIG.187 COMPRESSOR (JB424W)

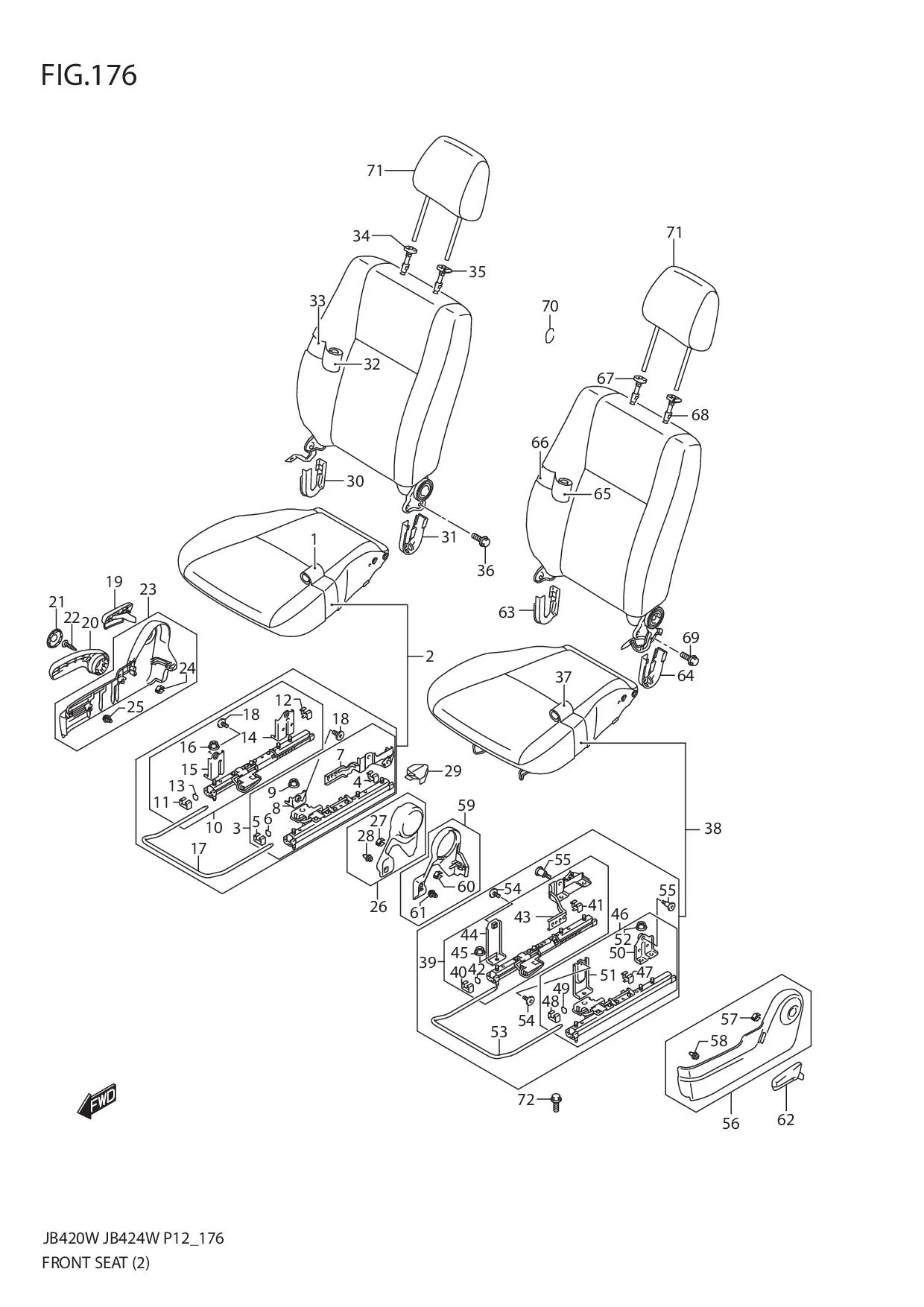

FIG.176 FRONT SEAT (JB424W)

FIG.176 FRONT SEAT (JB424W)
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 85180-65J70-BFN		 TRIM, CUSHION RH (BEIGE) 1 -
1-1 DISCONTINUE
SUB: 85180-65J70-BFK		 TRIM, CUSHION RH (BLACK) 1 -
2 DISCONTINUE
SUB: 85105-65J61-000		 CUSHION SUB ASSY, RH 1 -
3 DISCONTINUE
SUB: 86601-63J70-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
4 86652-63J01-000
SUB: 86652-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
5 86653-63J01-000
SUB: 86653-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
6 DISCONTINUE
SUB: 86654-63J00-000		 ••CAP, ADJUSTER UPPER 2 -
7 DISCONTINUE
SUB: 86712-63J70-000		 ••RISER, LIFTER REAR 1 -
8 DISCONTINUE
SUB: 86721-63J70-000		 ••RISER, LIFTER FRONT 1 -
9 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
10 DISCONTINUE
SUB: 86603-65J60-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
11 86652-63J01-000
SUB: 86652-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
12 86653-63J01-000
SUB: 86653-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
13 DISCONTINUE
SUB: 86654-63J00-000		 ••CAP, ADJUSTER UPPER 2 -
14 DISCONTINUE
SUB: 86641-65J60-000		 ••RISER, REAR 1 -
15 DISCONTINUE
SUB: 86710-65J60-000		 ••RISER, FRONT 1 -
16 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
17 DISCONTINUE
SUB: 86691-65J00-000		 •HANDLE, ADJUSTER 1 -
18 DISCONTINUE
SUB: 86717-65J00-000		 •BOLT 4 -
19-1 DISCONTINUE
SUB: 85211-65J00-5PK		 KNOB, RECLINING RH (BLACK) 1 -
19-2 85211-65J00-R8H KNOB, RECLINING RH (BEIGE) 1 Rp64.500
20-1 DISCONTINUE
SUB: 85213-65J00-5PK		 LEVER, SEAT LIFTER (BLACK) 1 -
20-2 DISCONTINUE
SUB: 85213-65J00-R8H		 LEVER, SEAT LIFTER (BEIGE) 1 -
21-2 DISCONTINUE
SUB: 85214-63J20-R8H		 CAP, LIFTER LEVER (BEIGE) 1 -
21-1 85214-63J20-5PK CAP, LIFTER LEVER (BLACK) 1 Rp50.000
22 09132-05043-000
SUB: 09132B05043N000		 SCREW (5X10) 2 Rp17.500
23-1 DISCONTINUE
SUB: 85220-65J50-5PK		 COVER, RECLINING OUTSIDE (BLACK) 1 -
23-2 DISCONTINUE
SUB: 85220-65J50-R8H		 COVER, RECLINING OUTSIDE (BEIGE) 1 -
24 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
25 09409-10313-000 •CLIP 2 Rp14.000
26-1 DISCONTINUE
SUB: 85240-65J00-5PK		 COVER, RECLINING INSIDE (BLACK) 1 -
26-2 DISCONTINUE
SUB: 85240-65J00-R8H		 COVER, RECLINING INSIDE (BEIGE) 1 -
27 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
28 09409-10313-000 •CLIP 2 Rp14.000
29 DISCONTINUE
SUB: 85243-63J70-000		 COVER, RISER INSIDE 1 -
30-1 DISCONTINUE
SUB: 85222-63J00-5PK		 COVER, BACK FRAME RH (BLACK) 1 -
30-2 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, BACK FRAME RH (BEIGE) 1 -
31-1 DISCONTINUE
SUB: 85242-63J00-5PK		 COVER, BACK FRAME LH (BLACK) 1 -
31-2 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, BACK FRAME LH (BEIGE) 1 -
32-1 DISCONTINUE
SUB: 85380-63J60-BFK		 TRIM, BACK RH (BLACK) 1 -
32-2 DISCONTINUE
SUB: 85380B63J60NBFN		 TRIM, BACK RH (BEIGE) 1 -
33 DISCONTINUE
SUB: 85305-79KG0-000		 BACK SUB ASSY, RH 1 -
34-1 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
34-2 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 -
35-1 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (GRAY) 1 -
35-2 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 -
36 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
37-2 DISCONTINUE
SUB: 85680-65J50-BFN		 TRIM, CUSHION LH (BEIGE) 1 -
37-1 DISCONTINUE
SUB: 85680-65J50-BFK		 TRIM, CUSHION LH (BLACK) 1 -
38 DISCONTINUE
SUB: 85106-65J90-000		 CUSHION SUB ASSY, FRONT LH 1 -
39 DISCONTINUE
SUB: 86602-63J50-000		 •ADJUSTER SUB ASSY, INSIDE 1 -
40 86652-63J01-000
SUB: 86652-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
41 86653-63J01-000
SUB: 86653-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
42 DISCONTINUE
SUB: 86654-63J00-000		 ••CAP, ADJUSTER UPPER 2 -
43 DISCONTINUE
SUB: 86762-63J50-000		 ••RISER, REAR 1 -
44 DISCONTINUE
SUB: 86721-63J50-000		 ••RISER, FRONT 1 -
45 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
46 DISCONTINUE
SUB: 86604-65J50-000		 •ADJUSTER SUB ASSY, OUTSIDE 1 -
47 86652-63J01-000
SUB: 86652-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
48 86653-63J01-000
SUB: 86653-63J00-000		 ••CAP, ADJUSTER LOWER 1 Rp81.500
49 DISCONTINUE
SUB: 86654-63J00-000		 ••CAP, ADJUSTER UPPER 2 -
50 DISCONTINUE
SUB: 86646-65J50-000		 ••RISER, REAR 1 -
51 DISCONTINUE
SUB: 86710-65J50-000		 ••RISER, FRONT 1 -
52 08316-1010A-000
SUB: 08316B1010AN000		 ••NUT 3 Rp3.500
53 DISCONTINUE
SUB: 86692-65J00-000		 •HANDLE, ADJUSTER 1 -
54 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 2 Rp6.000
55 01550-1035A-000
SUB: 01550B1035AN000		 •BOLT 1 Rp5.500
56-1 DISCONTINUE
SUB: 85720-65J50-5PK		 COVER, RECLINING OUTSIDE (BLACK) 1 -
56-2 DISCONTINUE
SUB: 85720-65J50-R8H		 COVER, RECLINING OUTSIDE (BEIGE) 1 -
57 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
58 09409-10313-000 •CLIP 2 Rp14.000
59-2 DISCONTINUE
SUB: 85740-65J00-R8H		 COVER, RECLINING INSIDE (BEIGE) 1 -
59-1 DISCONTINUE
SUB: 85740-65J00-5PK		 COVER, RECLINING INSIDE (BLACK) 1 -
60 09409-10308-000
SUB: 09409B10308N000		 •CLIP 1 Rp6.500
61 09409-10313-000 •CLIP 1 Rp14.000
62-1 DISCONTINUE
SUB: 85711-65J00-5PK		 KNOB, RECLINING LH (BLACK) 1 -
62-2 85711-65JA0-R8H
SUB: 85711-65J00-R8H		 KNOB, RECLINING LH (BEIGE) 1 Rp69.000
63-1 DISCONTINUE
SUB: 85222-63J00-5PK		 COVER, BACK FRAME RH (BLACK) 1 -
63-2 DISCONTINUE
SUB: 85222-63J00-R8H		 COVER, BACK FRAME RH (BEIGE) 1 -
64-1 DISCONTINUE
SUB: 85242-63J00-5PK		 COVER, BACK FRAME LH (BLACK) 1 -
64-2 DISCONTINUE
SUB: 85242-63J00-R8H		 COVER, BACK FRAME LH (BEIGE) 1 -
65-2 DISCONTINUE
SUB: 85380B63J60NBFN		 TRIM, BACK LH (BEIGE) 1 -
65-1 DISCONTINUE
SUB: 85380-63J60-BFK		 TRIM, BACK LH (BLACK) 1 -
66 DISCONTINUE
SUB: 85306-79KG0-000		 BACK SUB ASSY, FRONT LH 1 -
67-1 DISCONTINUE
SUB: 85341-63J10-P4Z		 GUIDE, HEADRESTRAINT (BLACK) 1 -
67-2 DISCONTINUE
SUB: 85341-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 -
68-1 DISCONTINUE
SUB: 85840-63J10-P4Z		 GUIDE, HEADRESTRAINT (BLACK) 1 -
68-2 DISCONTINUE
SUB: 85840-63J10-R8H		 GUIDE, HEADRESTRAINT (BEIGE) 1 -
69 01550-1016A-000
SUB: 01550B1016AN000		 BOLT 4 Rp5.500
70 09387-19001-000
SUB: 09387B19001N000		 RING, TRIM 0 Rp9.000
71-1 DISCONTINUE
SUB: 86401-65J00-T6U		 HEADRESTRAINT ASSY (BLACK) 2 -
71-2 DISCONTINUE
SUB: 86401-65J00-S1K		 HEADRESTRAINT ASSY (BEIGE) 2 -
72 09119-08097-000 BOLT 8 Rp27.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
