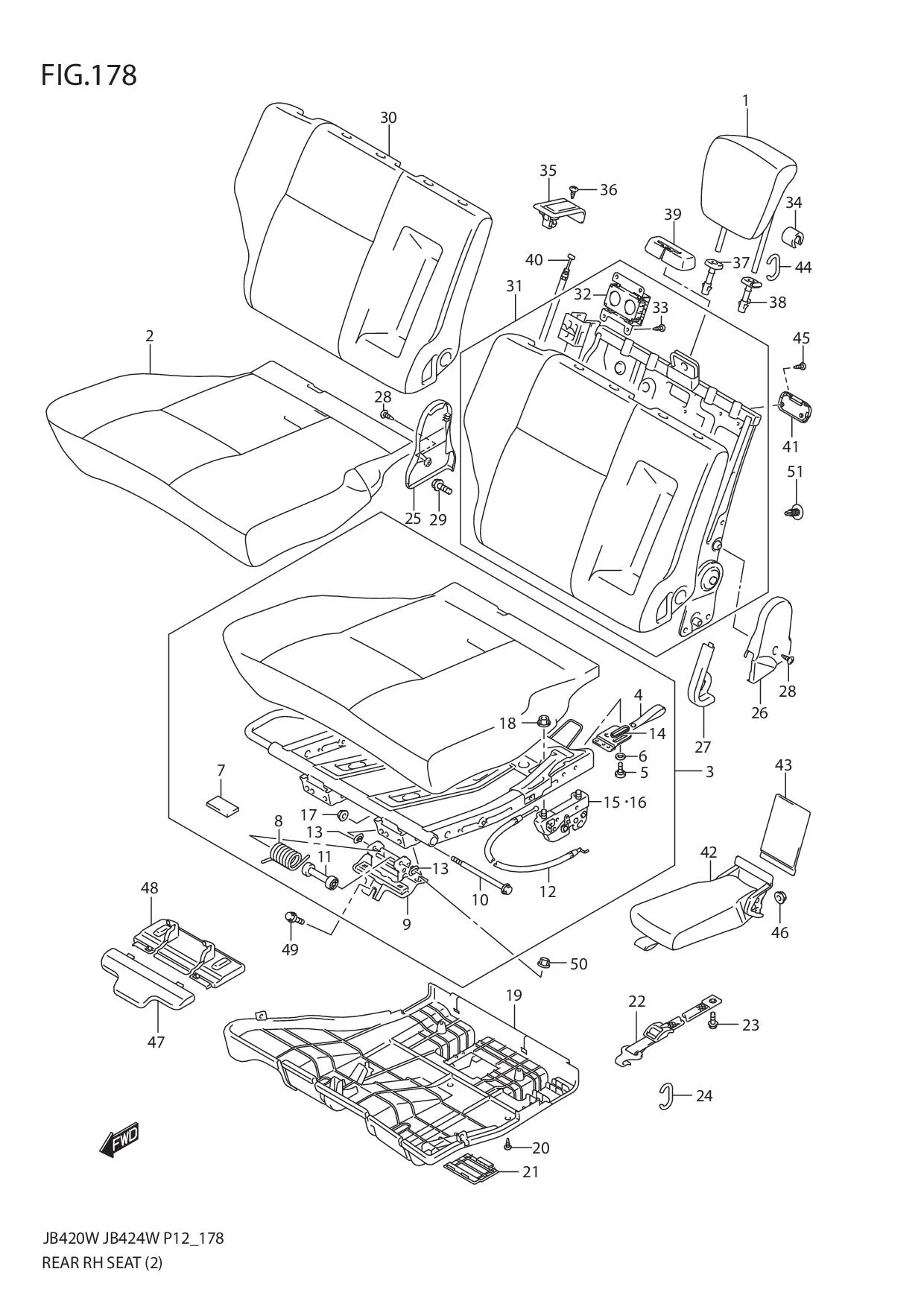

FIG.178 REAR RH SEAT (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	DISCONTINUE SUB: 86401-66J20-S1K	HEADRESTRAINT ASSY (BEIGE)	2	-
1-1	DISCONTINUE SUB: 86401-66J20-T6U	HEADRESTRAINT ASSY (BLACK)	2	-
2-2	DISCONTINUE SUB: 87180-66J01-FJN	TRIM, CUSHION RH (BEIGE)	1	-
2-1	DISCONTINUE SUB: 87180-66J01-FJM	TRIM, CUSHION RH (BLACK)	1	-
3	DISCONTINUE SUB: 87105-66J01-000	CUSHION SUB ASSY, REAR RH	1	-
4	DISCONTINUE SUB: 87141-66J00-000	•LEVER, REAR LOCK	1	-
5	DISCONTINUE SUB: 87142-66J00-000	•BOLT	1	-
6	DISCONTINUE SUB: 87143-66J00-000	•WASHER	1	-
7	DISCONTINUE SUB: 87144-66J00-000	•SILENCER	2	-
8	DISCONTINUE SUB: 87148-79K00-000	•SPRING, CUSHION LEG	2	-
9	DISCONTINUE SUB: 87150-66J00-000	•LEG, CUSHION	2	-
10	DISCONTINUE SUB: 87153-63J01-000	•BOLT	2	-
11	DISCONTINUE SUB: 87149-66J00-000	•COLLAR, SPRING	2	-
12	DISCONTINUE SUB: 87154-66J00-000	•CABLE, REAR LOCK	2	-
13	DISCONTINUE SUB: 87157-66J00-000	•BUSH, CUSHION LEG	4	-
14	DISCONTINUE SUB: 87159-66J02-000	•BUSH, LOCK LEVER	1	-
15	DISCONTINUE SUB: 87460-66J00-000	•LOCK ASSY, CUSHION INSIDE	1	-
16	DISCONTINUE SUB: 87460-66J10-000	•LOCK ASSY, CUSHION OUTSIDE	1	-
17	08316-1008A-000 SUB: 08316B1008AN000	•NUT	2	Rp3.500
18	08316-1010A-000 SUB: 08316B1010AN000	•NUT	4	Rp3.500
19-1	DISCONTINUE SUB: 87175-66J00-5PK	COVER, BOTTOM RH (BLACK)	1	-
19-2	DISCONTINUE SUB: 87175-66J00-R8H	COVER, BOTTOM RH (BEIGE)	1	-
20	03241-0510A-000	SCREW	5	Rp8.000
21-1	DISCONTINUE SUB: 87176-66J00-5PK	CAP, BOTTOM RH (BLACK)	1	-
21-2	DISCONTINUE SUB: 87176-66J00-R8H	CAP, BOTTOM RH (BEIGE)	1	-
22	DISCONTINUE SUB: 87270-66J00-000	BAND, REAR SEAT	1	-
23	03141-0616A-000	SCREW	1	Rp19.500
24	09387-19001-000 SUB: 09387B19001N000	RING	0	Rp9.000
25-1	DISCONTINUE SUB: 87221-66J00-5PK	COVER, RECLINING OUTSIDE (BLACK)	1	-
25-2	DISCONTINUE SUB: 87221-66J00-R8H	COVER, RECLINING OUTSIDE (BEIGE)	1	-
26-1	DISCONTINUE SUB: 87241-79K00-5PK	COVER, RECLINING INSIDE (BLACK)	1	-
26-2	DISCONTINUE SUB: 87241-79K00-R8H	COVER, RECLINING INSIDE (BEIGE)	1	-
27	DISCONTINUE SUB: 87242-79K00-000	PROTECTOR, RR RCLING INSIDE	1	-
28	03241-0510A-000	SCREW	2	Rp8.000
29	DISCONTINUE SUB: 01551-1225A-000	BOLT	4	-
30-2	DISCONTINUE SUB: 87380-66J00-FJN	TRIM, BACK RH (BEIGE)	1	-
30-1	DISCONTINUE SUB: 87380-66J00-FJM	TRIM, BACK RH (BLACK)	1	-
31	DISCONTINUE SUB: 87305-79K00-000	BACK SUB ASSY, RH	1	-
32	DISCONTINUE SUB: 87375-79K00-000	DAMPER, RR SEAT BACK	1	-	W/DAMPER
33	02142-0612A-000 SUB: 02142B0612AN000	SCREW	4	Rp4.000	W/DAMPER
34	DISCONTINUE SUB: 87359-66J00-000	CAP, BACK FRAME	1	-
35-1	DISCONTINUE SUB: 87290-65J00-5PK	HANDLE, RECLINING (BLACK)	1	-
35-2	DISCONTINUE SUB: 87290-65J00-R8H	HANDLE, RECLINING (BEIGE)	1	-
36	03241-0510A-000	SCREW	1	Rp8.000
37-1	DISCONTINUE SUB: 85341-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	2	-
37-2	DISCONTINUE SUB: 85341-63J10-R8H	GUIDE, HEADRESTRAINT (BEIGE)	2	-
38-1	DISCONTINUE SUB: 85840-63J10-P4Z	GUIDE, HEADRESTRAINT (GRAY)	2	-
38-2	DISCONTINUE SUB: 85840-63J10-R8H	GUIDE, HEADRESTRAINT (BEIGE)	2	-
39-1	DISCONTINUE SUB: 87227-66J00-5PK	COVER, SHOULDER ANCHOR (BLACK)	1	-
39-2	DISCONTINUE SUB: 87227-66J00-R8H	COVER, SHOULDER ANCHOR (BEIGE)	1	-
40	DISCONTINUE SUB: 87294-66J00-000	CABLE, RECLINING RELEASE	1	-
41-1	87428-65DA0-5PK	STRIKER, TONNEAU COVER (BLACK)	2	Rp78.000
41-2	DISCONTINUE SUB: 87428-65DA0-R8H	STRIKER, TONNEAU COVER (BEIGE)	2	-
42-1	DISCONTINUE SUB: 87501-66J00-V4V	ARMREST ASSY (BLACK)	1	-
42-2	DISCONTINUE SUB: 87501-66J00-V4W	ARMREST ASSY (BEIGE)	1	-
43-1	DISCONTINUE SUB: 87541-66J00-5PK	COVER, ARMREST HOLE (BLACK)	1	-
43-2	DISCONTINUE SUB: 87541-66J00-R8H	COVER, ARMREST HOLE (BEIGE)	1	-
44	09387-19001-000 SUB: 09387B19001N000	RING	2	Rp9.000
45	03241-0510A-000	SCREW	4	Rp8.000
46	08316-1008A-000 SUB: 08316B1008AN000	NUT	3	Rp3.500
47-1	87491-66J00-5PK	COVER, CUSHION HINGE (BLACK)	2	Rp150.500
47-2	87491-66J00-R8H	COVER, CUSHION HINGE (BEIGE)	2	Rp179.000
48-1	DISCONTINUE SUB: 87492-66J00-5PK	COVER, CUSHION HINGE (BLACK)	2	-
48-2	DISCONTINUE SUB: 87492-66J00-R8H	COVER, CUSHION HINGE (BEIGE)	2	-
49	01551-1020A-000	BOLT	4	Rp18.000
50	08316-1010A-000 SUB: 08316B1010AN000	NUT	2	Rp3.500
51-1	09409-10302-5PK	CLIP (BLACK)	1	Rp18.500
51-2	DISCONTINUE SUB: 09409-10302-R8H	CLIP (BEIGE)	1	-
