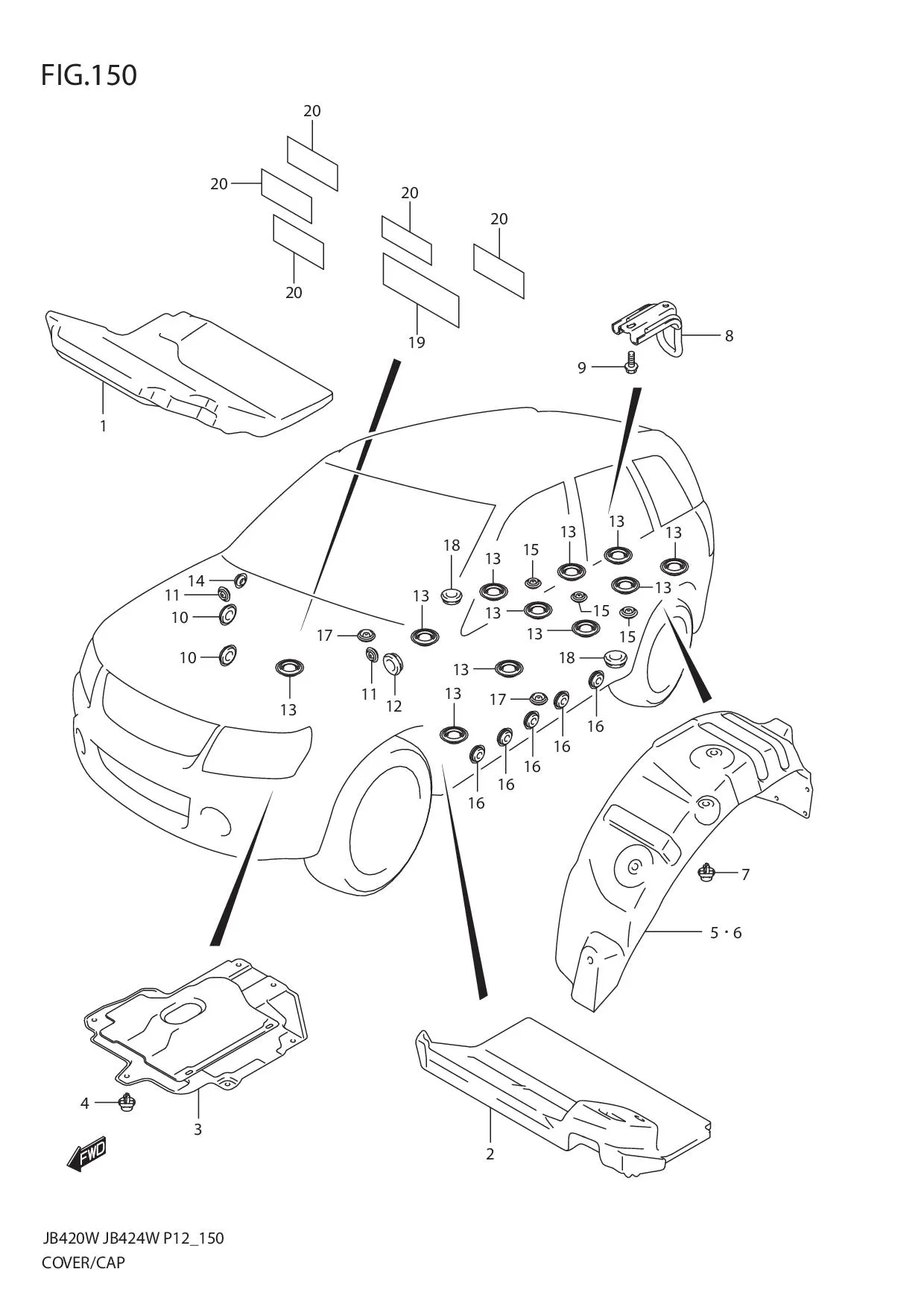

FIG.150 COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75621-65J10-000	PAD, DASH LOWER RH	1	Rp757.000
2	75671-65J10-000	PAD, DASH LOWER LH	1	Rp757.000
3	72380-65J00-000	COVER, FR UNDER	1	Rp1.344.500
4	09409M07L01-000 SUB: 09409-07332-000	CLIP	6	Rp5.000
5	75521-65J00-000	LINING, RR WHEEL HOUSING RH	1	Rp1.468.000
6	75531-65J01-000	LINING, RR WHEEL HOUSING LH	1	Rp1.468.000
7	09409M07L01-000 SUB: 09409-07332-000	CLIP	15	Rp5.000
8	DISCONTINUE SUB: 75560-65J01-000	HOOK, RR TOWING	1	-
9	DISCONTINUE SUB: 01551-1225A-000	BOLT	2	-
10	09250-25007-000	CAP, DASH SIDE	4	Rp10.500
11	09250-15012-000 SUB: 77111-63J00-000	CAP, COWL UPPER	2	Rp5.000
12	09250-30002-000 SUB: 72999-67H00-000	CAP, COWL FR	1	Rp5.500
13	75431-58J00-000	CAP, FLOOR	11	Rp40.000
14	09250-15012-000 SUB: 77111-63J00-000	CAP, DASH SIDE UPPER	2	Rp5.000
15	09250-15012-000 SUB: 77111-63J00-000	CAP, RR STRIKER	3	Rp5.000
16	09250-17002-000	CAP, SIDE SILL	10	Rp18.500
17	09250-17002-000	CAP, FLOOR (OD:25.8)	2	Rp18.500
18	09250-30002-000 SUB: 72999-67H00-000	CAP, FLOOR (OD:40)	2	Rp5.500
19	DISCONTINUE SUB: 75231-65J00-000	SHEET, DASH PANEL CENTER (120X250)	1	-
20	83971-54F00-000	SHEET, DASH PANEL (200X75)	5	Rp58.000	JB420W
