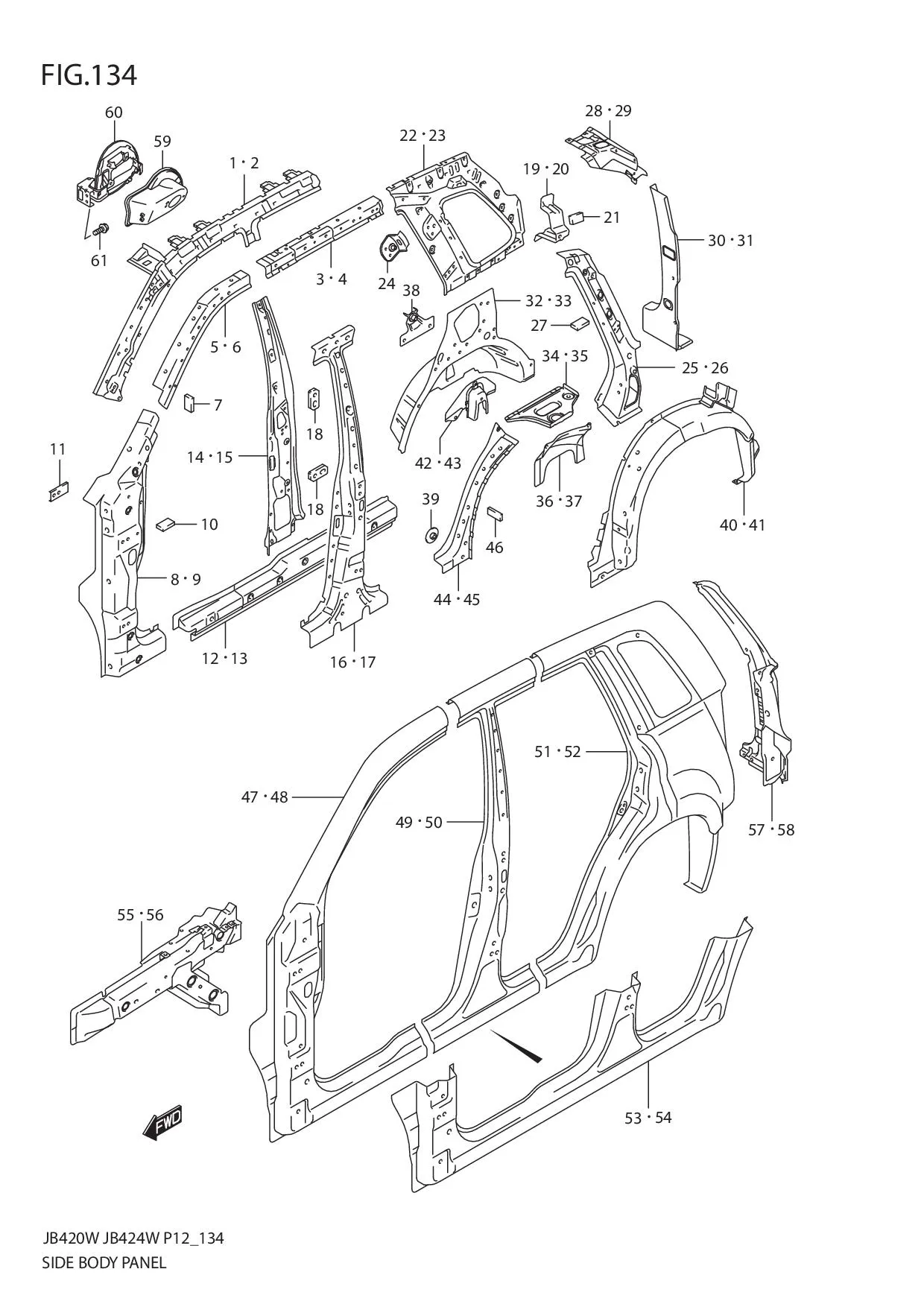

FIG.134 SIDE BODY PANEL

FIG.134 SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 63110-77K10-000		 PANEL, ROOF SIDE INNER RH 1 - TYPE 4
1-1 DISCONTINUE
SUB: 63110-65J00-000		 PANEL, ROOF SIDE INNER RH 1 - TYPE 3
2-2 DISCONTINUE
SUB: 63510-77K10-000		 PANEL, ROOF SIDE INNER LH 1 - TYPE 4
2-1 DISCONTINUE
SUB: 63510-65J00-000		 PANEL, ROOF SIDE INNER LH 1 - TYPE 3
3 DISCONTINUE
SUB: 63121-65J00-000		 REINF, ROOF SIDE RH 1 -
4 DISCONTINUE
SUB: 63521-65J00-000		 REINF, ROOF SIDE LH 1 -
5-1 DISCONTINUE
SUB: 63131-65J00-000		 REINF, FR PILLAR UPR RH 1 - TYPE 3
5-2 DISCONTINUE
SUB: 63130-77K00-000		 REINF, FR PILLAR UPR RH 1 - TYPE 4
6-1 DISCONTINUE
SUB: 63531-65J00-000		 REINF, FR PILLAR UPR LH 1 - TYPE 3
6-2 DISCONTINUE
SUB: 63530-77K00-000		 REINF, FR PILLAR UPR LH 1 - TYPE 4
7 83921-82C00-000 PAD 2 Rp51.000
8-1 DISCONTINUE
SUB: 63141-65J00-000		 REINF, FRONT PILLAR RH 1 - TYPE 3
8-2 DISCONTINUE
SUB: 63140-77K00-000		 REINF, FRONT PILLAR RH 1 - TYPE 4
9-1 DISCONTINUE
SUB: 63541-65J00-000		 REINF, FRONT PILLAR LH 1 - TYPE 3
9-2 DISCONTINUE
SUB: 63540-77K00-000		 REINF, FRONT PILLAR LH 1 - TYPE 4
10 83921-82C00-000 PAD 4 Rp51.000
11 DISCONTINUE
SUB: 63146-65J00-000		 REINF, FR DOOR HINGE UPR 4 -
12 DISCONTINUE
SUB: 63210-65J01-000		 REINF, SIDE SILL RH 1 -
13 DISCONTINUE
SUB: 63610-65J01-000		 REINF, SIDE SILL LH 1 -
14-1 DISCONTINUE
SUB: 63221-65J00-000		 PANEL, CTR PILLAR INNER RH 1 - TYPE 3
14-2 DISCONTINUE
SUB: 63221-77K00-000		 PANEL, CTR PILLAR INNER RH 1 - TYPE 4
15-1 DISCONTINUE
SUB: 63621-65J00-000		 PANEL, CTR PILLAR INNER LH 1 - TYPE 3
15-2 DISCONTINUE
SUB: 63621-77K00-000		 PANEL, CTR PILLAR INNER LH 1 - TYPE 4
16-1 DISCONTINUE
SUB: 63230-77K00-000		 REINF, CTR PILLAR RH 1 -
16-2 DISCONTINUE
SUB: 63230-77K00-000		 REINF, CTR PILLAR RH 1 - FROM 2008-6
17-1 DISCONTINUE
SUB: 63630-77K00-000		 REINF, CTR PILLAR LH 1 -
17-2 DISCONTINUE
SUB: 63630-77K00-000		 REINF, CTR PILLAR LH 1 - FROM 2008-6
18 63243-72J00-000
SUB: 63243B72J00N000		 RETAINER, RR DOOR HINGE 4 Rp9.500
19 DISCONTINUE
SUB: 63314-65J00-000		 BRACKET, QTR INNER PANEL RH 1 -
20 DISCONTINUE
SUB: 63714-65J00-000		 BRACKET, QTR INNER PANEL LH 1 -
21 83921-82C00-000 PAD 2 Rp51.000
22 DISCONTINUE
SUB: 63311-65J00-000		 PANEL, QTR INNER UPPER RH 1 -
23 DISCONTINUE
SUB: 63711-65J00-000		 PANEL, QTR INNER UPPER LH 1 -
24 DISCONTINUE
SUB: 63313-65J00-000		 REINF, RR SEAT BELT ANCHOR 2 -
25 DISCONTINUE
SUB: 63320-65J00-000		 REINF, RR PILLAR RH 1 -
26 DISCONTINUE
SUB: 63720-65J00-000		 REINF, RR PILLAR LH 1 -
27 83921-82C00-000 PAD 2 Rp51.000
28 DISCONTINUE
SUB: 63330-65J00-000		 EXTENSION, QTR INR UPR RH 1 -
29 DISCONTINUE
SUB: 63730-65J00-000		 EXTENSION, QTR INR UPR LH 1 -
30 DISCONTINUE
SUB: 63340-65J00-000		 PANEL, BACK PILLAR INR RH 1 -
31 DISCONTINUE
SUB: 63740-65J00-000		 PANEL, BACK PILLAR INR LH 1 -
32 DISCONTINUE
SUB: 63351-65J00-000		 PANEL, RR WHL HOUSE INR RH 1 -
33 DISCONTINUE
SUB: 63751-65J00-000		 PANEL, RR WHL HOUSE INR LH 1 -
34 DISCONTINUE
SUB: 63352-65J00-000		 PANEL, RR WHL HOUSE INR RR RH 1 -
35 DISCONTINUE
SUB: 63752-65J00-000		 PANEL, RR WHL HOUSE INR RR LH 1 -
36-1 DISCONTINUE
SUB: 63353-77K00-000		 REINF, RR WHL HOUSE INR RH 1 -
36-2 DISCONTINUE
SUB: 63353-77K00-000		 REINF, RR WHL HOUSE INR RH 1 - FROM 2008-6
37-1 DISCONTINUE
SUB: 63753-77K00-000		 REINF, RR WHL HOUSE INR LH 1 -
37-2 DISCONTINUE
SUB: 63753-77K00-000		 REINF, RR WHL HOUSE INR LH 1 - FROM 2008-6
38 DISCONTINUE
SUB: 63354-65J00-000		 BRACKET, RR SEAT BELT RETRACTOR 2 -
39 DISCONTINUE
SUB: 63355-65J00-000		 REINF, SEAT BELT ANCHORAGE LWR 2 -
40-1 DISCONTINUE
SUB: 63360-65J00-000		 PANEL, RR WHL HOUSE OTR RH 1 - ->63360-65J01 USED WITH 77111-63J00
40-3 DISCONTINUE
SUB: 63360-65J10-000		 PANEL, RR WHL HOUSE OTR RH 1 - FROM 2008-6
40-2 DISCONTINUE
SUB: 63360-65J01-000		 PANEL, RR WHL HOUSE OTR RH 1 - FROM 2007-4
41-1 DISCONTINUE
SUB: 63760-65J01-000		 PANEL, RR WHL HOUSE OTR LH 1 - ->63760-65J10 USED WITH 77111-63J00 TYPE 3
41-2 DISCONTINUE
SUB: 63760-65J10-000		 PANEL, RR WHL HOUSE OTR LH 1 - FROM 2007-4 TYPE 3
41-3 DISCONTINUE
SUB: 63760-77K00-000		 PANEL, RR WHL HOUSE OTR LH 1 - TYPE 4
42 DISCONTINUE
SUB: 63370-65J00-000		 BRACKET, RR SHOCK ABSORBER RH 1 -
43 DISCONTINUE
SUB: 63770-65J00-000		 BRACKET, RR SHOCK ABSORBER LH 1 -
44 DISCONTINUE
SUB: 63322-65J00-000		 REINF, RR PILLAR LWR RH 1 -
45 DISCONTINUE
SUB: 63722-65J00-000		 REINF, RR PILLAR LWR LH 1 -
46 83921-82C00-000 PAD 2 Rp51.000
47 DISCONTINUE
SUB: 64111-65J01-P11		 PANEL, A-PILLAR RH 1 -
48 DISCONTINUE
SUB: 64511-65J01-P11		 PANEL, A-PILLAR LH 1 -
49-1 DISCONTINUE
SUB: 64111-65J00-P21		 PANEL, B-PILLAR RH 1 - ->64111-65J01-P21 USED WITH 36757-56B10
49-2 DISCONTINUE
SUB: 64111-65J01-P21		 PANEL, B-PILLAR RH 1 - FROM 2008-5
50-1 DISCONTINUE
SUB: 64511-65J00-P21		 PANEL, B-PILLAR LH 1 - ->64511-65J01-P21 USED WITH 36757-56B10
50-2 DISCONTINUE
SUB: 64511-65J01-P21		 PANEL, B-PILLAR LH 1 - FROM 2008-5
51 64111-65J01-P31 PANEL, QUARTER RH 1 Rp5.001.500
52 64511-65J01-P31 PANEL, QUARTER LH 1 Rp5.001.500
53 64111-65J01-P41 PANEL, SIDE SILL RH 1 Rp4.158.500
54 64511-65J01-P41 PANEL, SIDE SILL LH 1 Rp4.158.500
55 DISCONTINUE
SUB: 64120-77K00-000		 MEMBER, FR BODY SIDE RH 1 -
56 DISCONTINUE
SUB: 64520-77K00-000		 MEMBER, FR BODY SIDE LH 1 -
57 64410-65J01-000 PANEL, BACK PILLAR OTR RH 1 Rp2.288.000
58 DISCONTINUE
SUB: 64810-77K00-000		 PANEL, BACK PILLAR OTR LH 1 -
59 DISCONTINUE
SUB: 64311-65J00-000		 BOX, FUEL FILLER 1 -
60 64320-65J12-000 PANEL, FUEL FILLER DOOR 1 Rp807.000
61 09111-06086-000 BOLT 2 Rp16.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
