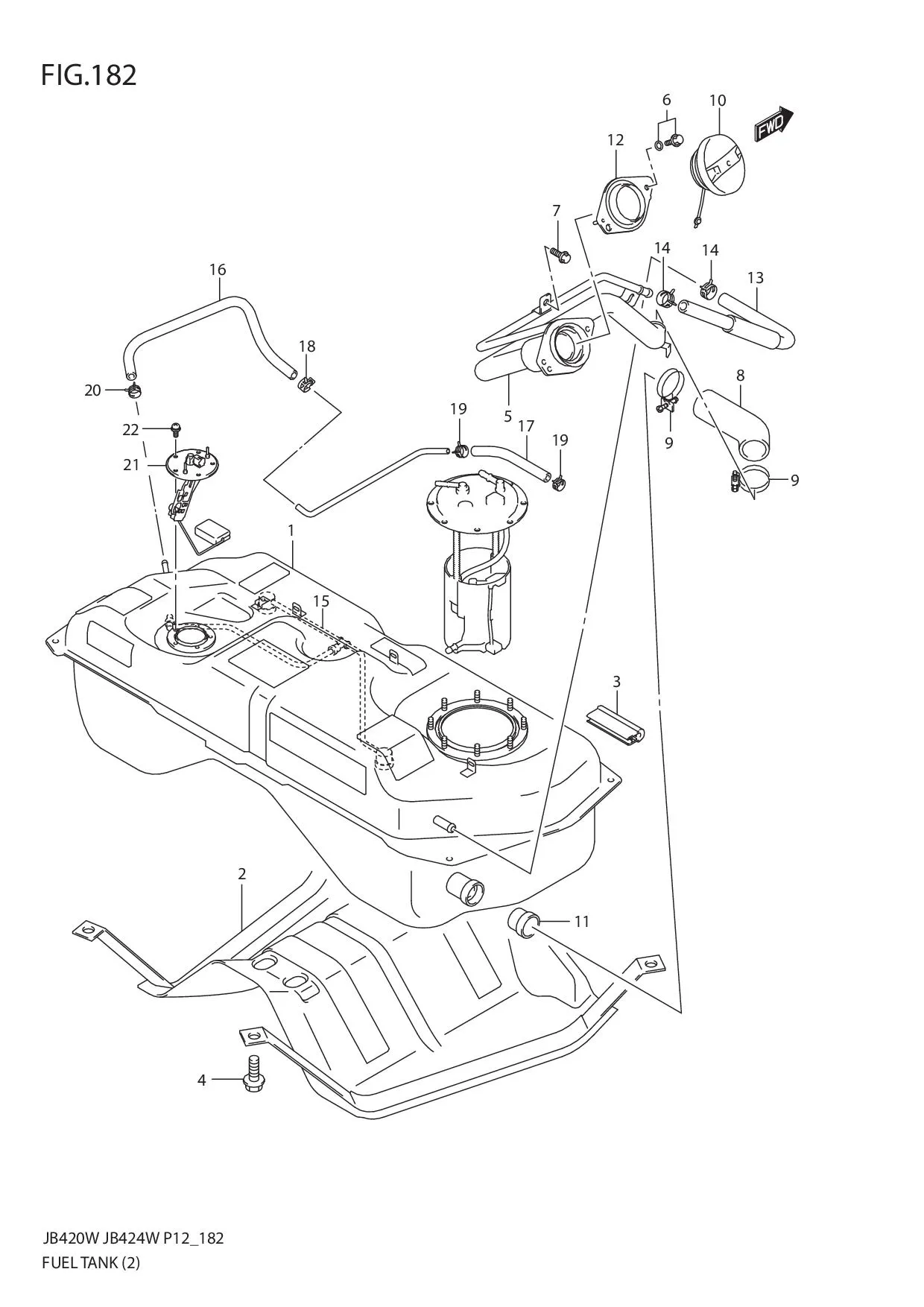

FIG.182 FUEL TANK (JB424W)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 89101-77820-000	TANK ASSY, FUEL	1	-
2	DISCONTINUE SUB: 89190-77K00-000	PROTECTOR, FUEL TANK	1	-
3	DISCONTINUE SUB: 89445-60G00-000	PROTECTOR, FUEL TANK FLANGE	2	-
4	09118-10078-000 SUB: 09118-10073-000	BOLT (10X30)	4	Rp19.000
5	DISCONTINUE SUB: 89201-65J11-000	NECK, FUEL FILLER	1	-
6	09116M05014-000 SUB: 09116-05014-000	BOLT (5X20)	2	Rp5.500
7	09103-06265-000	BOLT (6X12)	1	Rp21.500
8	89241-65J00-000	HOSE, FUEL TANK FILLER	1	Rp224.000
9	09400M45L01-000 SUB: 09400-45311-000	CLAMP	2	Rp32.500
10	89260-77K01-000 SUB: 89260-77K00-000	CAP ASSY, FUEL FILLER	1	Rp379.500
11	89270M75F10-000 SUB: 89270-75F00-000	VALVE, FUEL TANK INLET	1	Rp51.500
12	89285M58J00-000 SUB: 89285-58J00-000	PACKING, FUEL FILLER	1	Rp13.500
13	DISCONTINUE SUB: 89290-65J00-000	HOSE, FUEL TANK BREATHER	1	-
14	09401-16403-000	CLIP	2	Rp16.500
15	DISCONTINUE SUB: 89401-65J00-000	VALVE ASSY, FUEL EVAP	1	-
16	DISCONTINUE SUB: 89442-67J00-000	HOSE, EVAP	1	-
17	09355-56128-600 SUB: 09355-54128-600	HOSE (5.4X12.2X600)	1	Rp94.000	L:600->120
18	09401-10409-000 SUB: 09401-11415-000	CLIP	1	Rp7.500
19	09401-10409-000 SUB: 09401-11415-000	CLIP	2	Rp7.500
20	09401-12405-000 SUB: 09401-12404-000	CLIP	1	Rp16.500
21	34810-65J00-000	GAUGE ASSY, FUEL LEVEL	1	Rp901.500
22	DISCONTINUE SUB: 09136-05045-000	SCREW (5X10)	5	-
