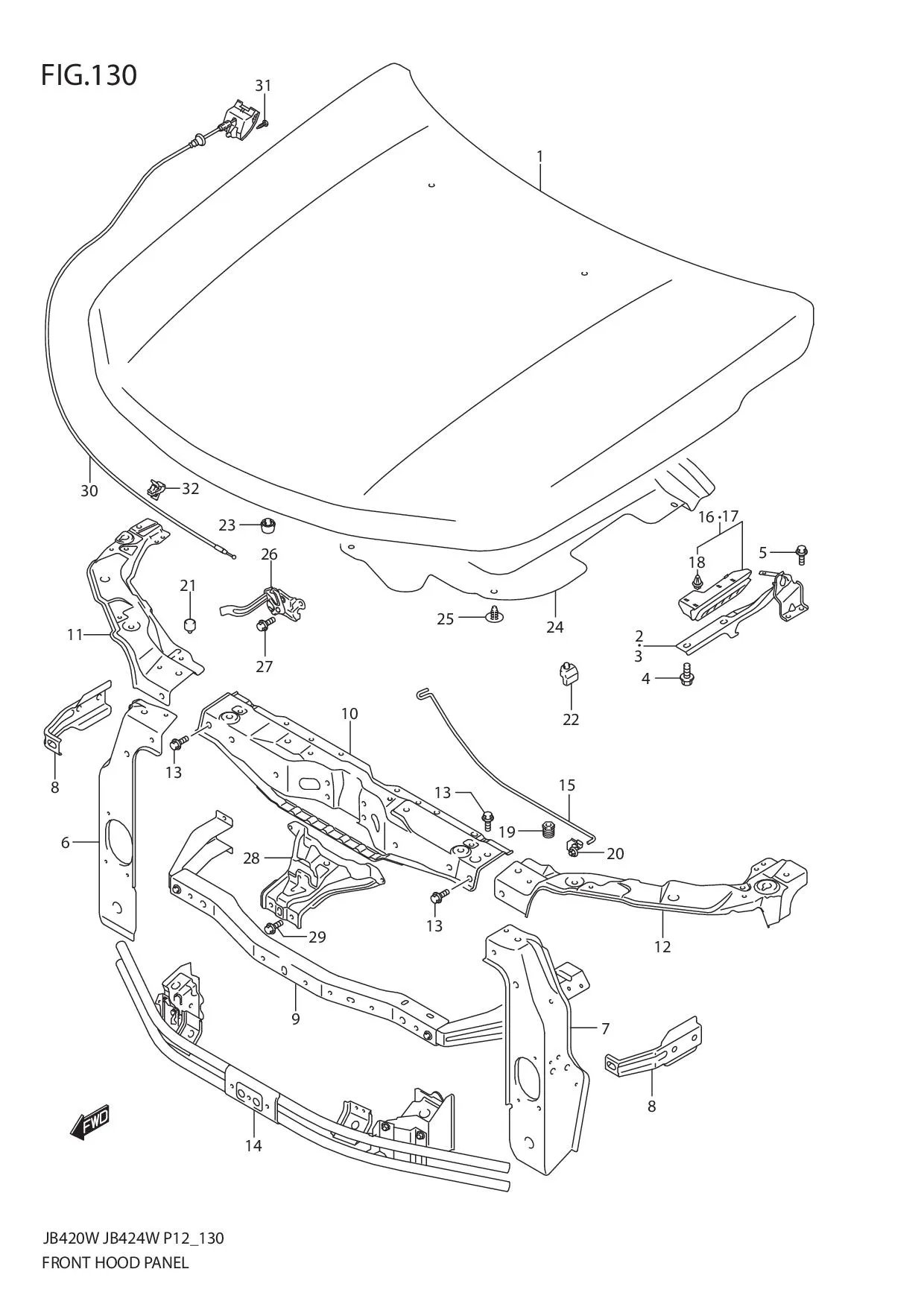

FIG.130 FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57300-65811-000 SUB: 57300-65810-000	PANEL SET, FR HOOD	1	Rp8.608.500
2	57410-65J03-000 SUB: 57410-65J02-000	HINGE, FR HOOD RH	1	Rp444.000
3	57420-65J03-000 SUB: 57420-65J02-000	HINGE, FR HOOD LH	1	Rp473.500
4	01551-0816C-000	BOLT	4	Rp13.500
5	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
6-1	58110-65J00-000	BRACE, LAMP SUPPORT RH	1	Rp1.219.500	TYPE 3
6-2	58110-77K01-000 SUB: 58110-77K00-000	BRACE, LAMP SUPPORT RH	1	Rp940.000	TYPE 4
7-1	58160-65J00-000	BRACE, LAMP SUPPORT LH	1	Rp1.225.000	TYPE 3
7-2	DISCONTINUE SUB: 58160-77K00-000	BRACE, LAMP SUPPORT LH	1	-	TYPE 4
8	58121-65J00-000	BRACKET, HEAD LAMP	2	Rp216.500
9	58220-65J00-000	MEMBER, FRONT UPPER	1	Rp680.500
10	58230-65J00-000	MEMBER, HOOD LOCK	1	Rp988.000
11	58241-65J01-000	MEMBER, HEAD LAMP UPR RH	1	Rp512.000
12	58242-65J01-000	MEMBER, HEAD LAMP UPR LH	1	Rp550.000
13	DISCONTINUE SUB: 01550B0612AN000	BOLT	4	-
14-1	58260-65J00-000	MEMBER, FRONT BUMPER	1	Rp3.943.000	TYPE 3
14-2	58260-77K00-000	MEMBER, FRONT BUMPER	1	Rp3.194.500	TYPE 4
15	72442-65J00-000	STAY, FRONT HOOD	1	Rp230.000
16	72410-65J01-000	GARNISH, FRONT HOOD RH	1	Rp126.500
17	72420-65J01-000	GARNISH, FRONT HOOD LH	1	Rp126.500
18	09409-09304-000	•CLIP	6	Rp17.000
19	72372-63J00-000 SUB: 72372B82000N000	CUSHION	2	Rp8.000
20	09209-14001-000	LINKAGE	1	Rp21.000
21	72372-50E00-000	CUSHION	2	Rp54.500
22	72372-65J00-000	CUSHION, FRONT HOOD	2	Rp115.500
23	82711-65J00-000	CUSHION, FRONT HOOD	2	Rp34.000
24	75270-65J01-000 SUB: 75270-65J00-000	SILENCER, FRONT HOOD	1	Rp1.492.000
25	09409-06309-5ES	CLIP (BLACK)	11	Rp19.000
26	82110-65J11-000	LATCH, HOOD	1	Rp495.000
27	02162-0616B-000	BOLT (6X16)	3	Rp15.500
28	82120-65J01-000	BRACE, HOOD LOCK	1	Rp906.000
29	02162-0612A-000	BOLT	4	Rp11.000
30	82160-65J02-5PK	CABLE, HOOD LATCH RELEASE (BLACK)	1	Rp356.500
31	03541-0516A-000 SUB: 03541B0516AN000	SCREW	1	Rp3.500
32	09403-08406-000	CLAMP	4	Rp22.500
